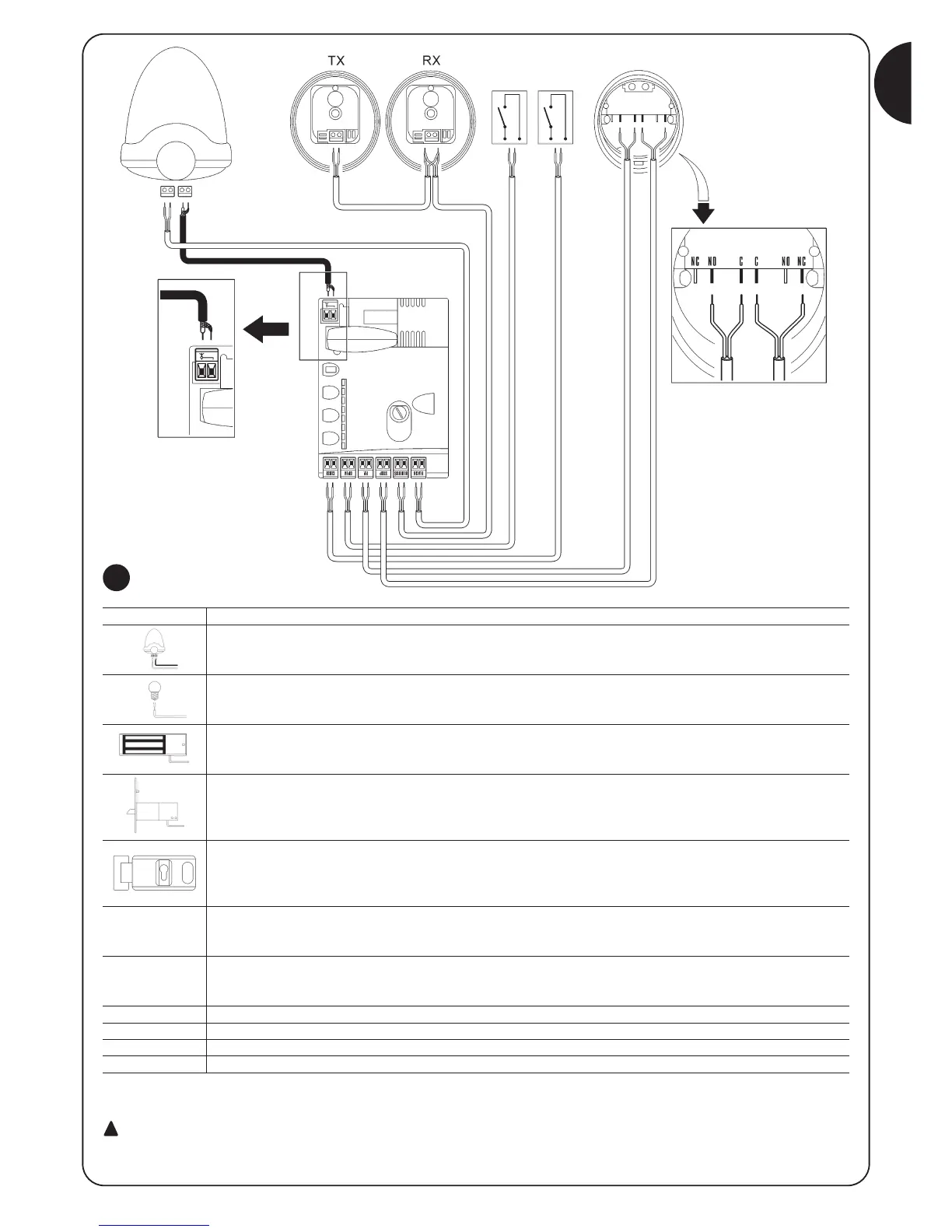

FLASH this output is programmable (see SECTION 2 of the manual) to connect one of the following devices:
Flashing light If programmed as “flashing light” the “FLASH” output can be con-nected to a NICE “LUCY B” flashing
light with a 12V 21W car type lamp.
During the manoeuvre the light flashes at an interval 0.5s on and 0.5s off
“Door open indicator” output If programmed as “door open indicator” the “FLASH” output can be connected to a
24V max 5W indicator light for the door open signal.
It can also be programmed for other functions; see SECTION 2 of the manual.
Suction cup* If programmed as “suction cup” the “FLASH” output can be connected to a 24V max 10W suction cup
(versions with electromagnet only, without electronic devices). When the door is closed, the suction cup is activated to
lock the door in place. During the opening and closing manoeuvre it is deac-tivated.
Electric block* If programmed as “electric block” the “FLASH” output can be con-nected to a max. 24V electric lock
with latch (versions with electromagnet only, without electronic devices).
During the opening manoeuvre, the electric lock is activated and remains active to free the door and perform the
manoeuvre. In the closing manoeuvre ensure that the electric block re-engages mechanically.
Electric lock* If programmed as “electric lock” the “FLASH” output can be con-nected to a 24V max 10W electric lock
with latch (versions with electromagnet only, without electronic devices).
During the opening manoeuvre, the electric lock is activated for a brief interval to free the door and perform the
manoeuvre. In the closing manoeuvre ensure that the electric lock re-engages mechanically.
BLUEBUS This terminal enables the connection of compatible devices; all are connected in parallel with just two wires conveying
the electric power and communication signals. More information on BlueBUS is available in paragraph “5.2 - Connect
the BlueBUS devices”.
STOP Input for devices that block or shut down the manoeuvre in pro-gress; by setting the input accordingly, it is possible to connect
Normally Closed type contacts, Normally Open contacts, constant resistance or optical devices. More information on STOP is
available in paragraph “5.3 - Connect devices to the STOP input”.
SS Input for devices that control movement in Step-Step mode, ena-bling the connection of Normally Open contacts.
OPEN Input for devices that control opening movement only, enabling the connection of Normally Open contacts.
CLOSE Input for devices that control closing movement only, enabling the connection of Normally Open contacts.
AERIAL input for connection of the aerial for the radio receiver (the aerial is incorporated on LUCY B)
* Only devices containing exclusively the electromagnet can be connected.
Never use devices other than those specified
