English – 9

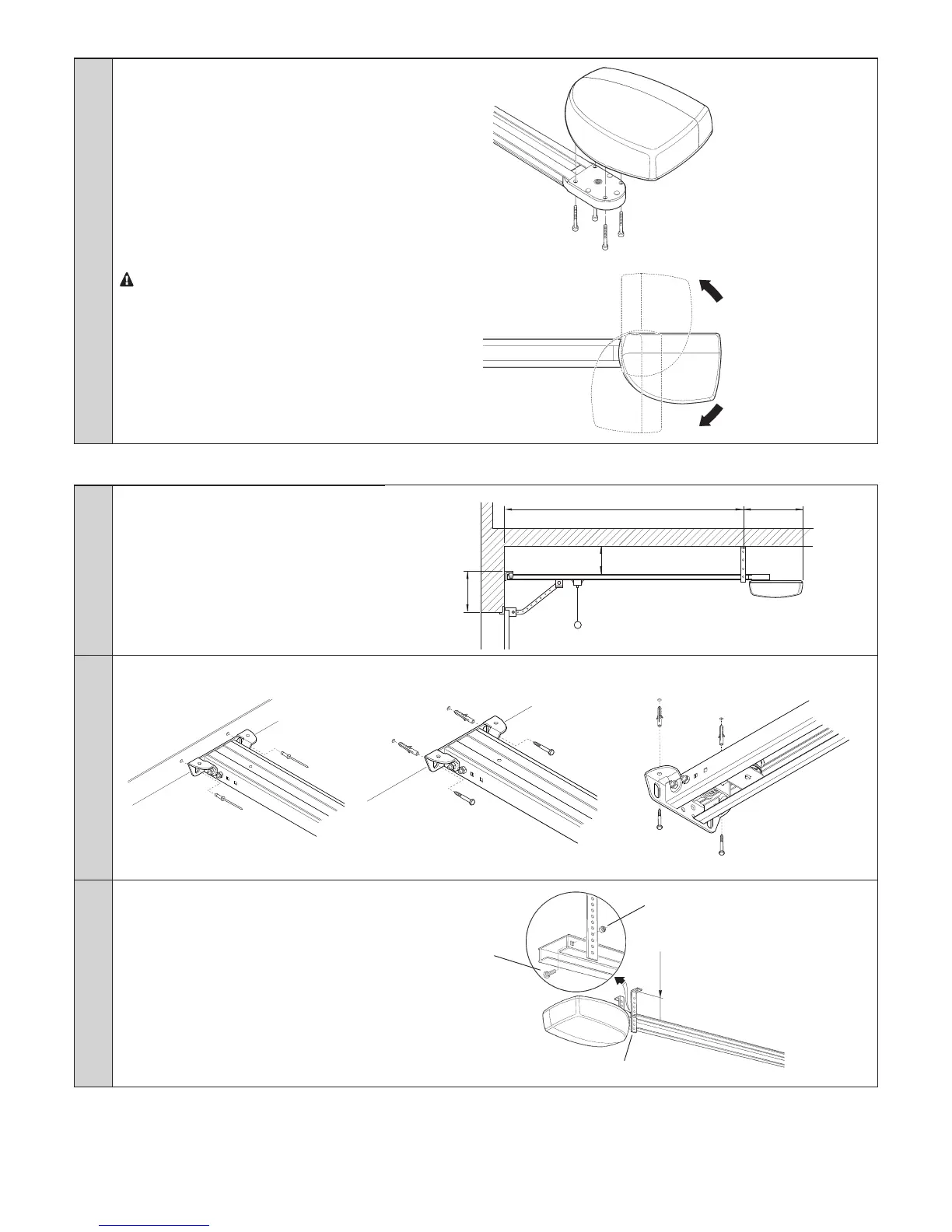

3.4 - Fastening the gearmotor to the guide
01. Join the SPIN gearmotor to the end
of the guide B and secure it with the
4 screws (V6.3x38)
B
The motor can be rotated in
three different positions
3.5 - Fastening the gearmotor to the ceiling
01. On the basis of distances A and B, mark along
the centre of the door the two xing points of
the front guide bracket. Depending on the type
of material, the front bracket can be fastened
with rivets, plugs or screws
If distances A and B are sufcient, the bracket
can be fastened directly to the ceiling
C 2970mm
B 0÷400mm
A 40 ÷400mm
D 380mm
C 2970 mm D 380 mm
B 0 – 400 mm
A 40 – 400 mm
02. After drilling the holes in the marked points, while leaving the gearmotor on the ground, lift the guide from the front part and secure it
with two screws, plugs or rivets, depending on the installation surface.
03. Secure the brackets I with the screws L
(M6x15) and nuts M (M6), selecting the hole
most suited to ensuring distance B
L
M
B
I
