Door Opening System
SWN Series
Nice SWN Series User Manual
4
of 1
of 1 rating
240 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
55
55
5
5
2
6
5
402
1
120
122,5 (dim max)
2
3
4
Ø A
B
C
5
5

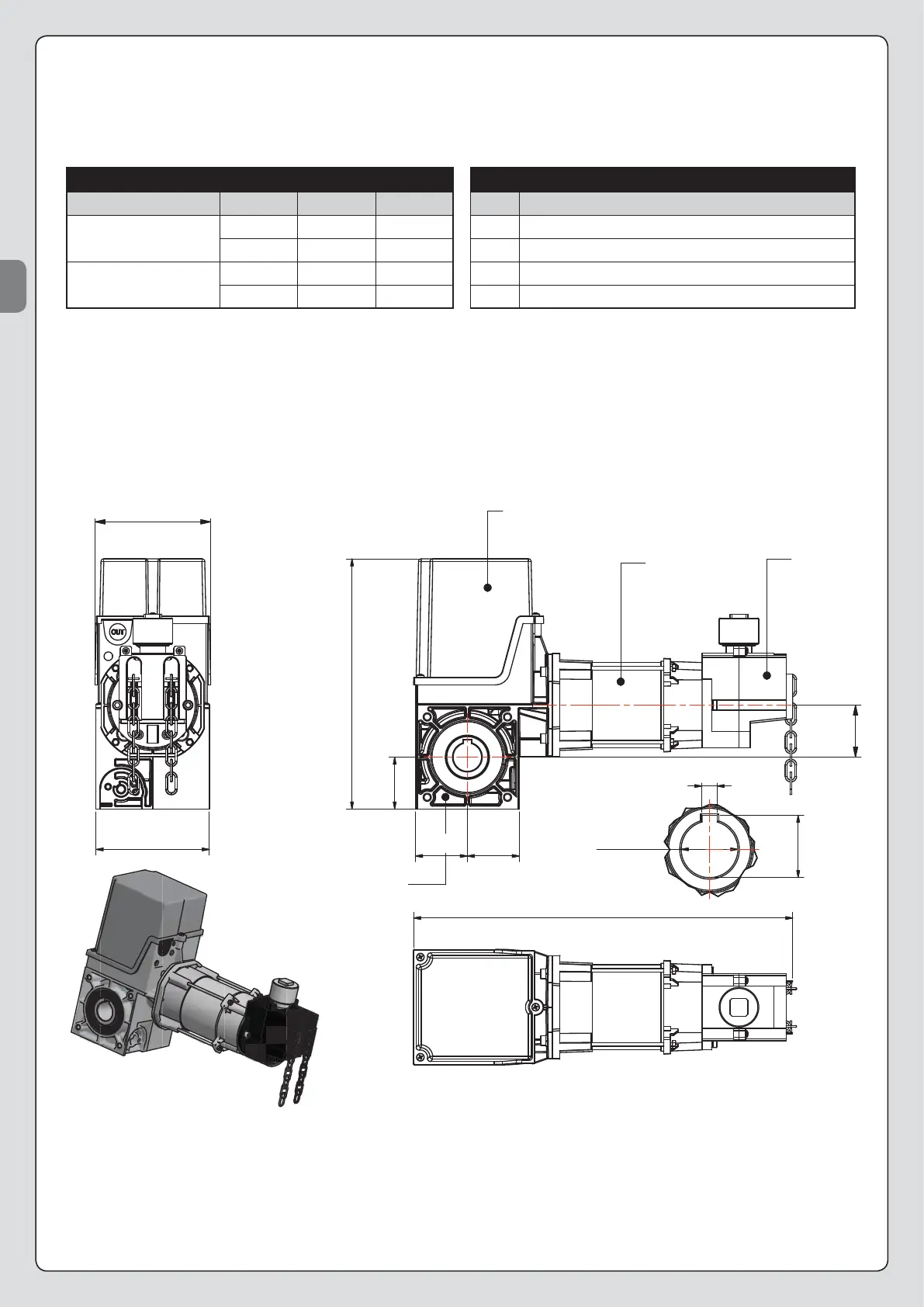

Ficha pr
oductos SDN 100 - 24 - KE / KEL, SDN 140 - 20 - KE / KEL
T
abla 1
Descripción
Ø A
B
C
SDN 100 - 24 - KE / KEL
28,4
34,7
SDN 140 - 20 - KE / KEL
28,4
34,7
T
abla 2
N.
Descripción
1
Reductor
2
,NSNQDKġBSQHBN
3
Alojamiento del tope
4
Dispositivo manual de emergencia
22
– Español
ES
109
111
Table of Contents
English
4
Table of Contents
4
Product Description and Intended Use
4
Product Application Limits
4
Installation and Electrical Connections
6
Gear Motor Installation
6
Electrical Connections
9
Emergency Manual Device Chain Length Adjustment
13
Mechanical Limit Stop Adjustment
14
Mechanical Limit Stop Connections
15
Testing and Commissioning
17
Testing
17
Commissioning
17
Static Braking Torque
17
Product Disposal
18
Basic Troubleshooting
18
Technical Specifications
18
Product Data Sheets
19
User Manual (to be Consigned to the End User)
31
Italiano
34
Installazione E Collegamenti Elettrici
36
Installazione Motoriduttore
36
Approfondimenti
47
Collaudo E Messa in Servizio
47
Caratteristiche Tecniche
48
Cosa Fare Se
48
Smaltimento del Prodotto
48
Manuale Per L'uso
59
Español
90
3 Instalación y Conexiones Eléctricas
92
Instalación del Motorreductor
92
Dispositivo Manual de Emergencia con Manivela (KU)
95
Dispositivo Manual de Emergencia con Cadena Ligera (KE - KEL)
96
Regulación del Tope Mecánico
100
6 Eliminación del Producto
104
7 Qué Hacer si
104
8 Características Técnicas
104
Deutsch
118
3 Installation und Elektrische Anschlüsse
120
Installation des Antriebs
120
Elektrische Anschlüsse
123
Manuelle Notbedienung mit Handkurbel (KU)
123
Manuelle Notbedienung mit Leichter Kette (KE - KEL)
124
Manuelle Notbedienung mit Kette (KE 2)
125
Änderung der Kettenlänge der Manuellen Notbedienung
127
Einstellung Mechanischer Endschalter
128
Anschlüsse Mechanischer Endschalter
129
Anschlüsse Elektronischer Endschalter
130
4 Abnahme und Inbetriebnahme
131
Abnahmeprüfung
131
Inbetriebnahme
131
5 Weitere Informationen
131
Statisches Haltemoment
131
6 Entsorgung des Geräts
132
7 Was Tun, wenn
132
8 Technische Daten
132
Bedienungsanleitung (dem Endbenutzer zu Übergeben)
143
4
