Nice Toona TO7024 Instructions And Warnings For Installation And Use

EN
English – 5
Toona series 7
Type electromechanical gear motor for gates or doors with leaf opening
Power input 24 Vdc
Maximum absorption 5 A
Nominal absorption 2.5 A
Maximum absorbed power 120 W
Nominal absorbed power 60 W
Protection grade IP 44
Travel 584 mm
Speed loadless 0.013 m/sec
Speed loaded 0.011 m/sec
Maximum force 2700 N
Nominal force 1400 N
Operating temperature -20 °C to +50 °C
Cycles/h at nominal force 41
Durability estimated between 80,000 and 250,000 cycles of manoeuvres according to the conditions set out in Table 2
Insulation class F
Dimensions (mm) 1200 x 128 x 150 h
Weight 15 Kg
TO7024

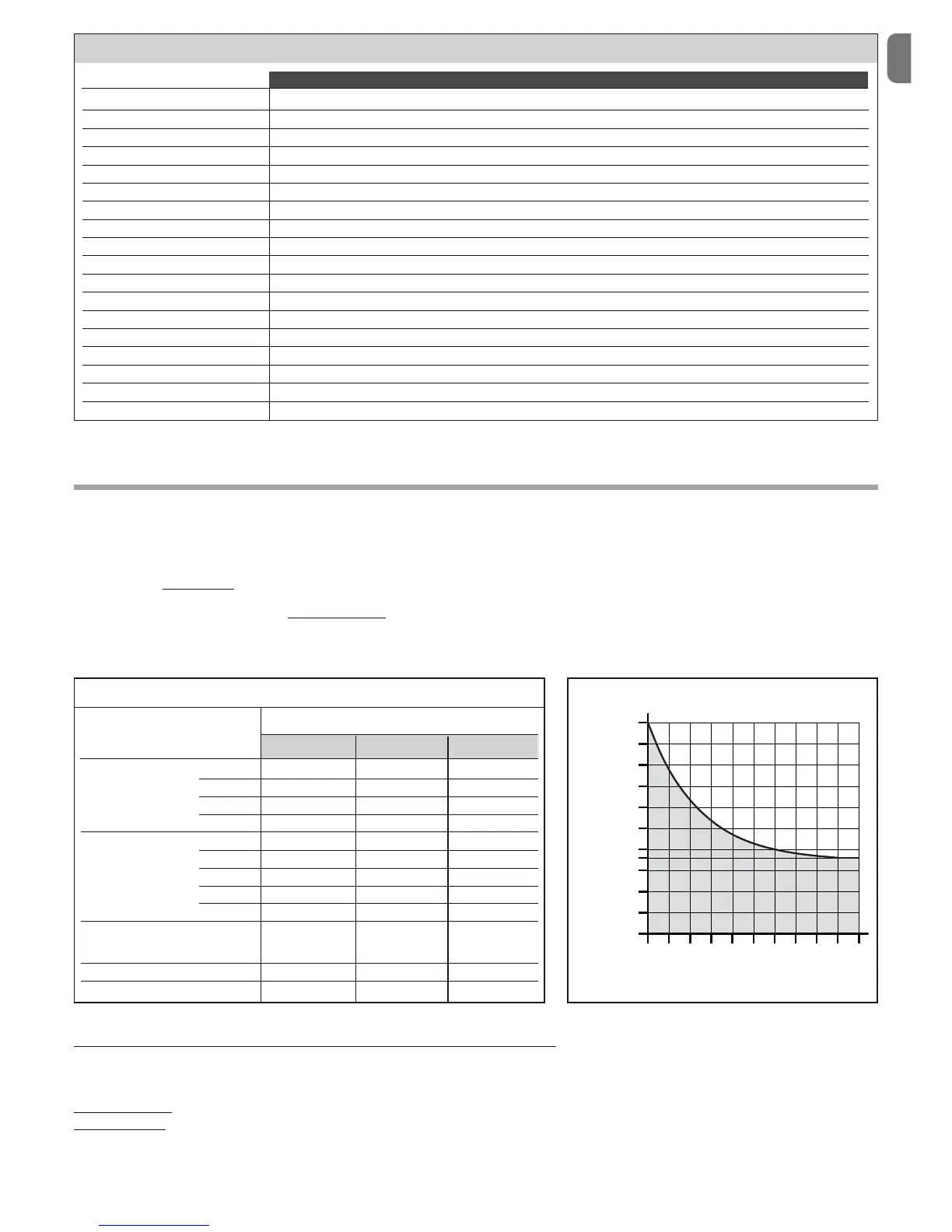

Durability of the product
Durability is the average economic life of the product. The value of durability is strongly influenced by the demand index of the manoeuvres performed by the
automatism: that is the sum of all the factors which contribute to the wear of the product (see Table 2).
To establish the probable durability of your automatism proceed as follows:
01. Calculate the demand index summing the values in percentage of the entries present in Table 2 to each other;
02. In Graph A, from the value just found, trace a vertical line until you intersect the curve; from this point trace a horizontal line to cross the line of “cycles of
manoeuvres”. The value established is the estimated durability
of your product.
The estimate of durability is performed on the basis of the design calculations and the results of tests carried out on prototypes. In fact, being an estimate, it does
not give any guarantee on the actual duration of the product.
Example of calculation of durability of a Toona series 5 gear motor (refer to Table 2 and Graph A)
:
- leaf weight = 350 Kg (demand index= 10%)
- leaf length = 3.5 m (demand index = 10%)
- no other stress elements present
Total demand index = 20%
Durability estimate
= 160,000 cycles of manoeuvre
0
0
50.000
80.000
100.000
150.000
200.000
250.000
10 20 30405060708090100
Toona 4 Toona 5 Toona 7
Demand index
> 200 Kg 10 % 0 % 0 %
Leaf weight:
> 300 Kg 20 % 10 % 0 %
> 400 Kg 30 % 20 % 10 %
> 500 Kg - 30 % 20 %
2 - 3 m 20 % 0 % 0 %
Leaf
3 - 4 m - 10 % 0 %
length:
4 - 5 m - 20 % 10 %
5 - 6 m - - 20 %
6 - 7 m - - 30 %
Ambient temperature greater
than 40°C or lower than 0°C 20 % 20 % 20 %
or humidity greater than 80%
Blind leaf: 15 % 15 % 15 %
Installation in windy area: 15 % 15 % 15 %
TABLE 2
GRAPH A
Demand index (%)
cycles of manoeuvres

Nice Toona TO7024 Specifications

General

Brand	Nice
Model	Toona TO7024
Category	Gate Opener
Language	English
