7600RF RF Receiver [Preliminary] User’s Manual

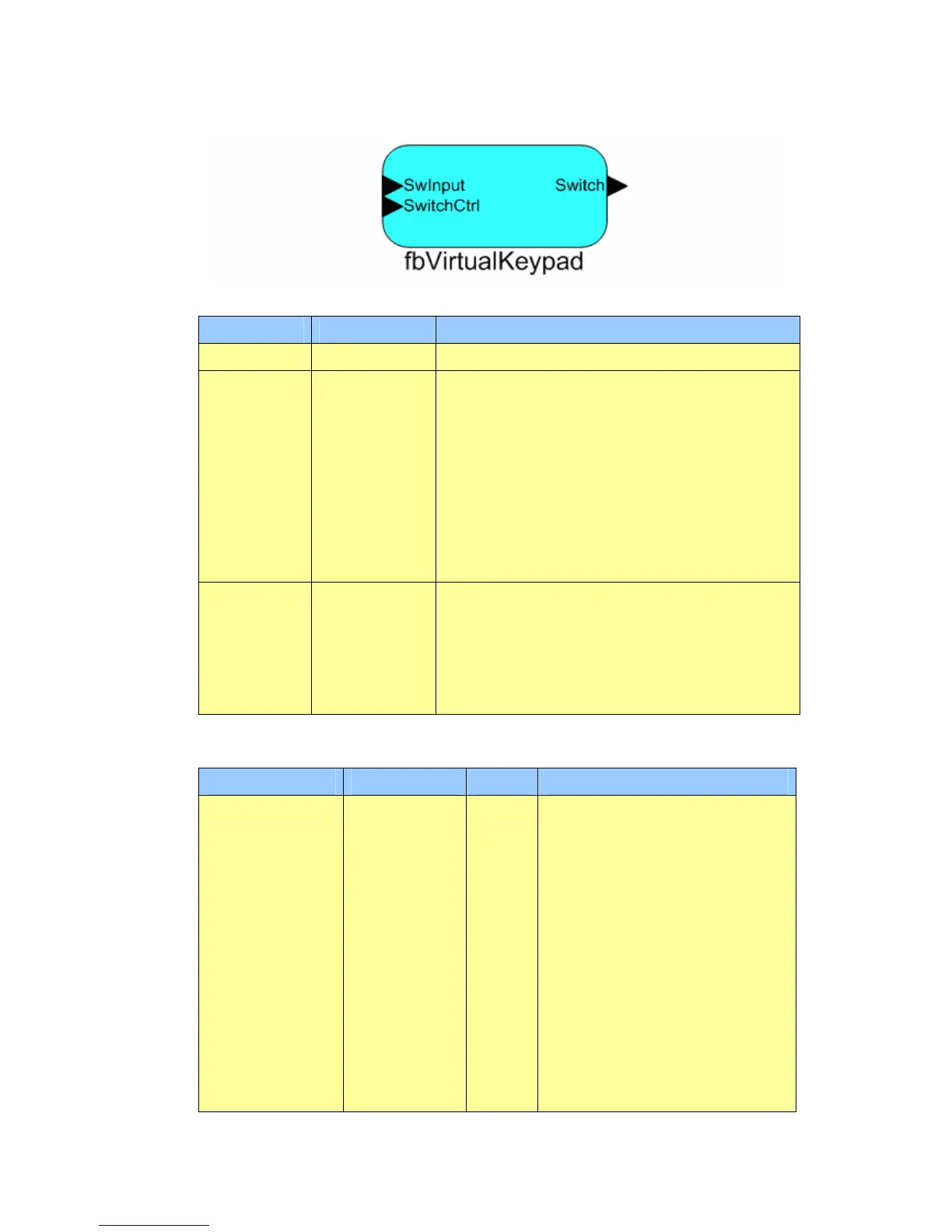

6.4 Virtual KeyPad Object
Network Variables
NV Name NV Type Comment
SwInput
SNVT_switch
Reserve for simulate button key behavior
SwitchCtrl
SNVT_switch
SwitchCtrl is Switch Control abbreviation.
Responsible for receive data (may from other
devices) thru SwitchCtrl transfer into Virtual KeyPad
Object. Inside of Virtual KeyPad Object has simple
algorithm for process data. When data was receive
from SwitchCtrl. All the behaviors of SwitchCtrl are
following setting value of UCPTkeyPadCP and
UCPTswValTable.
Switch
SNVT_switch
Switch is Responsible for logical output.
Switch logical output usually connects to physical
device. For example. A Switch network variable
connects to a Dimmer Controller or Power Controller.
It’s a lighting control functional.
Configuration Properties
CP Name CP Type Index Comment
UCPTkeyPadCP UCPTkeyPadC
P
10
Responsible control algorithm
reference’s value.
When SwitchCtrl receive a data
change event, and Virtual KeyPad
Object will to execute setting
value within UCPTkeyPadCP to
output effect on the Switch
Network Variable.
All the behavior of Virtual KeyPad
object control apply to this
property.
17
Rev.1.0B
