Nieco Corporation - Model JF94E CE

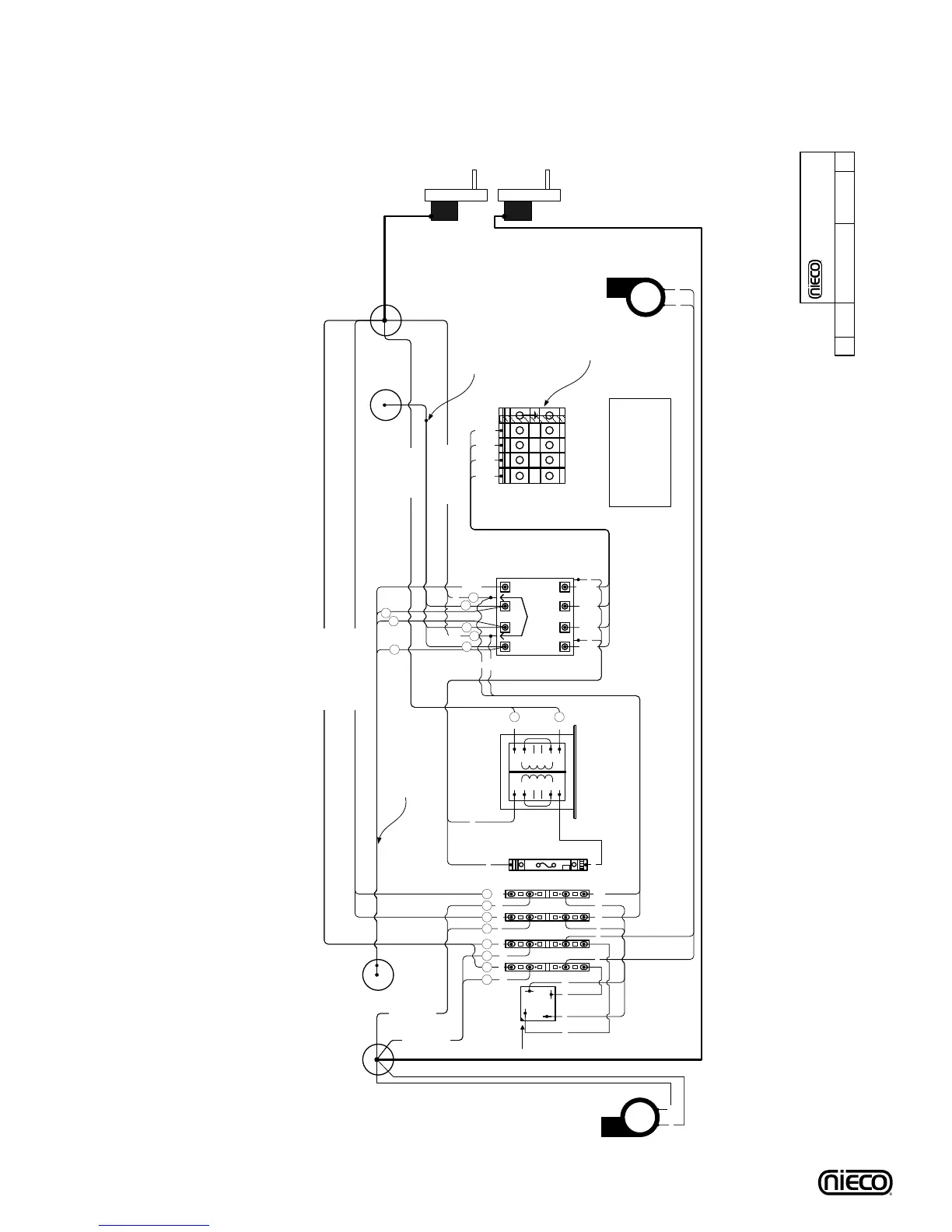

H. WIRING DIAGRAM - Motor Box
L3
L2L1
B #10
B
#10
B #10
W
Pur
R
B
R
B
To Right Side
Control Box pg. 2
B #10
B #10
B
#10
Bl
Or
1 2
3
65
High Voltage
Conduit
Low Voltage
Conduit
High Voltage
Conduit
Low Voltage
Conduit
To Left Side
Control Box pg. 1
High Pressure Blower
P/N 18447
High Pressure Blower
P/N 18447
4 Pole Contactor
50A, 24V Coil
P/N 18889
10 mm Terminal Blocks
Gray P/N 4405-16
Blue P/N 4405-17
Ground P/N 4405-18
Motor (2)
P/N 17932
