Soft starter SSN/SSA serie User Manual
35
Type
Outline Demension(mm) Installation Demension(mm)
Weight
Kg
Installation
Method
W1 H1 D W2 H2 d
SSN-008G-3
～
SSN-075G-3
560 1800 450 350 240 Φ11 .90
. Cabinet
Figure F-7
SSN-090G-3
～
SSN-160G-3
600 1800 560 390 350 Φ11 130
SSN-187G-3
～
SSN-400G-3
700 2000 600 490 390 Φ11 180
SSN-450G-3
～
SSN-500G-3
800 2000 600 590 390 Φ11 200

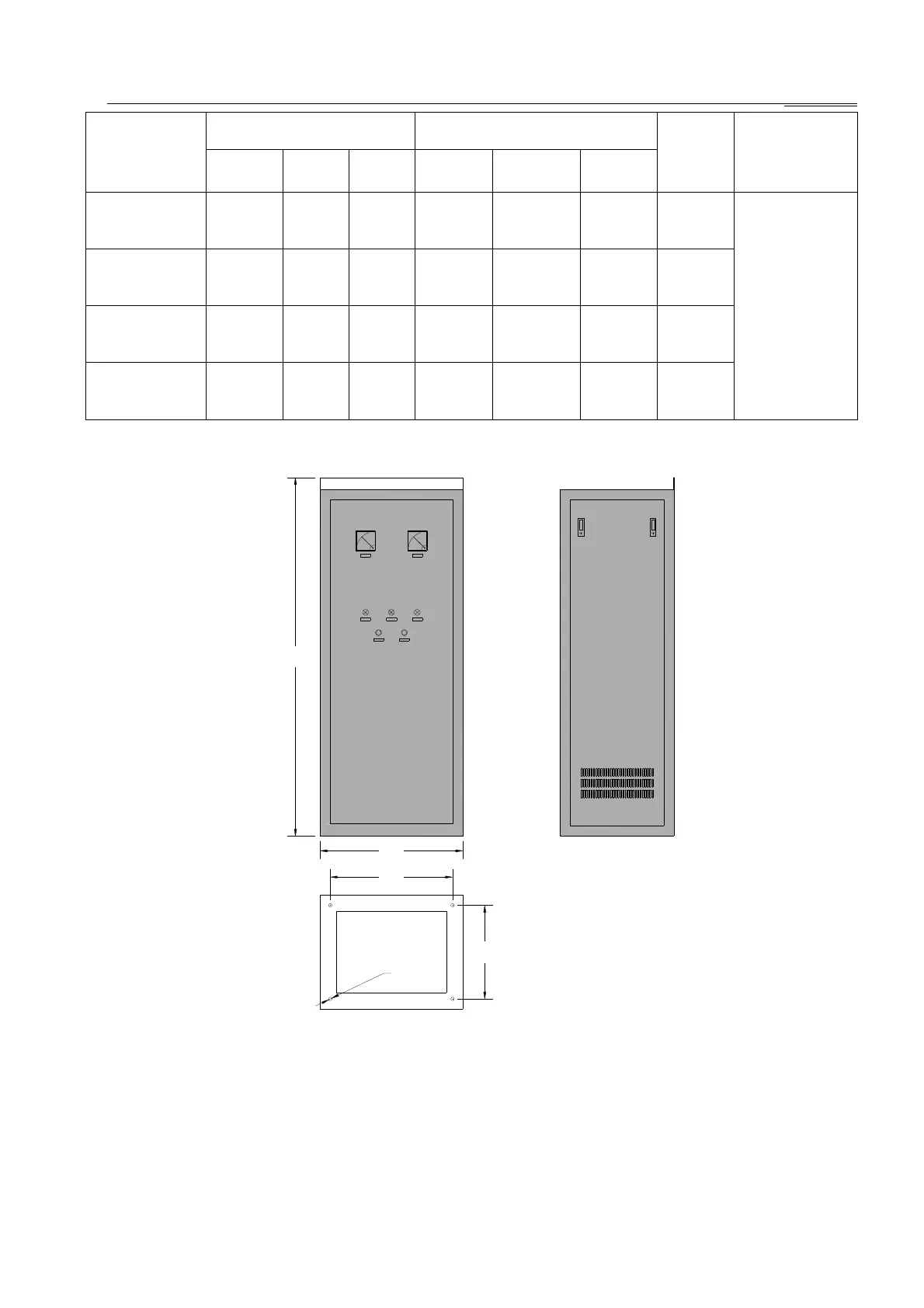

soft start control cabinet
D2
W2
d×4
Figure F-7
H1
W1
