05-201
45
Read the complete manual before attempting installation and activating the system.
1. DESCRIPTION
Combined with a Windows PC and the Nikobus software application, the PC-Logic makes
it possible to program a complete Nikobus installation.
The PC-Logic also allows to determine conditions by integrating logical connections (OR,
AND…) by which you can choose between different push buttons and 6 local inputs.
By means of these inputs, external contacts can be connected to the bus (e.g. motion
detectors). With the PC-Logic you can also activate the SMS interface which enables SMS
linking, provided that a modem is connected (05-203-01).
2. TECHNICAL SPECIFICATIONS
• Power supply voltage: ...... 230V~ ±10% 50Hz
• Bus connection
- function:
............................ connection with Nikobus
- wiring:
................................. 2 x 0,8mm
2
- bus voltage: ..................... 9V DC, ZLVS
• RJ12 connection:
............... connection for PC or modem
(Baudrate: 9600/no parity/no handshaking/Aantal bits: 8/stopbit: 1)

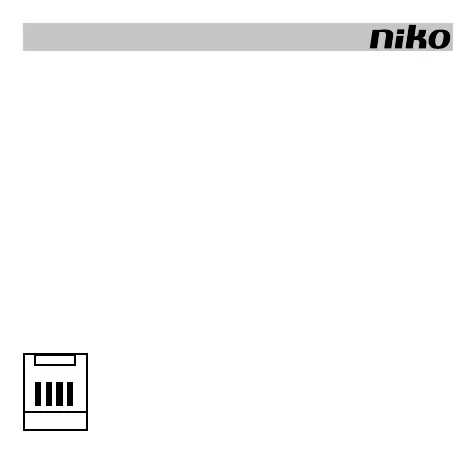

Pinning of the RJ12 (6/4)-outlet 1: RxD Audio-Link
2: GND
3: TxD Audio-Link
4: GND
GB
4 3 2 1
