27

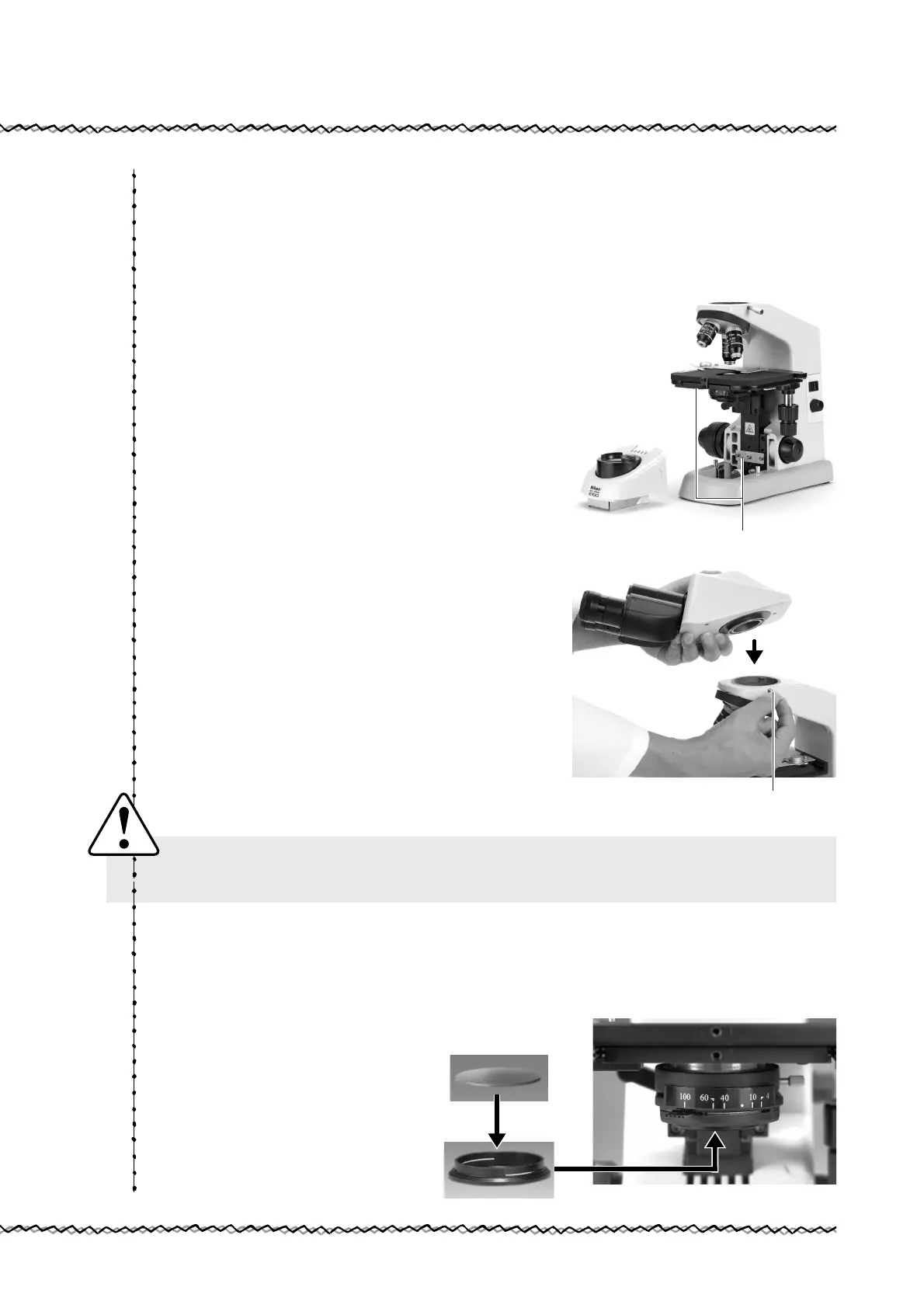

2) Removal of Shipping Clamps
The stage top plate and focusing mechanism are clamped for protection against vibration and
shocks during transportation. Remove these shipping clamps with the hexagonal wrench
provided.
• Stage Top Plate:
The top plate of the stage is retained in the Y-axis
direction by a plate fastened with two bolts. Remove
the bolts and the plate.
• Focusing Mechanism:
Remove the field lens unit to expose a plate retaining
the vertical movement of the focusing mechanism.
The plate is fastened with 3 bolts. Remove the bolts
and the plate.
3) Installing the Eyepiece Tube
Loosen the eyepiece tube clamp screw by hand and
place the eyepiece tube on the circular dovetail
mount. Tighten up the eyepiece tube clamp screw by
hand.
Shipping clamps
Eyepiece tube clamp screw
CAUTION
When detaching the eyepiece tube, hold it firmly with your hand to prevent it from
falling and loosen the clamp screw.
4) Attaching the Blue Filter
Remove the filter holder from the bottom of the condenser. Put the blue filter in the holder
and return the holder to the condenser.
To Next Page
