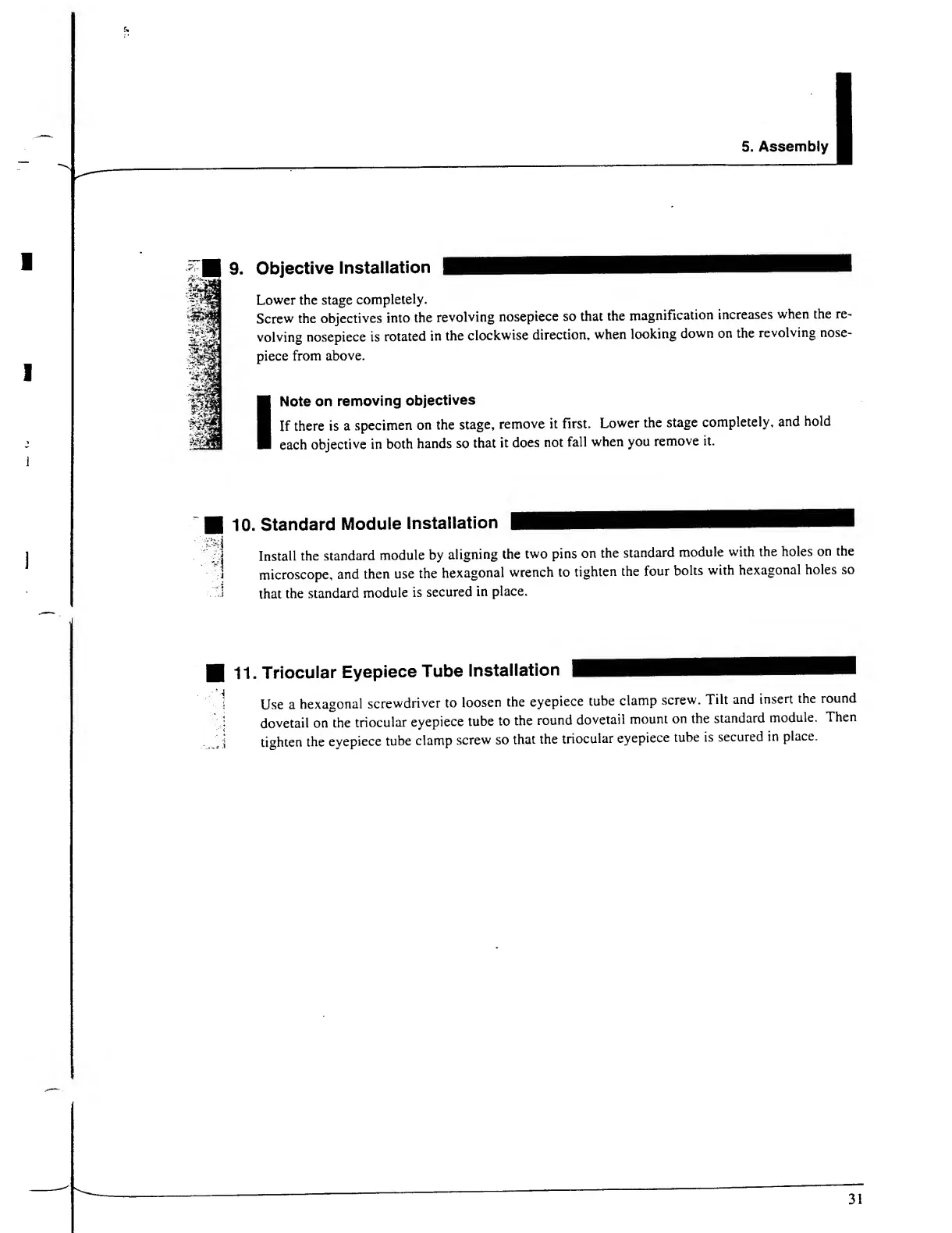

5. Assembly
Objective Installation
Lower the stage completely.
Screw the objectives into the revolving nosepiece so that the magnification increases when the re¬
volving nosepiece is rotated in the clockwise direction, when looking down on the revolving nose-
piece from above.
I Note on removing objectives
If there is a specimen on the stage, remove it first. Lower the stage completely, and hold
each objective in both hands so that it does not fall when you remove it.
| 10. Standard Module Installation
\ Install the standard module by aligning the two pins on the standard module with the holes on the
i microscope, and then use the hexagonal wrench to tighten the four bolts with hexagonal holes so
•••--! that the standard module is secured in place.
| 11. Triocular Eyepiece Tube Installation
\ Use a hexagonal screwdriver to loosen the eyepiece tube clamp screw. Tilt and insert the round
: dovetail on the triocular eyepiece tube to the round dovetail mount on the standard module. Then
1 tighten the eyepiece tube clamp screw so that the triocular eyepiece tube is secured in place.
