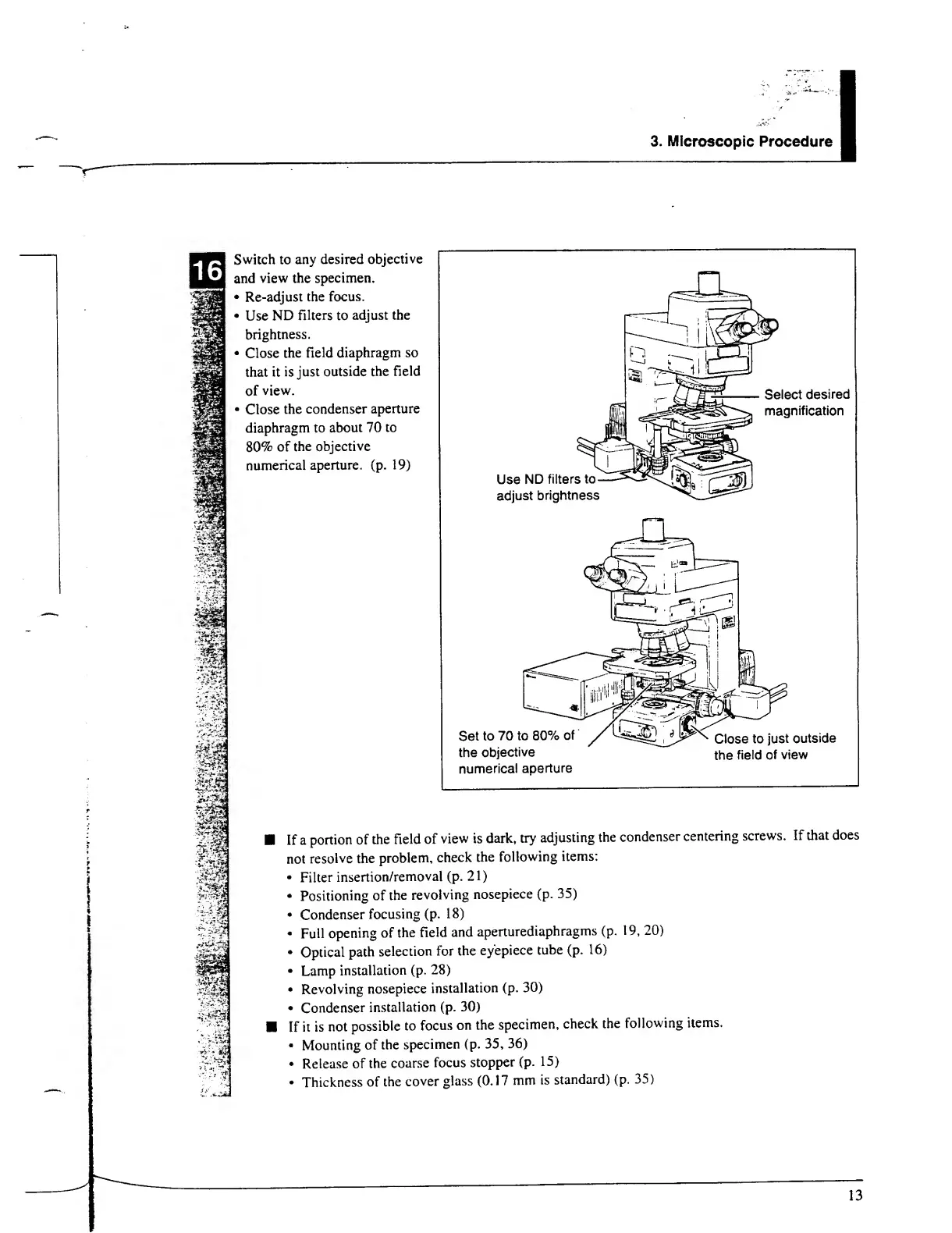

3.
Microscopic
Procedure
Switch
to
any
desired
objective
and
view
the
specimen.
•
Re-adjust
the
focus.
•
Use
ND
filters
to
adjust
the
brightness.
•
Close
the
field
diaphragm
so
that
it
is
just
outside
the
field
of
view.
•
Close
the
condenser
aperture
diaphragm
to
about
70
to
80%
of
the
objective
numerical
aperture,
(p.
19)
■
If
a
portion
of
the
field
of
view
is
dark,
try
adjusting
the
condenser
centering
screws.
If
that
does
not
resolve
the
problem,
check
the
following
items:
•
Filter
insertion/removal
(p.
21)
•
Positioning
of
the
revolving
nosepiece
(p.
35)
•
Condenser
focusing
(p.
18)
•
Full
opening
of
the
field
and
aperturediaphragms
(p.
19,
20)
•
Optical
path
selection
for
the
eyepiece
tube
(p.
16)
•
Lamp
installation
(p.
28)
•
Revolving
nosepiece
installation
(p.
30)
•
Condenser
installation
(p.
30)
■
If
it
is
not
possible
to
focus
on
the
specimen,
check
the
following
items.
•
Mounting
of
the
specimen
(p.
35,
36)
•
Release
of
the
coarse
focus
stopper
(p.
15)
•
Thickness
of
the
cover
glass
(0.17
mm
is
standard)
(p.
35)
