®EyepieCe
Insert the eyepieces into the eye-
piece sleevesof the eyepiece tube.
/
@Eyepiece tube
A fter releasing the eyepiece tube clamp screw
I sufficiently on the right side of the microscope
arm, attach the eyepiece tube, and clamp it in
position.
-----------
J
(]) Objectives
Take stage down by manipulating coarse focus
knob. Mount the objectives on the revolving
nosepiece in such positions that, when, viewed
from the stage-side, their magnifying power in-
creasesclockwise ..
Slide holder
If the microscope is to be used with the lefthand
stage travel knobs, attach the slide holder to the
righthand hole, and if with the righthand knobs, to
the lefthand hole. Slide holder is to be removed
when using large specimen.
,,,j.- Stage clamp screw
Releasing the stage clamp screw suffi-
ciently, fit the stage into the circular
dovetail, and refasten the clamp screw.
Aperture number plate
®condenser
Insert the condenser into the condenser carrier,
facing the aperture number plate toward the
user, and fasten the clamp screw.
7

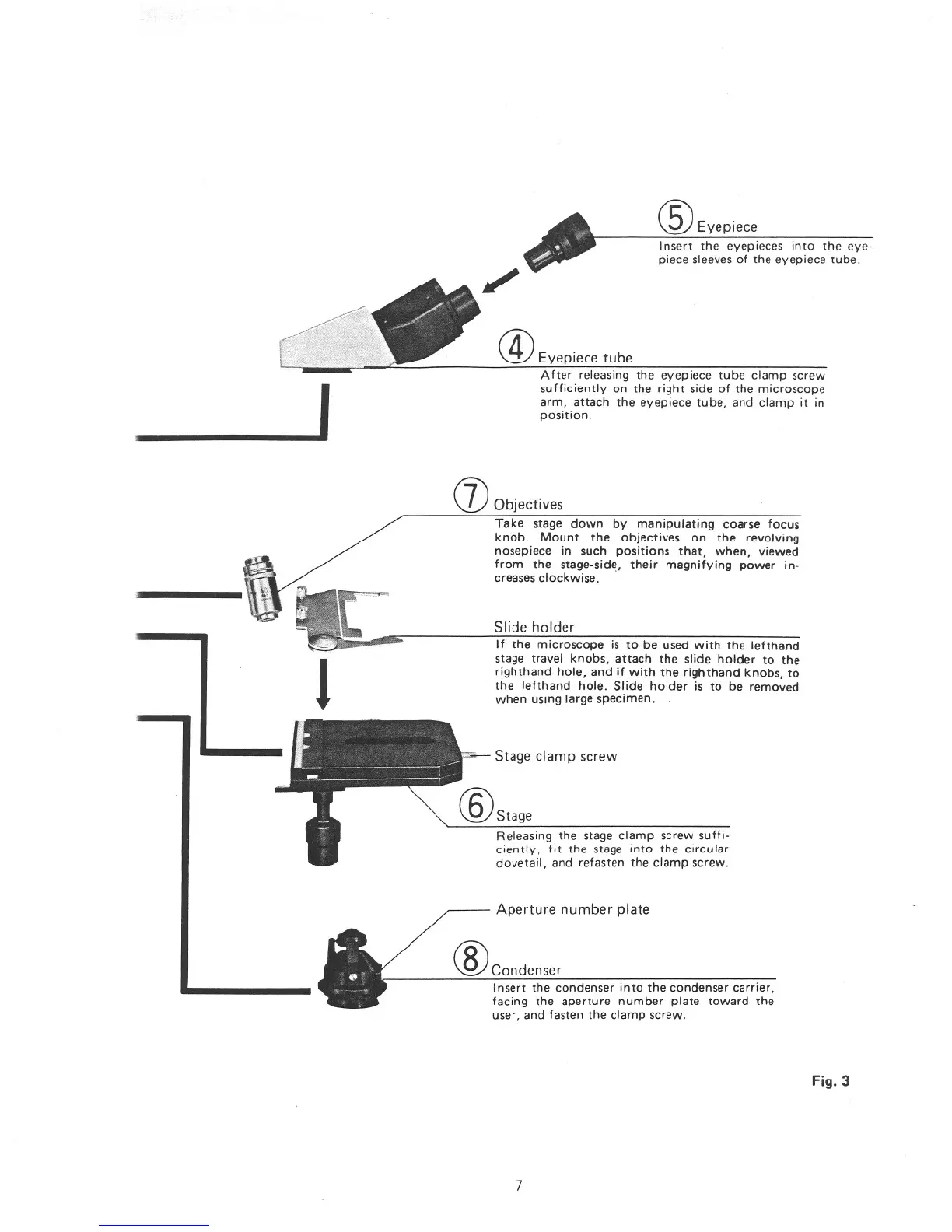

Fig.3

Nikon Labophot Specifications

General

Illumination	Built-in transmitted light, halogen lamp
Stage	Mechanical stage with coaxial controls
Focus	Coarse and fine focus knobs
Observation Methods	Brightfield, Phase Contrast
Condenser	Abbe condenser
Power Supply	AC 100-240V, 50/60Hz
