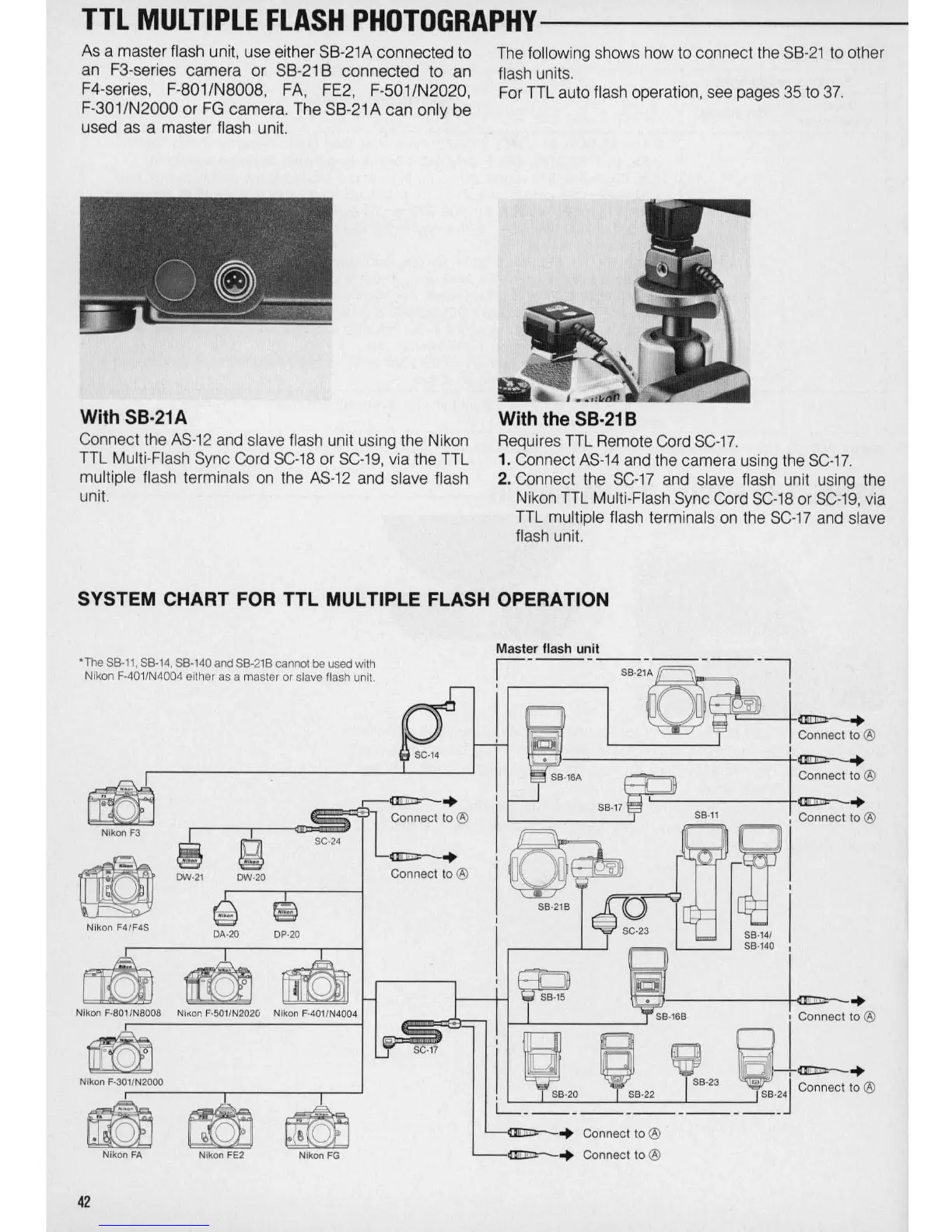

TTL MULTIPLE FLASH PHOTOGRAPHY-- ---- - --
As a master flash unit, use either SB-21A connected to
an F3-series camera or
SB-21 B connected to an
F4-series, F-801/N8008, FA, FE2, F-501/N2020,
F-301/N2000 or
FG camera. The SB-21A can only be
used as a master flash unit.
With SB -21A
Connect the AS-12 and slave flash unit using the Nikon
TTL Multi
-F lash Sync Cord SC-18 or SC-19, via the TTL
multiple flash terminals
on the AS-12 and slave flash
unit.
The following shows how to connect the
SB-21 to other
flash units.
For TTL auto flash operation, see pages
35 to 37.
With the SB-21 B
Requires TTL Remote Cord SC-17 .
1. Connect AS-14 and the camera using the SC-17.
2. Connect the SC-17 and slave flash unit using the
Nikon TTL Multi-Flash Sync Cord
SC-18 or SC-19, via
TTL multiple flash terminals
on the SC - 17 and slave
flash unit.
SYSTEM CHART FOR TTL MULTIPLE FLASH OPERATION
-The S8-11 , S8·14, S8·140 and S8·218 cannot be used with
Ni kon F~401/N4004 either as a master or slave flash unit.
BftJ
Nlkon F3
~
DW·21 DW-20
Nlkon F4/F4S
OA·2Q Dp·20
Nlk on F·8011N8008 Nll< or. F·5011N202G N lkon F-401fN4004
m
Nlkon F-301lN2000
r-------~r--------,--~
a
Nlkon FA
Nlkon FE2
Nlkon FG
