nilan Compact P CTS700 - Temperature Sensor Identification; Compact P Sensor Mapping

We reserve the right to make changes
6

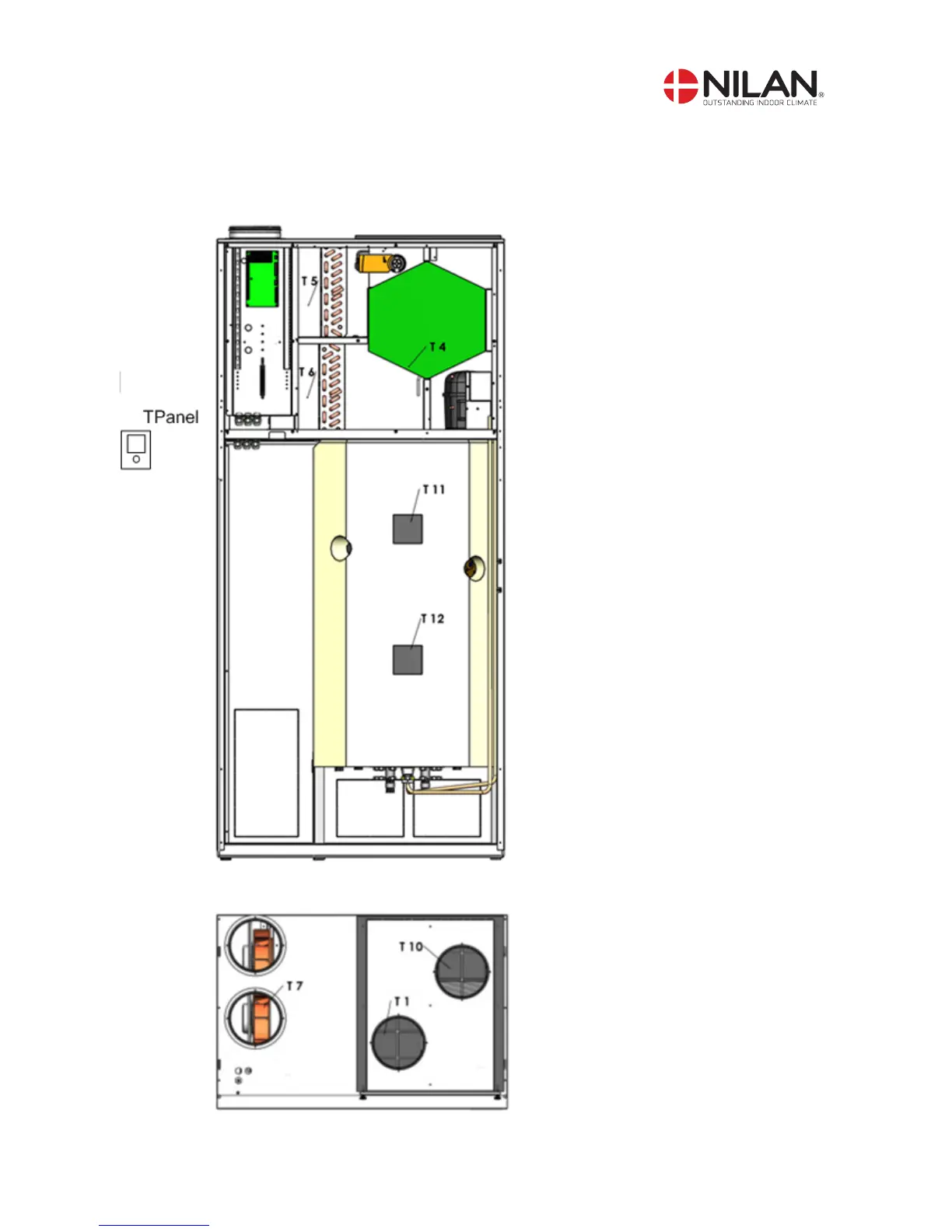

Temperature sensor overview
Compact P:
T1: Outdoor air
T2: Air intake
T3: Extracted air
T4: Output
T5: Condenser
T6: Evaporator
T7: Intake air (after heating element)
T8: Outdoor air (before preheating element)
T9: On water heating coil
T11: Top of tank
T12: Tank base
TPanel: CTS 700 control panel
