User panel
Touch Panel
At delivery of the unit, the Touch panel is integrated in the front, but can be moved out, if you want to place it in e.g. the Kitchen or living
room. The Touch panel should be located in a prominent place to allow changes to be made to the settings and for observing operational
warnings or alarms.
Do you want to crimp a RJ45 plug on to a cable, you must notice the following:

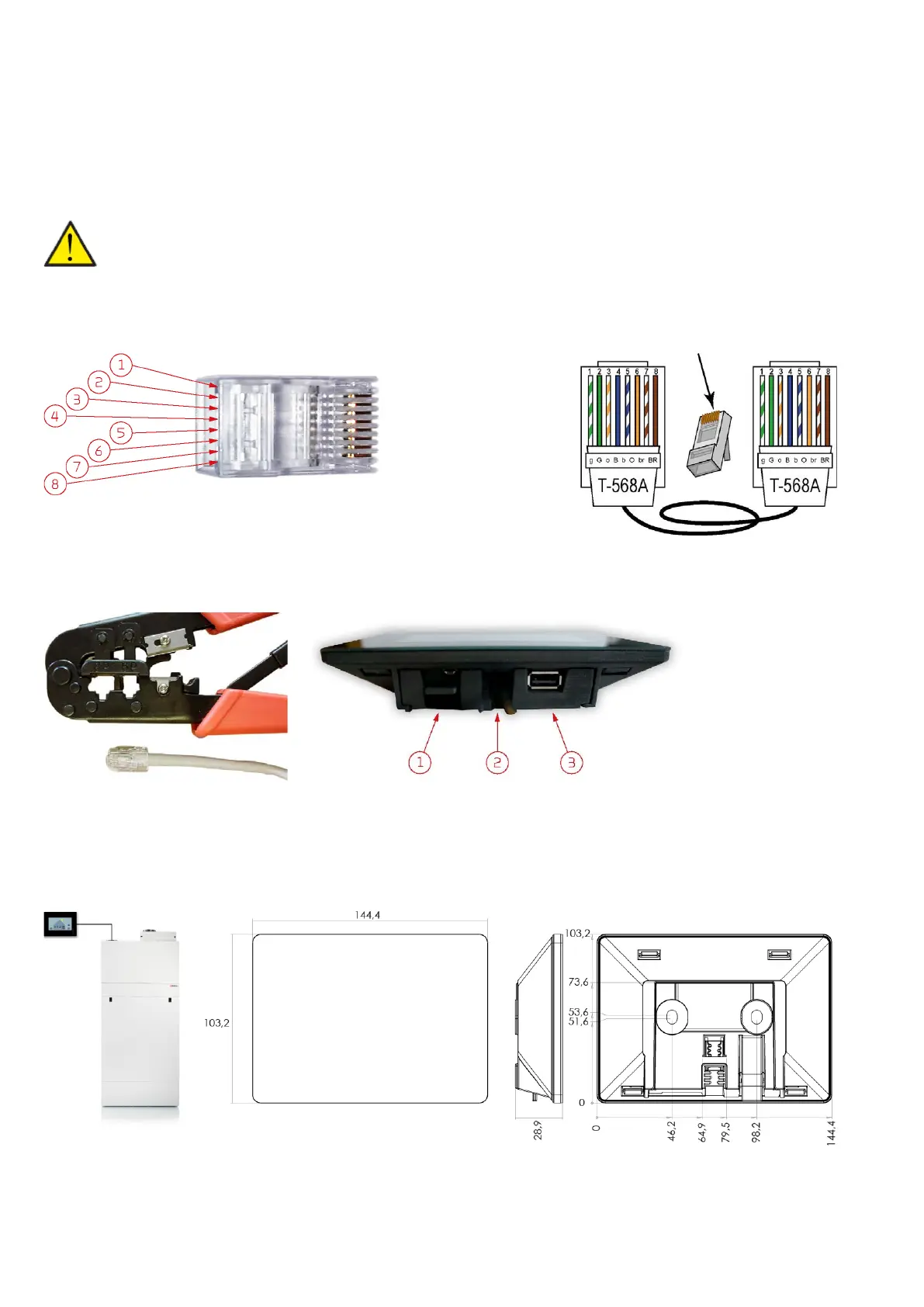

Dimensional drawing user panel
ATTENTION
An ordinary Type A (T-568A) LAN-kabel (not a crow over cable) must be used, max 20 m.
1. Green/white
2. Green
3. Orange/white
4. Empty
5. Empty
6. Orange
7. Brown/white
8. Brown
The illustration shows the clip on the back of the connector.
1. Locking clip
2. Power-connection
3. USB stick
Use RJ45 T568 type A plug and RJ45
crimping tool.
Touch panel seen from below.
