nilan Compact P Installation Instructions

30
Electrical connections accessories
SHW hot water tank

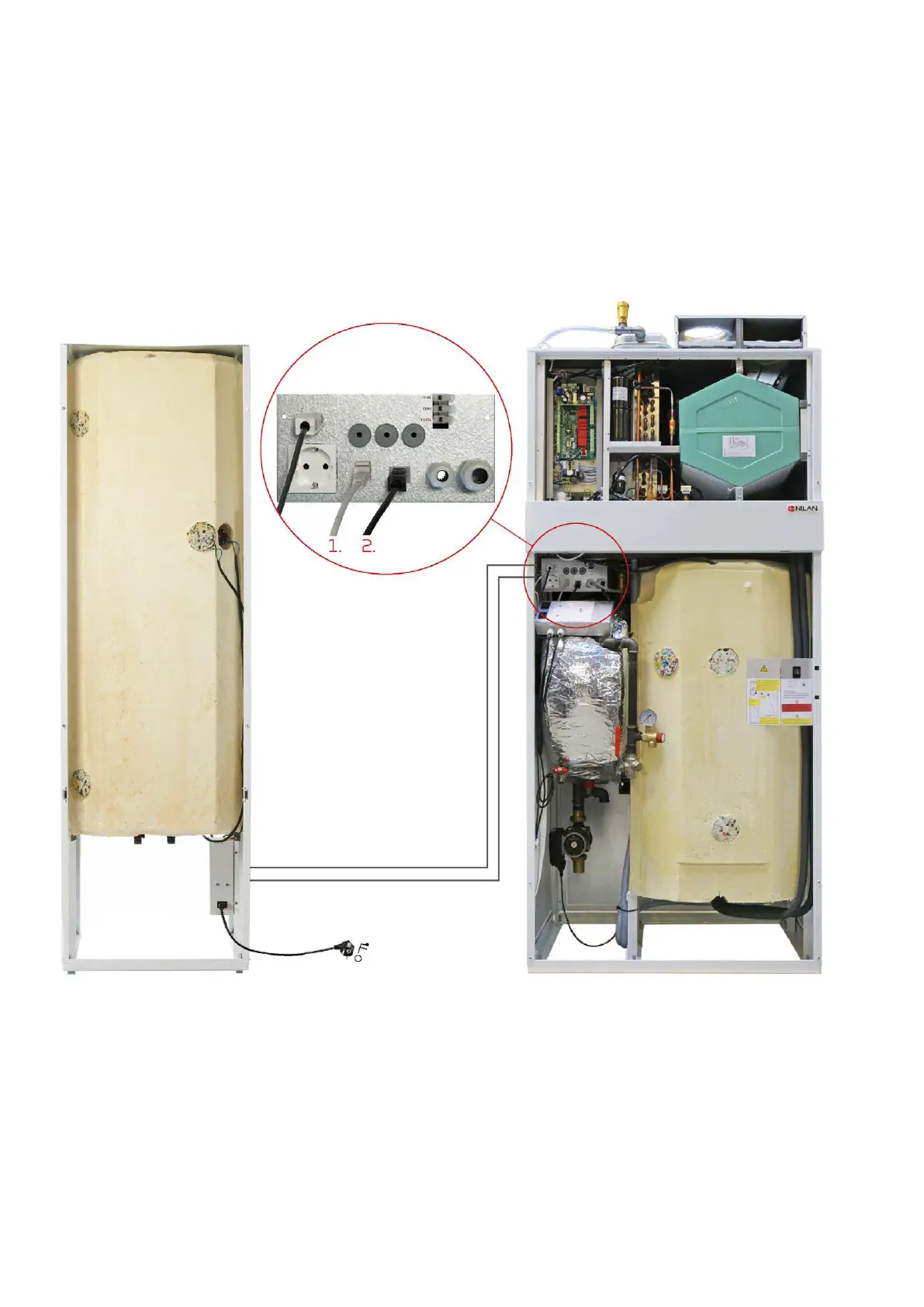

The SHW hot water tank is connected to Compact P AIR connection panel as shown below. The SHW tank has its own power supply via
a Schuko connector.
1. RJ45 connector for transmitting top temperature (T21), bottom temperature (T22) and anode monitoring in the SHW tank.
2. Connector for control of supplementary electric heating in the SHW tank.
Schuko plug
1x230V 50Hz 10A
