Connection to supplementary coil in SHW hot water tank
The SHW container is equipped as standard with a supplemental coil with a length of 8.5m.
The supplementary coil can be connected to a solar panel with external solar heating control (not Nilan supply), or other heat source,
which contributes to heating the domestic water.
ATTENTION
If another container with a shorter supply coil is connected, the compressor output in the hot water production must be
reduced. See the Software manual
1
2
1
2

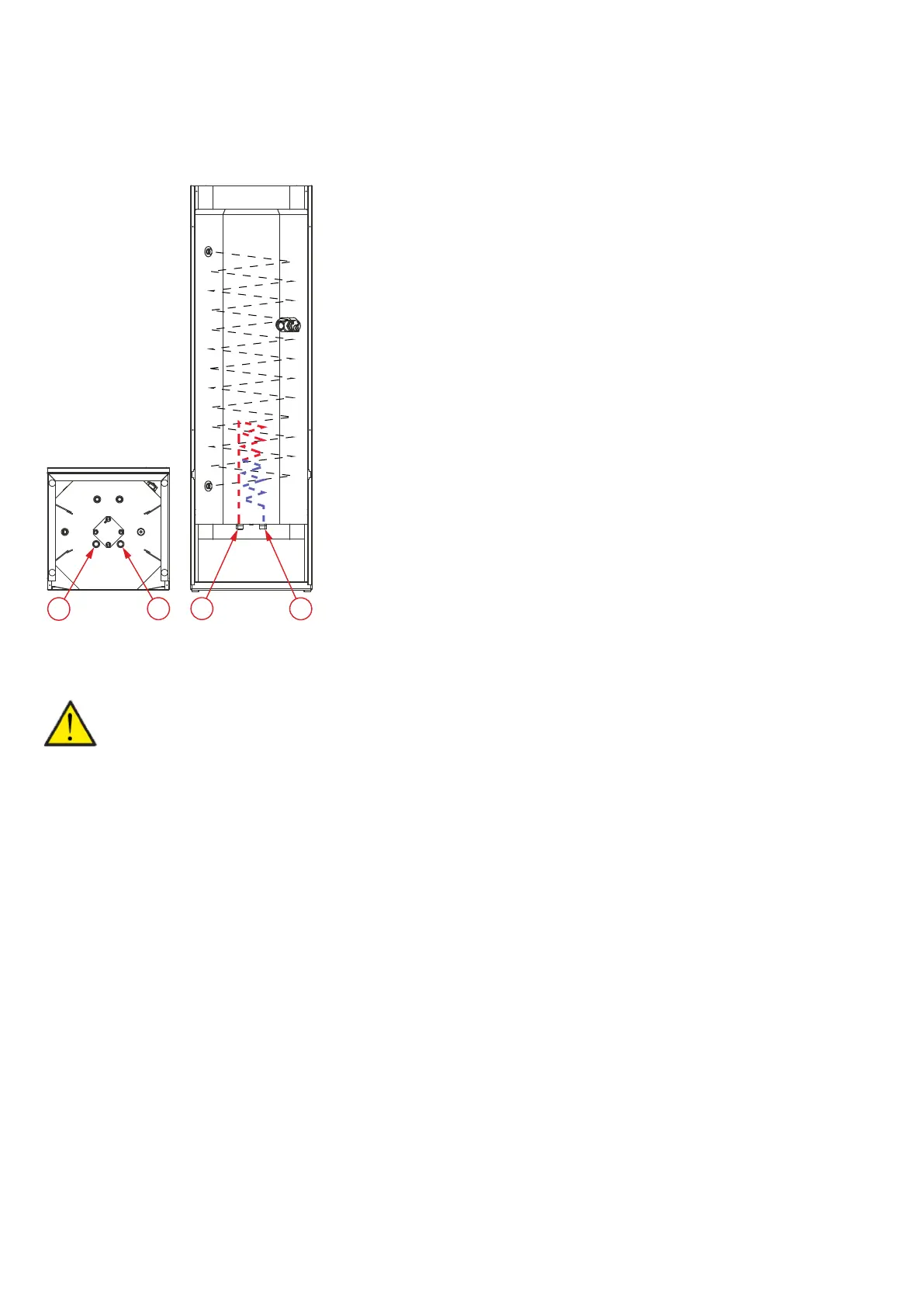

1. Supply flow to the supplementary coil in the SHW tank
2. Return flow from the supplementary coil in the SHW tank
SHW bottom SHW front
