Niles DBI-1 Installation Guide

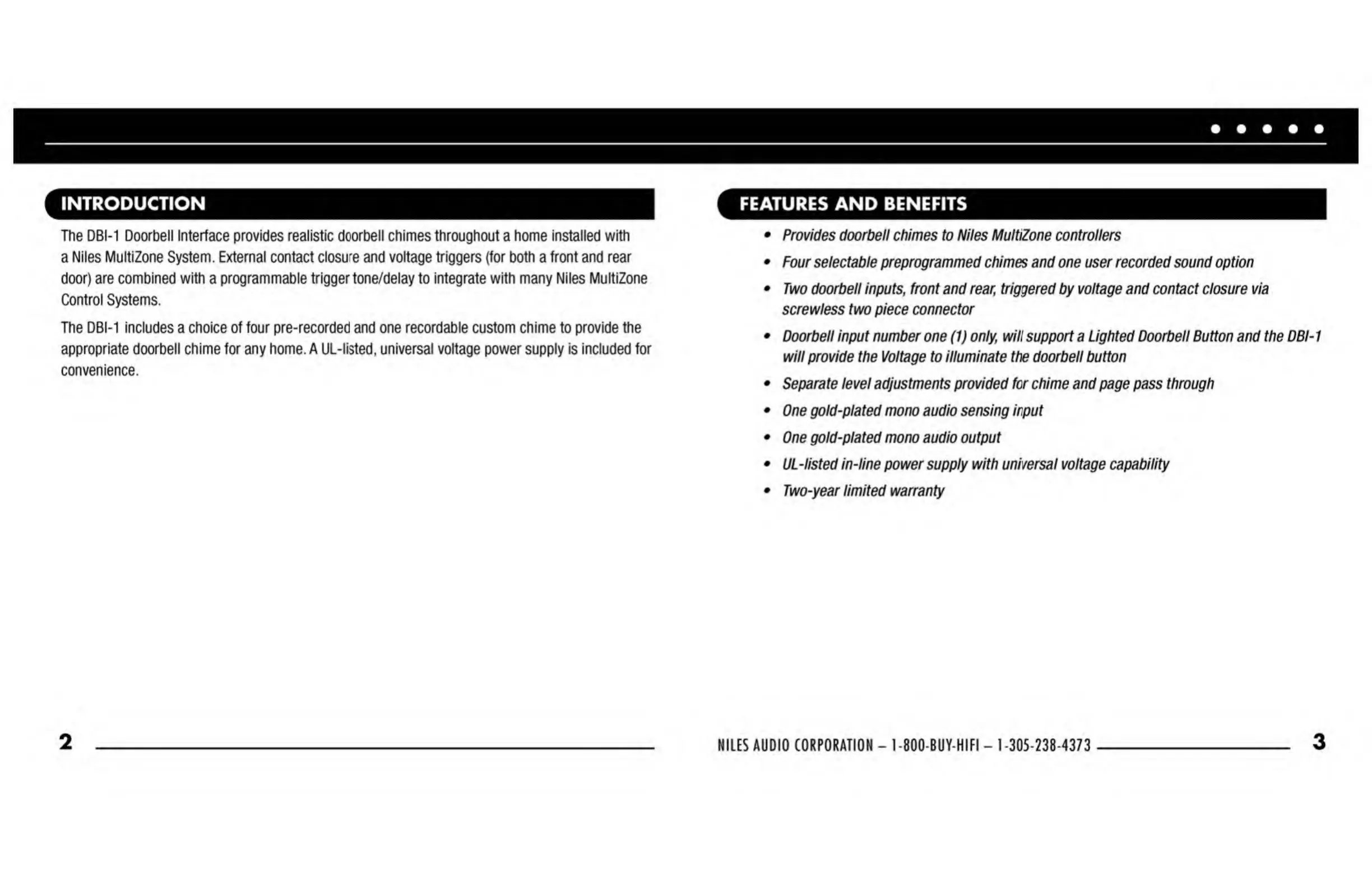

INTRODUCTION
The DBI-1 Doorbell Interface provides realistic doorbell chimes throughout a home installed with
a Niles MultiZone System. External contact closure and voltage triggers (for both a front and rear
door) are combined with a programmable trigger tone/delay to integrate with many Niles MultiZone
Control Systems.
The DBI-1 includes a choice of four pre-recorded and one recordable custom chime to provide the
appropriate doorbell chime for any home. A UL-listed, universal voltage power supply is included for
convenience.
FEATURES AND BENEFITS
• Provides doorbell chimes to Niles MultiZone controllers
• Four selectable preprogrammed chimes and one user recorded sound option
• Two doorbell inputs, front and rear, triggered by voltage and contact closure via
screwless two piece connector
• Doorbell input number one (1) only, will support a Lighted Doorbell Button and the DBF 1
will provide the Voltage to illuminate the doorbell button
• Separate level adjustments provided for chime and page pass through
• One gold-plated mono audio sensing irput
• One gold-plated mono audio output
• UL -listed in-line power supply with universal voltage capability
• Two-year limited warranty
- 1-305 238 4373
3
2
NILES AUDIO CORPORATION - 1-800 BUY HIFI

Niles DBI-1 Specifications

General

Brand	Niles
Model	DBI-1
Category	Accessories
Language	English
