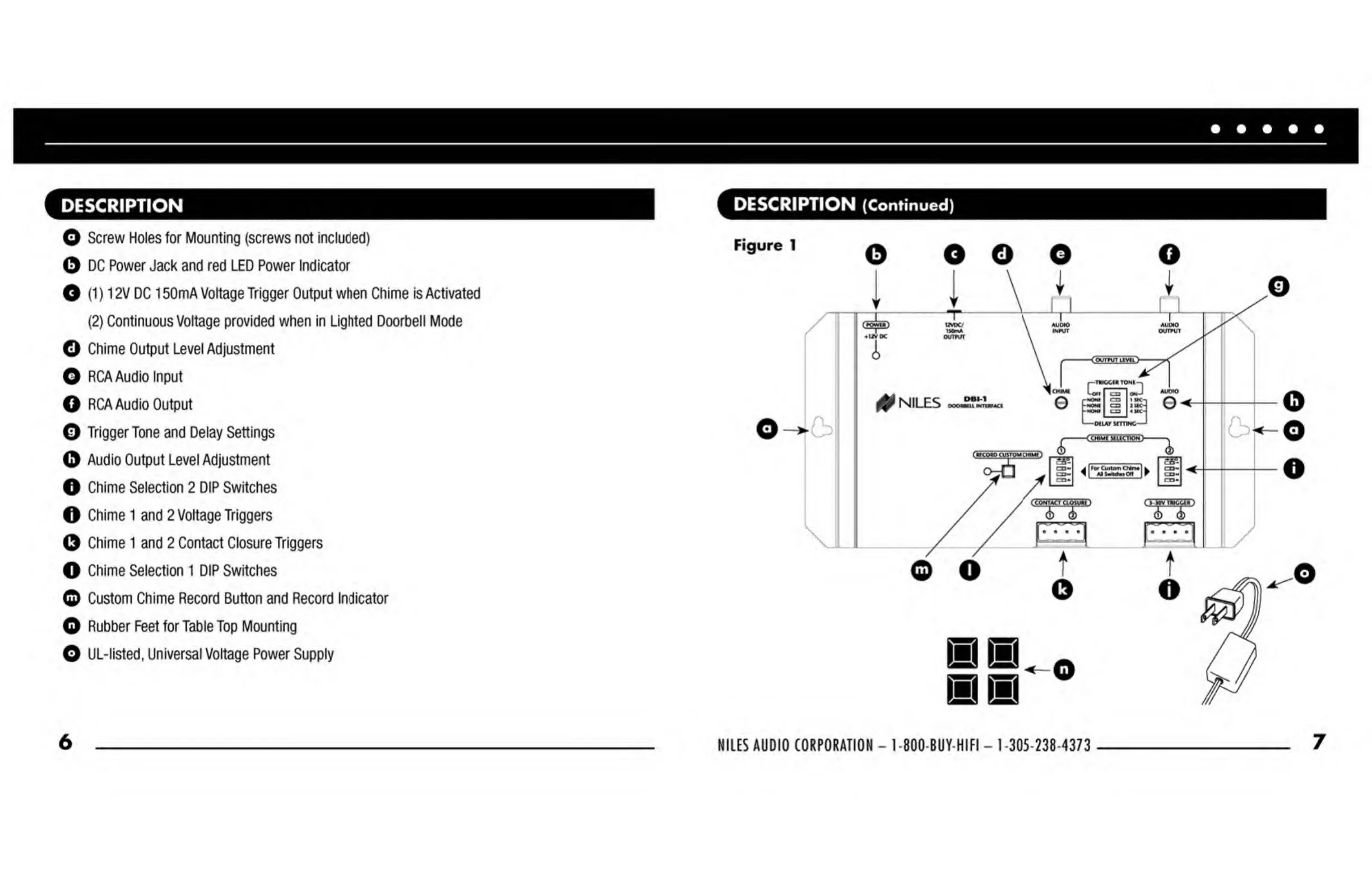

DESCRIPTION
O
Screw
Holes
for
Mounting
(screws
not
included)
©
DC
Power
Jack
and
red
LED
Power
Indicator
O
(1)
12V
DC
150mA
Voltage
Trigger
Output
when
Chime
is
Activated
(2)
Continuous
Voltage
provided
when
in
Lighted
Doorbell
Mode
©
Chime
Output
Level
Adjustment
O
RCA
Audio
Input
O
RCA
Audio
Output
0
Trigger
Tone
and
Delay
Settings
©
Audio
Output
Level
Adjustment
O
Chime
Selection
2
DIP
Switches
O
Chime
1
and
2
Voltage
Triggers
G
Chime
1
and
2
Contact
Closure
Triggers
O
Chime
Selection
1
DIP
Switches
©
Custom
Chime
Record
Button
and
Record
Indicator
©
Rubber
Feet
for
Table
Top
Mounting
O
UL-listed,
Universal
Voltage
Power
Supply
6
DESCRIPTION
(Continued)
Figure
1
O
O
O
O
O
NILES
AUDIO
CORPORATION
-
1-800
BUY
HIFI
-
1-305-238
4373
7
