D OORBELL I NTERFACE
5
D OORBELL I NTERFACE
4
PARTS GUIDE
The DBI-1 package includes the following parts:
One (1) DBI-1 Doorbell Interface
One (1) Set of Rubber Feet
One (1) Universal Voltage Power Suply
One (1) Installation & Operation Guide
One (1) Warranty Card
After unpacking and before installation, the installer should carefully inspect the contents. If any
damage is discovered due to shipping, the installer should contact Niles Audio for assistance (see
back cover or Warranty Card for contact information). Also, keep all packing materials in case the
product ever needs to be returned to the factory.
DESCRIPTION (Continued)
a
b
c
e
a
d
g
f
h
i
j
k
l
m
n
o

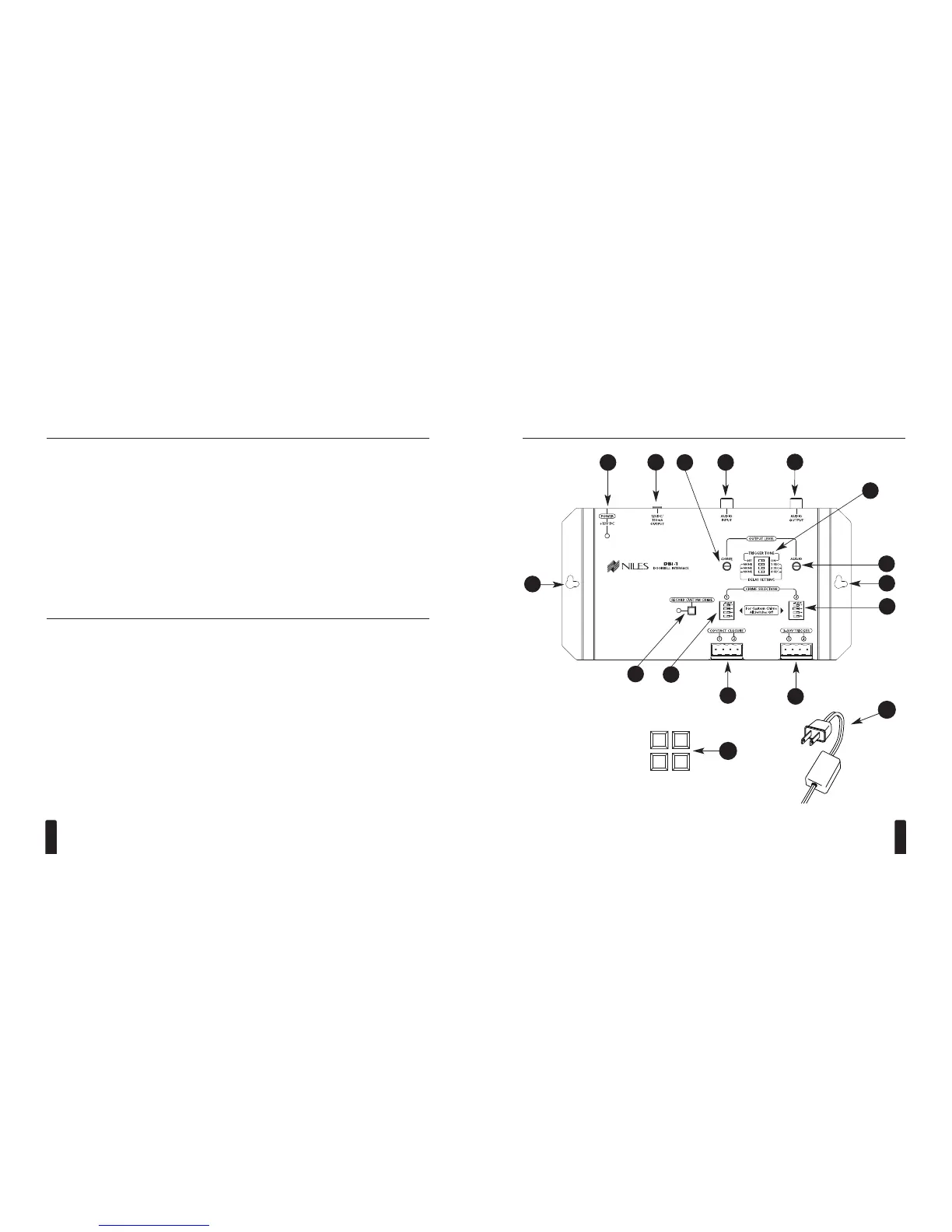

Figure 1
DESCRIPTION
(a) Screw Holes for Mounting
(screws not included)
(b) DC Power Jack and red LED Power
Indicator
(c) 12V DC 150mA Voltage Trigger Output
(d) Chime Output Level Adjustment
(e) RCA Audio Input
(f) RCA Audio Output
(g) Trigger Tone and Delay Settings
(h) Audio Output Level Adjustment
(i) Chime Selection 2 DIP Switches
(j) Chime 1 and 2 Voltage Triggers
(k) Chime 1 and 2 Contact Closure Triggers
(l) Chime Selection 1 DIP Switches
(m) Custom Chime Record Button and
Record Indicator
(n) Rubber feet for Table Top Mounting
(o) UL-listed, Universal Voltage Power Supply
