ZR-6 MULTIZONE SYSTEM DESIGN GUIDE
INTEGRATE AND DISTRIBUTE HD VIDEO
When a VS-6 is integrated with a ZR-6 audio system, you can
distribute high de nition video and audio to any or all of the
ZR- 6’s zone s . This c ombin a tio n deli vers u p to fou r high de nition
video sources to up to six zones. Five video sources can be
distributed if no iPod is connected.
BUILT-IN CAT-5 BALUNS
The VS-6 enables you to use cost-ef cient CAT-5 cable to
distribute high de nition video. The VS-6 has a balanced
component video output for each zone. At the other end of the
CAT-5 cable, a Niles balun (either wall mount or component
style) is used to connect to the TV using a short length of basic
component video cable.
LOCAL TV AUTOMATION
In order to turn the local TV on and off in a zone, a Niles R-8L or
any learning IR remote must be used.
CASCADE COMPONENT VIDEO OUTPUTS
The VS-6 is equipped with six buffered component video outputs
that allow it to share video sources with a home theater system or
additional VS-6 High De nition Component Video Switchers.
Three VS-6s can be combined with three ZR-6s.
CENTRALLY LOCATES GEAR
By centrally locating gear, your customer can access sources
such as DVRs and Blu-ray players from any location in a house.
A customer can begin watching a movie in their home theater
and  nish watching it in their bedroom.

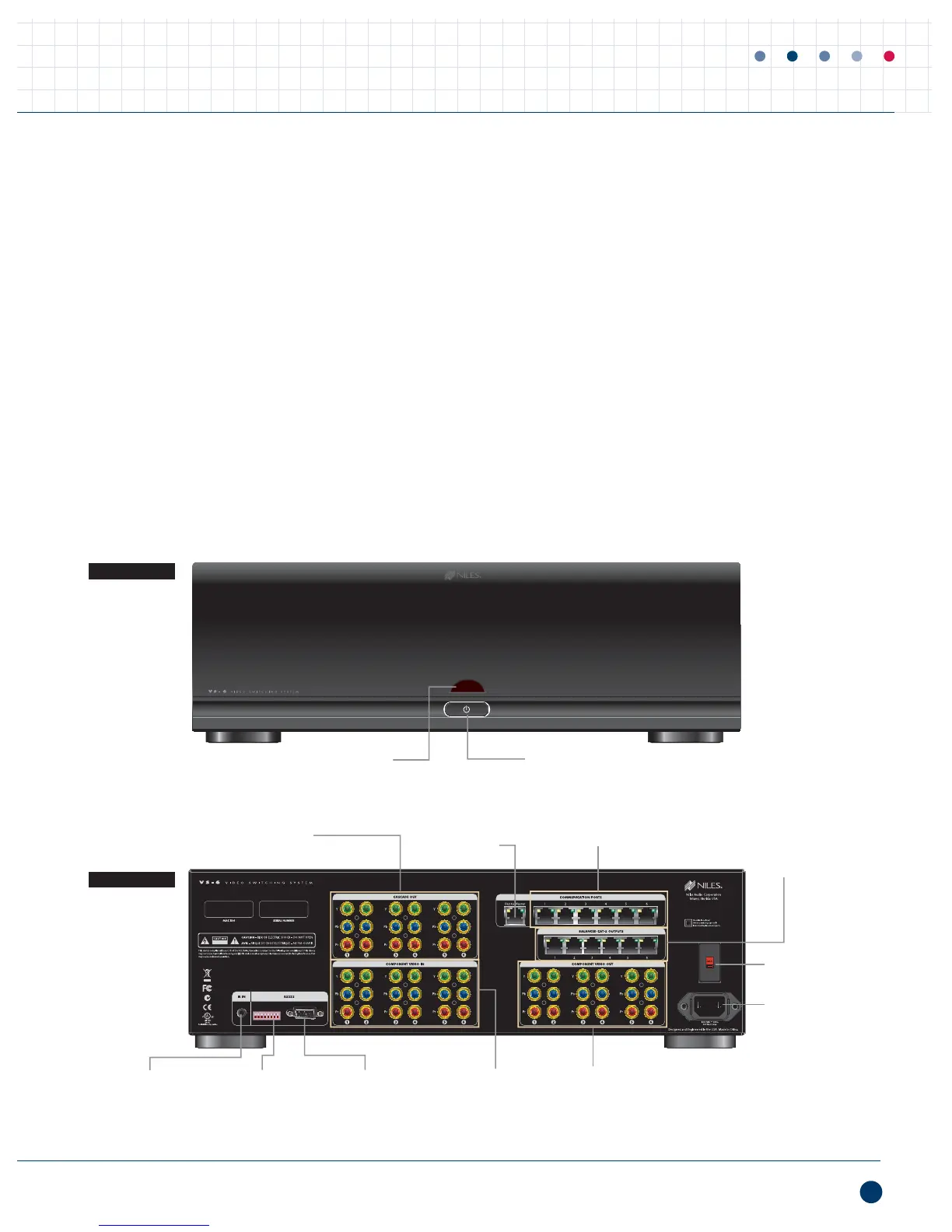

OVERVIEW: VS-6 KEY FEATURES
IR Sensor Window Main Power Switch
FRONT PANEL
Out To Master
Connection
Buffered Cascade
Component Video Outputs
Communication Ports Zoned Balanced
CAT-5 Component
Video Outputs
Voltage
Switch
IEC Power
Receptacle
Zoned Component
Video Outputs
Component
Video Inputs
Set Up
Dipswitches
RS-232 Control
Input Connection
IR Control
Input Connection
REAR PANEL
