ZR-6 MULTIZONE SYSTEM DESIGN GUIDE
OVERVIEW: ZR-6 KEYPADS AND TOUCHSCREEN
TS-PRO COLOR TOUCHSCREEN CONTROLLER
The TS-Pro is a wall-mount color touchscreen that offers local
and whole-house control over audio/video equipment. Designed
to be used with the ZR-6, it provides an upgrade solution to the
entry level Solo-6IR Keypad and the Solo-6MD Metadata
Keypad. Its bright, high-contrast color touchscreen offers a
crisp, easy-to-see interface that quickly responds to the press
of a  nger. Frequently used commands are accessed using the
conveniently located hard keys. The large LCD display and
intuitive control screens simplify operation, even when accessing
advanced source features and functionality. The TS-Pro
con gures quickly without a computer. Simply connect the
TS-Pro to the ZR-6 and all system programming automatically
loads into the touchscreen delivering true plug-and-play
integration.
SOLO-6MD WEATHER-RESISTANT MASTER KEYPAD
WITH BACKLIT LCD AND METADATA DISPLAY
The Solo-6MD’s bright, high-contrast LCD display is easy-to
read under any lighting conditions. It displays all the metadata
from a connected iPod as well as menus and favorites for the
ZR-6’s built-in AM/FM tuner. Dedicated AM/FM and iPod keys
offer quick direct access to these sources. The weather resistant
design of the Solo-6MD opens up new installation opportunities
by enabling you to install the keypad in wet areas within the
home such as bathrooms and spas or outdoor areas such as
patios. A built-in IR sensor allows convenient control by the
R-8L Learning IR Remote or third-party controls.
SOLO-6IR WEATHER-RESISTANT MASTER KEYPAD
The single-gang Solo-6IR keypad offers convenient control for
the ZR-6’s built-in tuner and up to 5 additional sources, including
an iPod. It simpli es operation for your customer by providing
One Touch To Entertainment
®
automation—a single press is all
that’s needed to access the entertainment. The Solo-6IR comes
with an assortment of laser-etched buttons so it can be labeled
to optimally re ect each client’s needs. The Solo-6IR’s integrated
IR sensor can be disabled for use in areas prone to direct
sunlight, such as outside by the pool.
NUMERIC-6P
The Numeric-6P provides convenient control of satellite
receivers, cable boxes, and CD changers. It is designed to work
speci cally with the Solo-6IR keypad and mounts along with it
into a double-gang J-box (the double-gang wall plate is not
supplied).

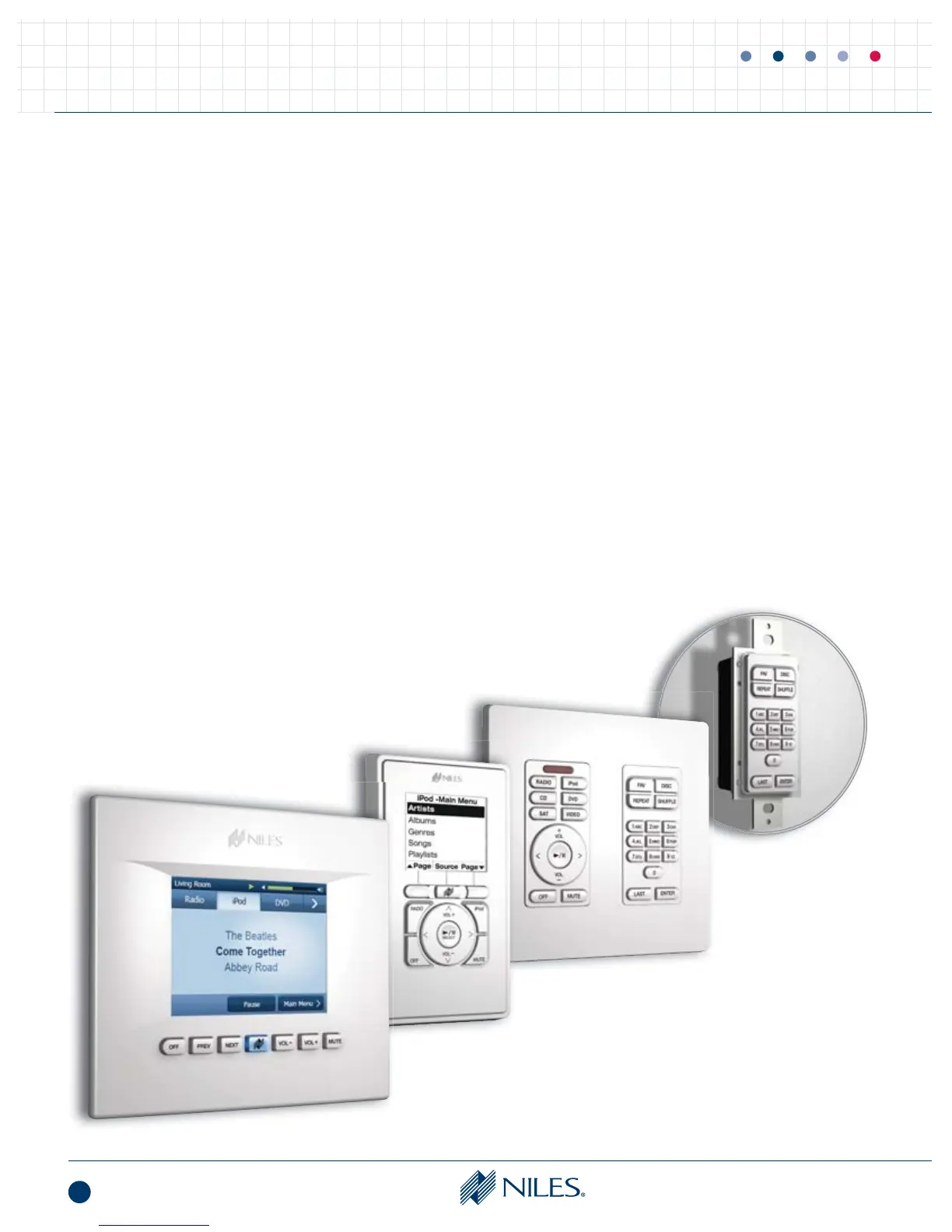

TS-Pro
FG01451
Solo-6MD
FG01493
Numeric
™
-6P
FG01442
Solo-6IR
FG01440
Numeric-6P
(used with the Solo-6IR)
