ZR-6 MULTIZONE SYSTEM DESIGN GUIDE
OVERVIEW: KEYPADS AND TOUCHSCREEN KEY FEATURES
METADATA DISPLAY
The TS-Pro Touchscreen and Solo-6MD Keypad display
metadata from an iPod and the built-in radio for easy and
intuitive operation.
WEATHER-RESISTANT KEYPADS
The Numeric-6P, Solo-6IR, and the Solo-6MD keypads can be
installed in wet areas such as showers, saunas, and outdoors.
KEYPAD COLOR OPTIONS
The Solo-6IR, Solo-6MD, and TS-Pro keypads include white,
light almond, and bone color change kits. The Solo-6MD EX
and TS-Pro EX include white, black, and silver color change
kits. Additional color change kits are also available for the Solo-
6IR. The Solo-6IR UK version  ts into a 70mm square box. For
more info, visit: www.nilesaudio.com

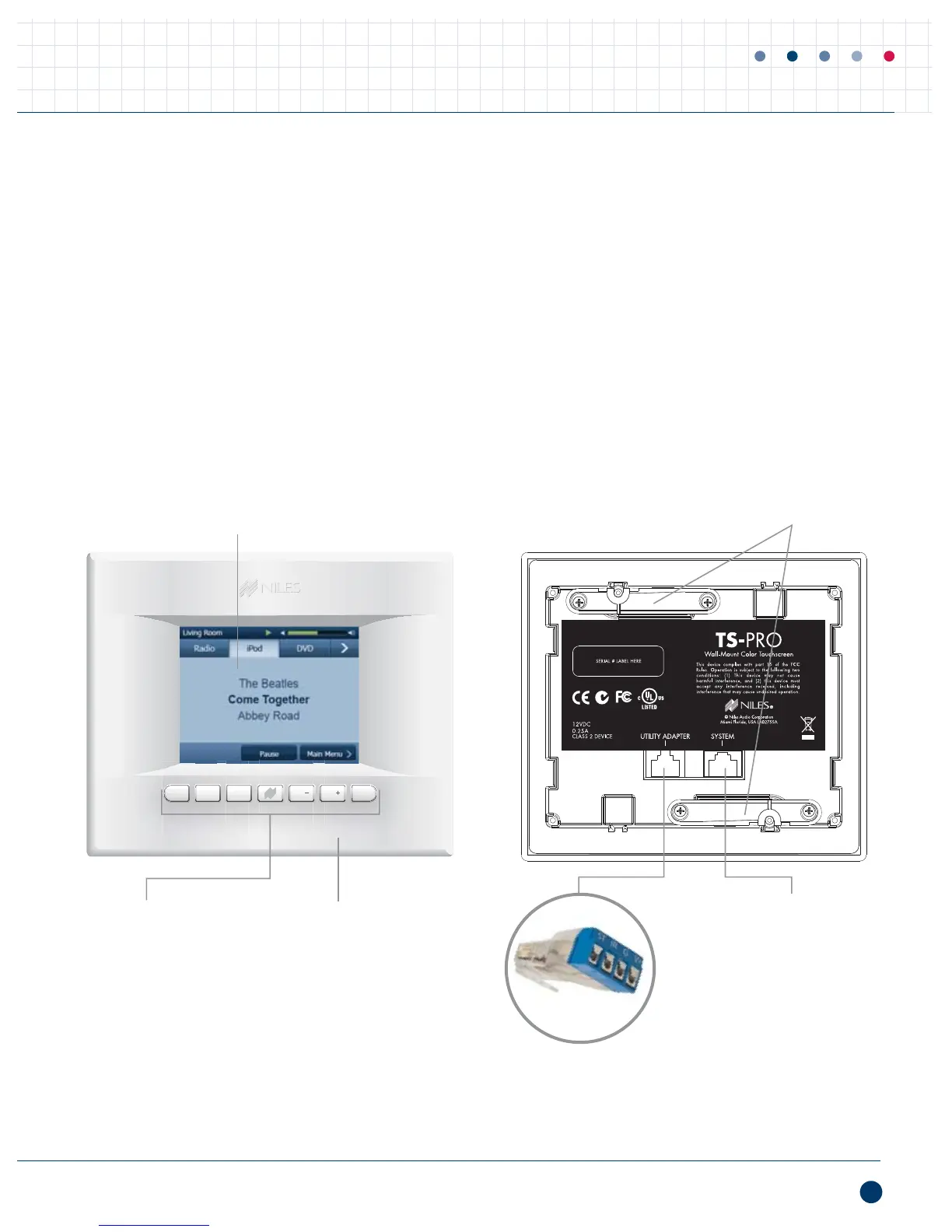

TS-PRO COLOR TOUCHSCREEN CONTROLLER
MUTEPREV VOLOFF NEXT VOL
FRONT
Color touchscreen provides a
crisp, easy-to-read interface
Backlit hard keys for easy
access to frequently used
commands
Screwless wallplate
snaps in place for a clean,
polished look
BACK
Top & bottom dog ears clamp
the TS-Pro securely in place
System Port connects to the
ZR-6 MultiZone Receiver
with CAT-5 cable
The TS-Pro uses an RJ-45 Utility
Adapter to connect an external
IR sensor
RJ-45 Utility Adapter
Included with
TS-Pro
