ZR-6 MULTIZONE SYSTEM DESIGN GUIDE

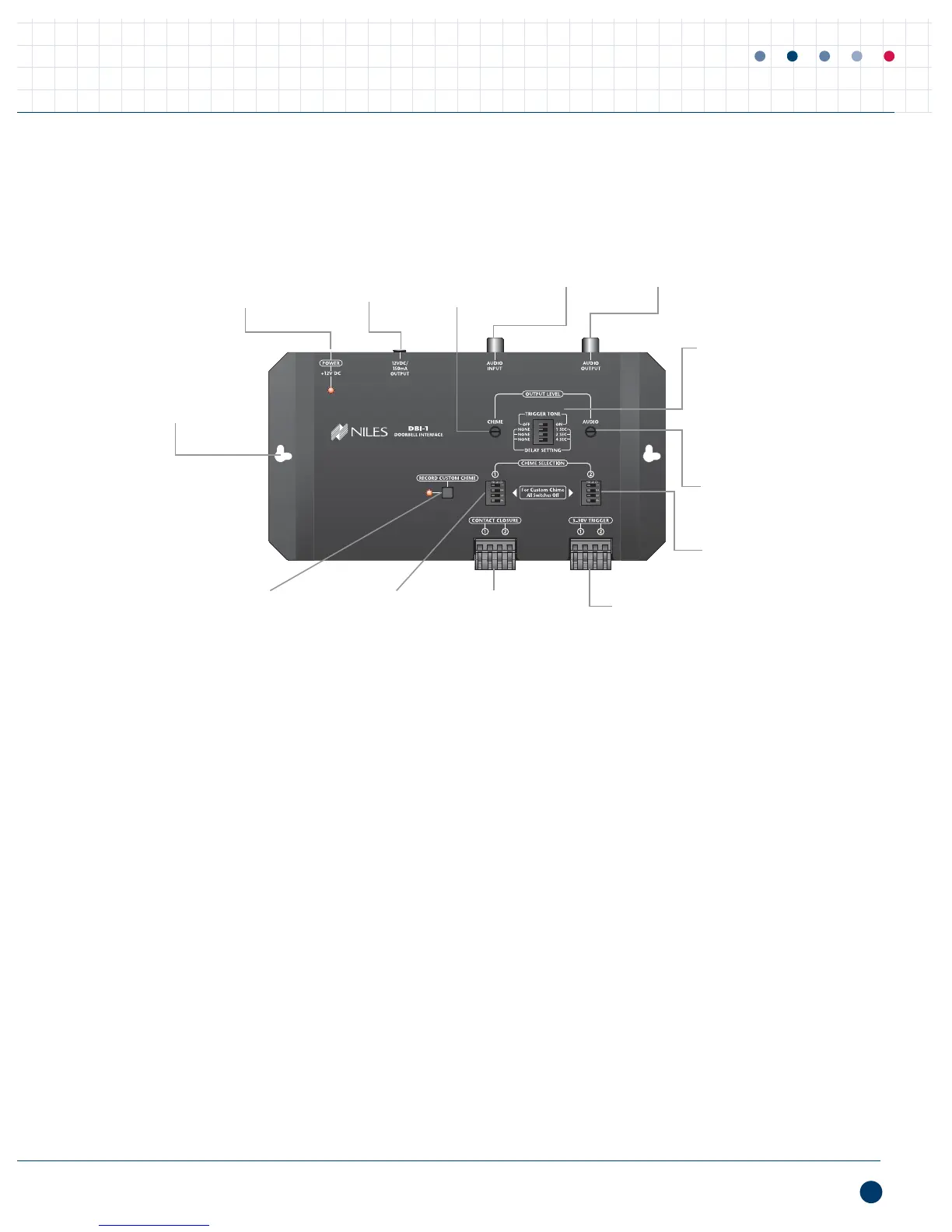

Screw Holes for Mounting
(screws not included)
DC Power Jack
and red LED
Power Indicator
12V DC 150mA
Voltage Trigger
Output
Chime
Output Level
Adjustment
RCA Audio
Input
RCA Audio
Output
Trigger Tone and
Delay Settings
Audio Output
Level Adjustment
Chime 2
Selection DIP
Switches
Chime 1 and 2
Voltage Triggers
Chime 1 Selection
DIP Switches
Custom Chime
Record Button and
Record Indicator
Chime 1 and 2
Contact Closure
Triggers
Features
■ Provides doorbell chimes to Niles MultiZone controllers
■ Four selectable preprogrammed chimes and one user recorded sound option
■ Two doorbell inputs, front and rear, triggered by voltage and contact closure via screwless two piece connector
■ Separate level adjustments provided for chime and page pass through
■ One gold-plated mono audio sensing input jack
■ One gold-plated mono audio output jack
■ UL-listed in-line power supply with universal voltage capability
Specifications
■ Dimensions: 7-7/8" wide x 1-1/8" high x 4-1/8" deep (20cm wide x 2.9cm high x 10.5cm deep)
