Steering System 114Service Manual – SC3000
Removal and Installation

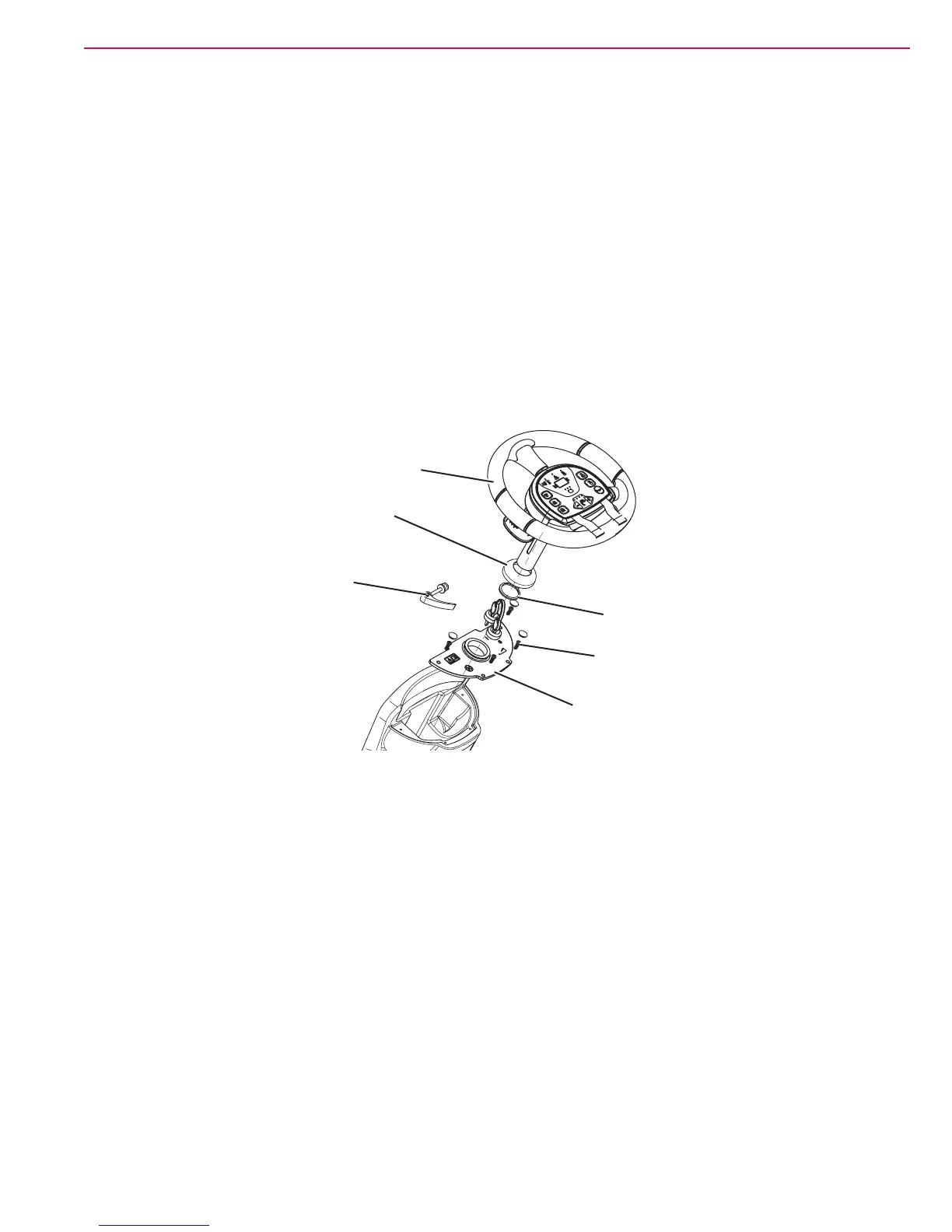

Front Fairing Disassembly/Assembly
Disassembly
1. Drivethemachineonaleveloorwiththerecoverytankempty.
2. Turn the ignition key to “0” and disconnect the batteries.
3. Unscrew the steering wheel height control lever (A).
4. Remove the steering wheel assembly (B), disconnect the wiring harness connection.
5. Remove the cover (C), then remove the Seeger ring (D).
6. Remove the caps, the screws (E) and the steering wheel plate (F).
7. Disconnect the ignition switch wiring harness.
B
C
D
A
E
F
P100394
