Service / Repair.
Fig. 2
Fig. 3

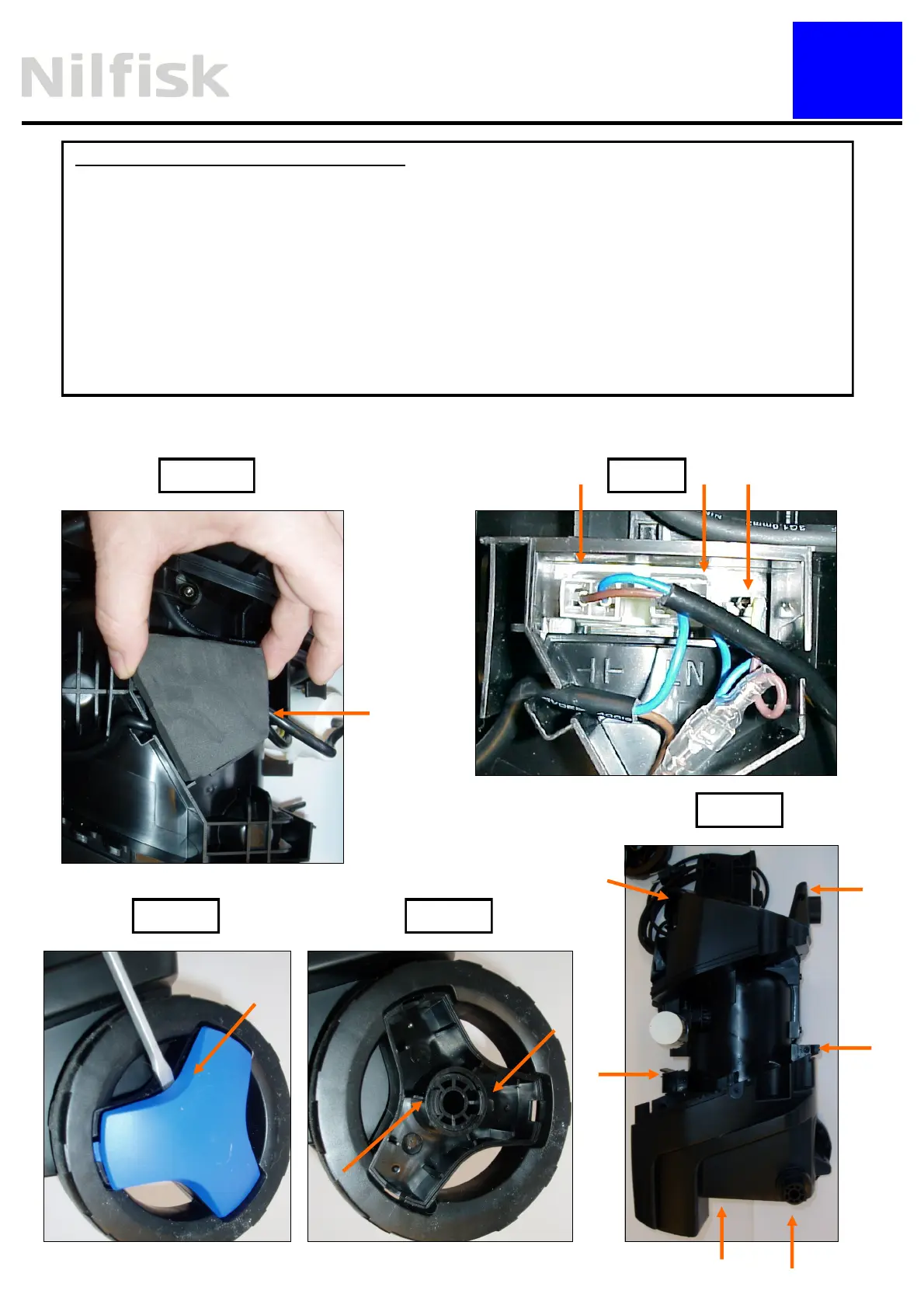

Dismount / Mounting of Motor cover.
1. Remove the foam plug protection (fig. 1)
2. Unplug the capacitor wire, the motor wire and the earth connection.
3. Turn the MPU to the other side so that the screws are visuable. Take off the wheel
cap—loosen it with a screw driver or similar (fig. 3) and then take off the wheel by
pressing the two taps together (fig. 4)
4. Remove the 6 torx (TX20) screws. (fig. 5) and then the top plastic part can easily be
removed!
Fig. 1
Fig. 4
Fig. 5
