Service / Repair.

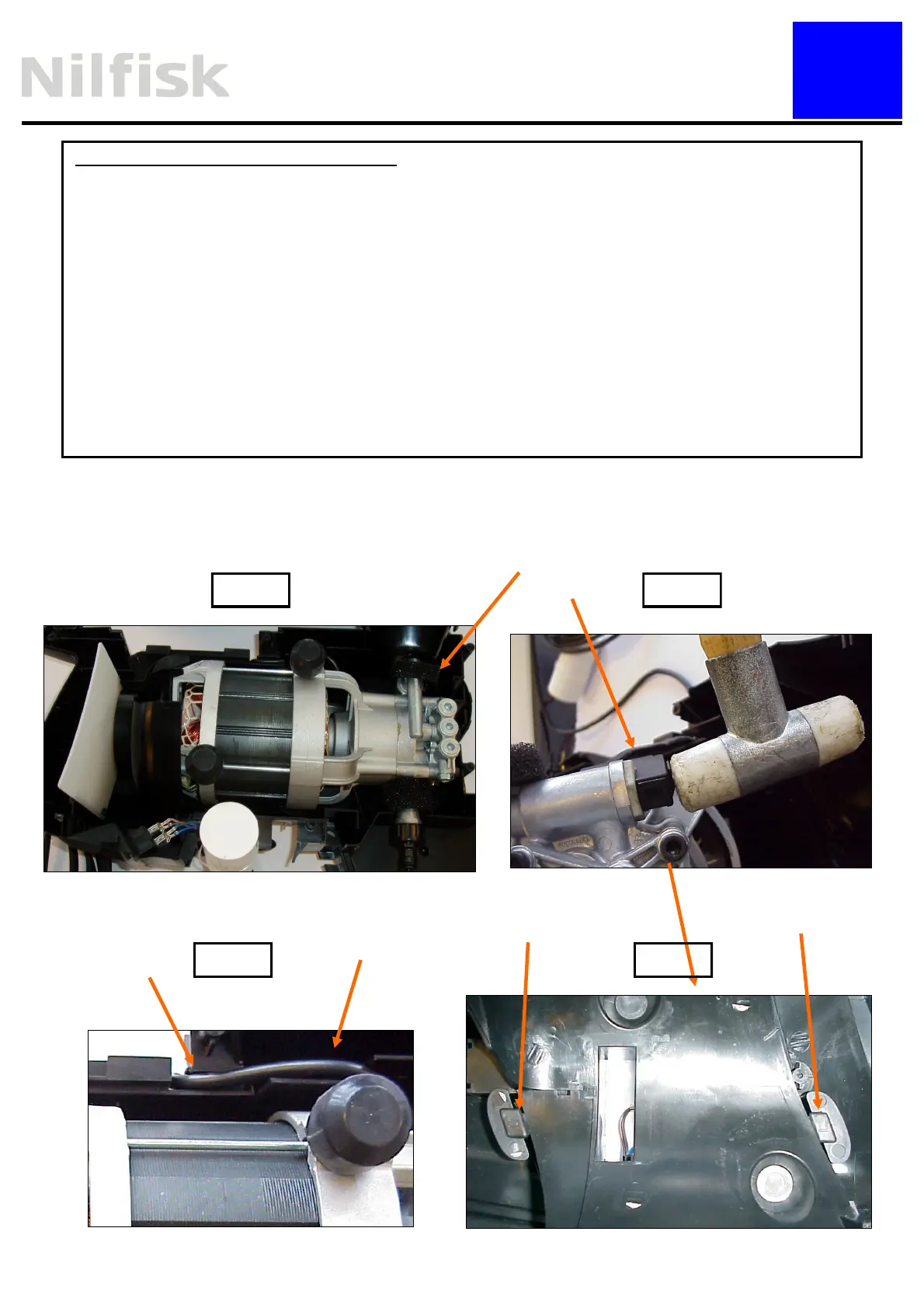

Fig. 1 Fig. 2
Fig. 4 Fig. 3
Dismount / mounting of motor cover.
The motor / pump unit can now be lifted up from the cabinet, but the micro switch house must
be dismounted before the MPU can be totally removed (fig. 1).
The micro switch box is removed by hand. It can be hard but it is just to be “broken” off!
When mounting the MPU again, first step is to mount the micro switch box. This can be done
by hand (alternatively use a plastic hammer (fig. 2), but be very careful to mount in the correct
position) Then place the MPU inside the cabinet, please be noted to place the wire correct
(fig. 3)
Be aware that the two rubber plugs (fig. 4) are mounted before to mount the MPU.
