5
C

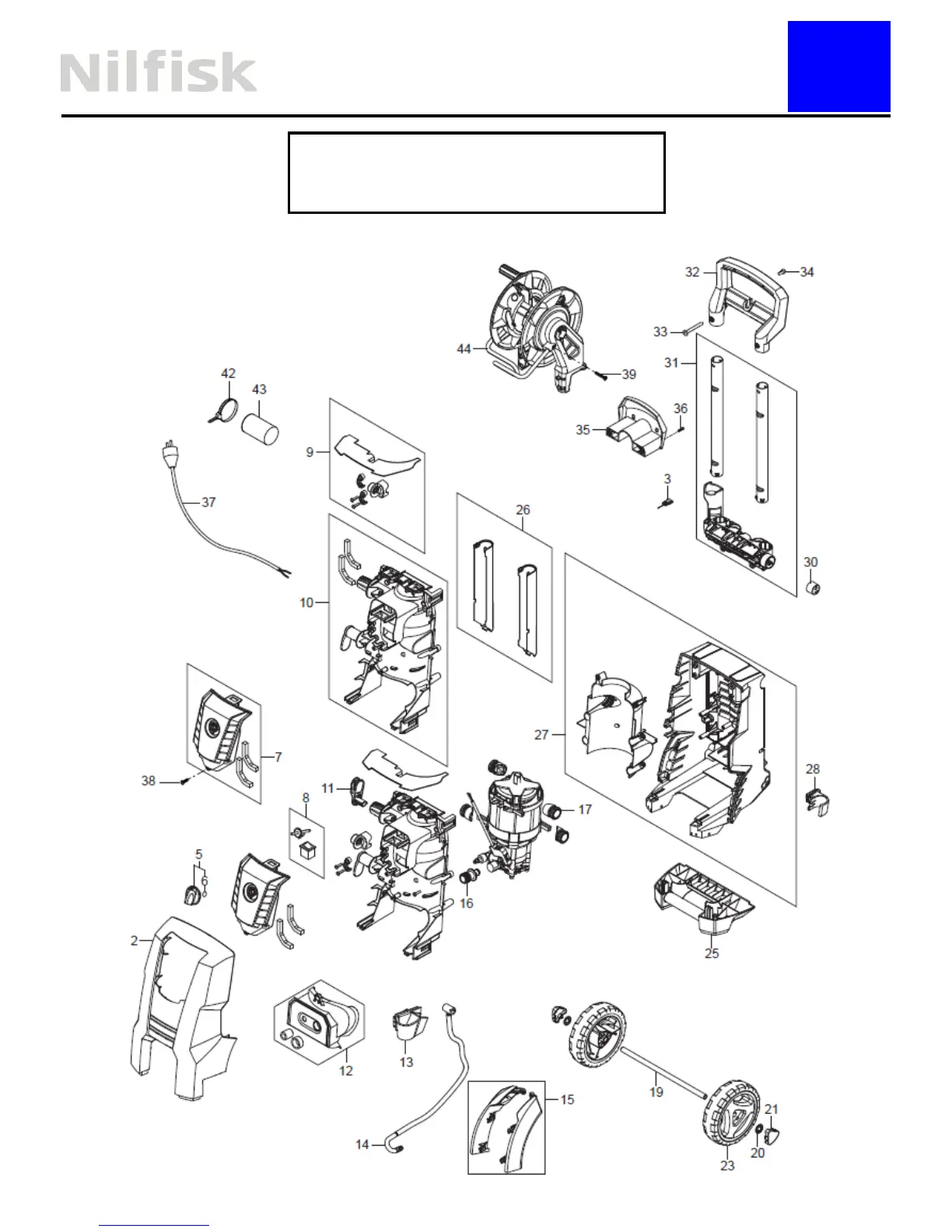

Structure.
Cabinet pa
r
ts overv
iew.
Max
. To
rque for plastic screws: 2,0 Nm
4
6
Table of Contents
Index
2
Safety Precautions
3
Technical Data
4
Structure
5
Cabinet Parts Overview
5
Hose Reel Overview
6
Motor / Pump Unit Overview
7
Service / Repair
8
Dismounting / Mounting of Front Cabinet
8
Disassembly / Assembly of Pump Cover
9
Disassembly / Assembly of Start / Stop System
10
Disassembly / Assembly of Switchbox Cover
11
Disassembly / Assembly of the Motor/Pump Unit
12
Disassembly / Assembly of the Switch
13
Disassembly / Assembly of the Motor / Pump Unit
14
Disassembly / Assembly of the Hose Reel / Internal Hose - X-TRA Models
15
Disassembly / Assembly of the Hose Reel - X-TRA Models
16
Disassembly / Assembly of the High Pressure Hose - X-TRA Models
17
Assembly of the Hose Reel - X-TRA Models
19
Disassembly / Assembly of the Easy Start Valve
20
Disassembly / Assembly of the Non Return Valve (NRV)
21
Disassembly / Assembly of the Pump
22
Guidance of Measuring the Resistance of Electrical Motor
24
Tools
25
Recommended Oil Types
25
Recommended Lubrication
25
Function
26
Motor Pump Function of New Excellent
26
Wiring Diagram
28
Electric Diagram
28
Circuit Diagram
29
