Nilfisk-Advance ecoflex BA 531D User Manual

ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
BA 451 / BA 451D / BA 531 / BA 531D / BA 551 / BA 551D / BA 551CD / BA 611D
CA 451 / CA 531 / CA 551
909 6756 000(5)2010-03
105

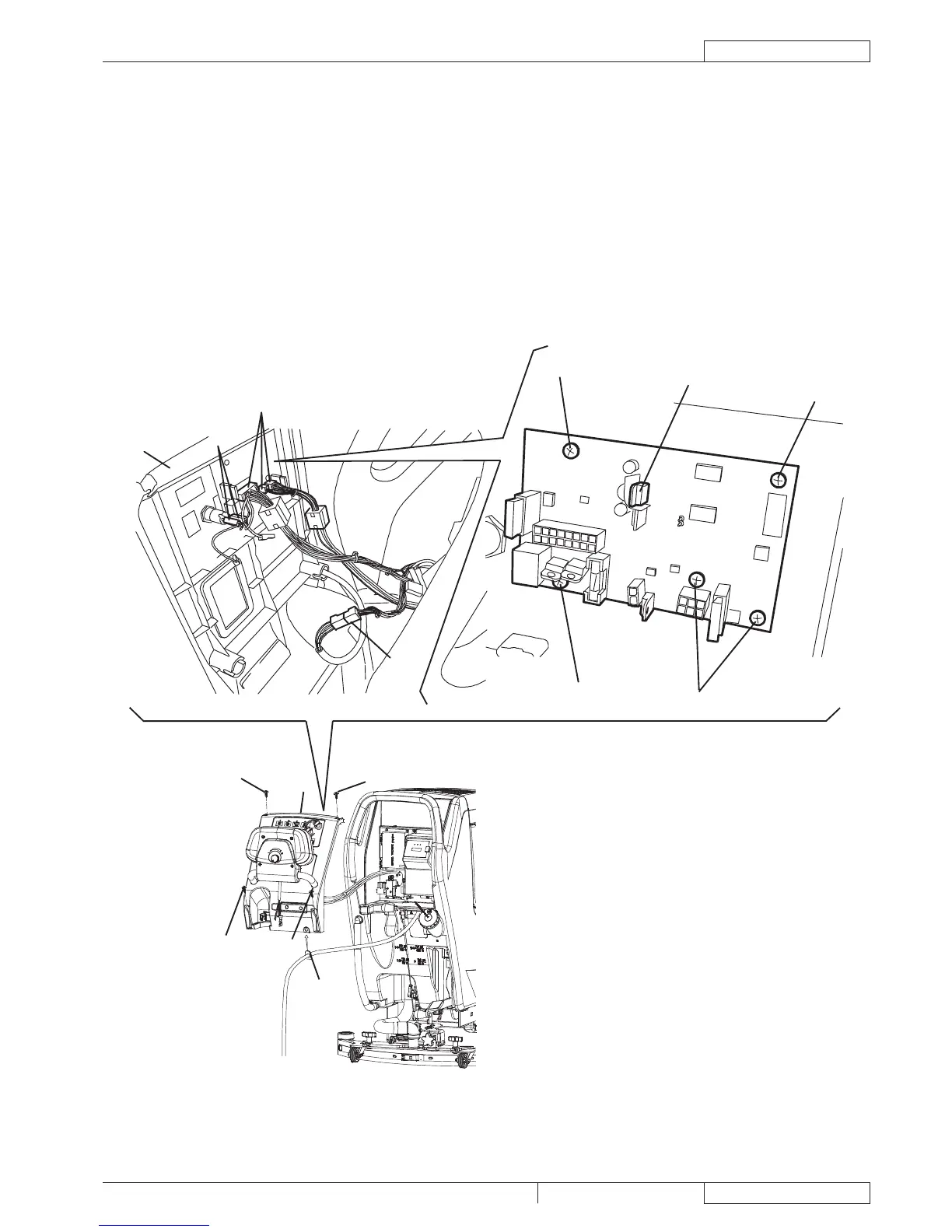

FUNCTION ELECTRONIC BOARD DISASSEMBLY/ASSEMBLY (For BA 451, BA 451D, BA 531, BA
531D, BA 551, BA 551D, BA 551CD, BA 611D)
Disassembly
Disconnect the battery connector (12).1.
Move aside the recovery water drain hose (16).2.
Remove the battery charger cable (6), if equipped, from the cable holder (7).3.
Remove the screws (A) and carefully move aside the panel (B) by disengaging the cable grommet (C) from its housing on the 4.
panel (B).
Disconnect the connectors (D), (E), (F), and remove the panel (B).5.
On the panel, remove the screws (G), then remove the function electronic board (H).6.
Assembly
Assemble the components in the reverse order of disassembly.7.
A
A
B
A
A
C
B
D
E
F
G
H
G
G
G
S301575

Nilfisk-Advance ecoflex BA 531D Specifications

General

Model	BA 531D
Category	Floor Machine
Power	Battery
Voltage	24V
Cleaning Width	530 mm
Tank Capacity (clean water)	40 L
Solution tank capacity	40 L
Recovery tank capacity	40 L
Battery Voltage	24V
Tank Capacity (dirty water)	40 L
Type	Walk-behind Scrubber Dryer
Battery Capacity	105 Ah
Machine Weight	150 kg
Noise Level	68 dB(A)
