Nilfisk-Advance ecoflex BA 531D User Manual

SOLUTION/CLEAN WATER SUPPLY SYSTEM
ENGLISH
SERVICE MANUAL
32
909 6756 000(5)2010-03
BA 451 / BA 451D / BA 531 / BA 531D / BA 551 / BA 551D / BA 551CD / BA 611D
CA 451 / CA 531 / CA 551

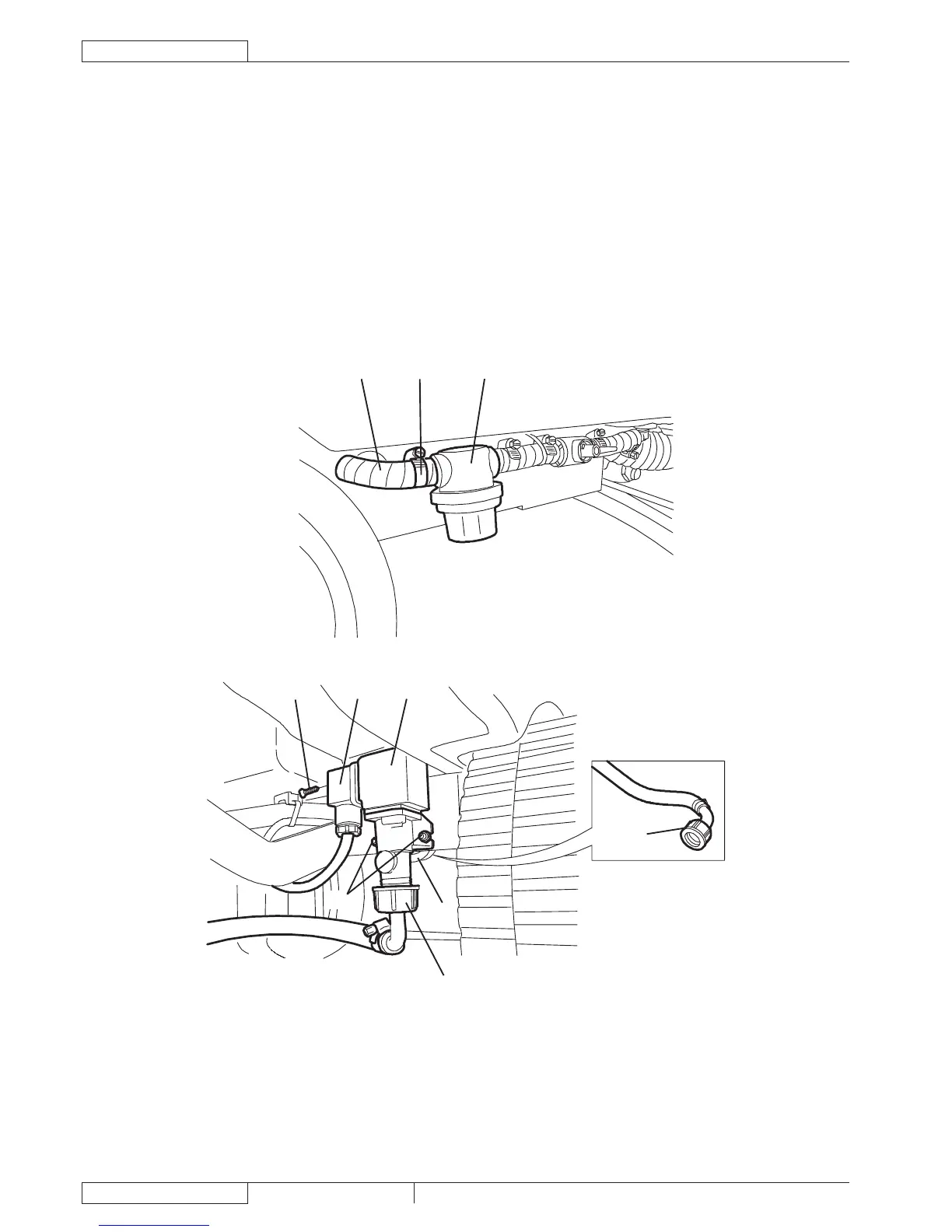

SOLENOID VALVE DISASSEMBLY/ASSEMBLY (For BA 551, BA 551D, BA 551CD, BA 611D, CA 551)
Disassembly
(1. For machines with brushes/pad-holders) Remove the brushes/pad-holders.
Lower the deck by pressing the pedal (11).2.
(3. For machines without EcoFlex™ system) Loosen the clamp (A) and disconnect the hoses (B) from the lter assembly (C).
Disconnect the union (D) from the solenoid valve (E) and recover the gasket.4.
Remove the screw (F), disconnect the connector (G) and recover the gasket.5.
Remove the nuts (H).6.
- (7. For machines without EcoFlex™ system) Remove the solenoid valve (E) with the hoses (B). If necessary,
separate the hoses (B) from the solenoid valve.
- (For machines with EcoFlex™ system) Move the solenoid valve (E) and disconnect it from the union (I).
Assembly
Assemble the components in the reverse order of disassembly.8.
BA C
F
GE
H
I
D
I
S301523

Nilfisk-Advance ecoflex BA 531D Specifications

General

Model	BA 531D
Category	Floor Machine
Power	Battery
Voltage	24V
Cleaning Width	530 mm
Tank Capacity (clean water)	40 L
Solution tank capacity	40 L
Recovery tank capacity	40 L
Battery Voltage	24V
Tank Capacity (dirty water)	40 L
Type	Walk-behind Scrubber Dryer
Battery Capacity	105 Ah
Machine Weight	150 kg
Noise Level	68 dB(A)
