SM_MC_6P Ver.2.0_2021
Service / Repair
42
F

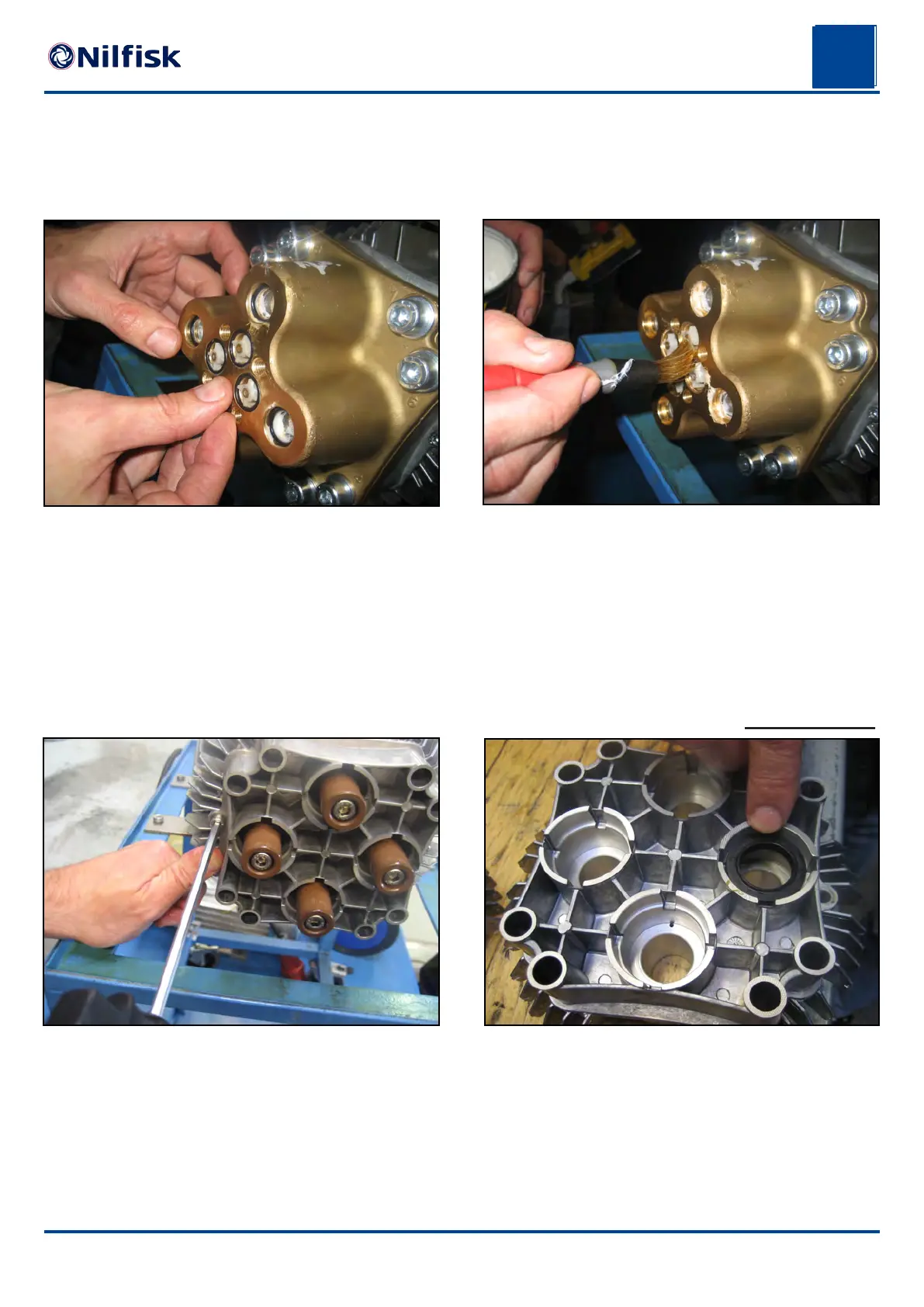

Pic. F14: Pressure and suction valves Pic. F15: Pressure and suction valves
• Lubricate by replacement of valves
Picture of piston guides
• The pressure valves can easily be taken
out of the cylinder head.
• Replace with new parts if necessary.
Pic. F16: Cylinder block
Cylinder Block
Pic. F17: Oil Seals
• Removal of cylinder block • Disassemble the oil sleeves using an
adequate puller or a screwdriver.
• Be careful not to damage the surface of
the cylinder block.
NEW !
Pump valves
