SM_MC_6P Ver.2.0_2021
Service / Repair
44
F

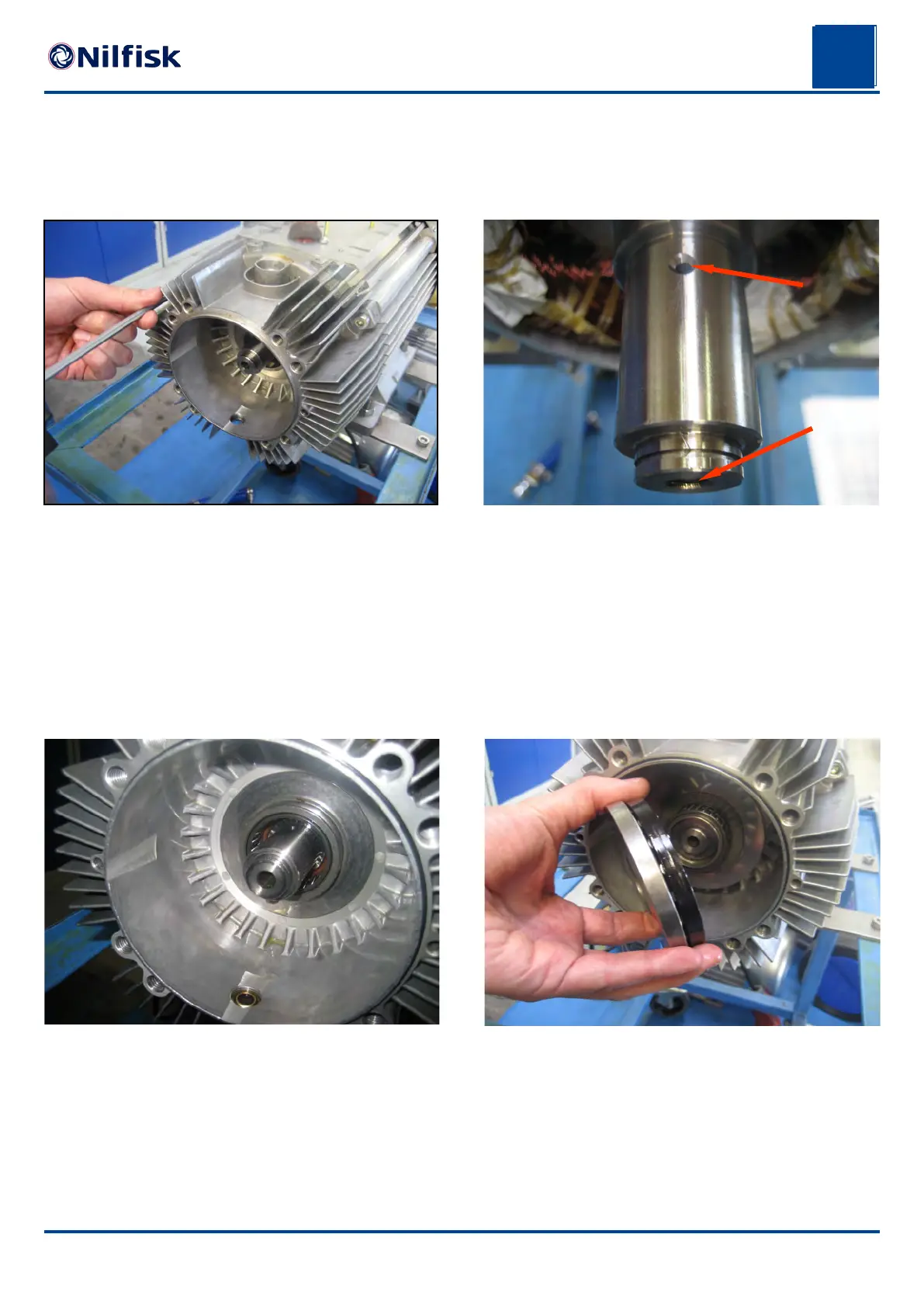

Pic. F24: D-bearing cover
Pic. F23: Motor shaft Pic. F22: D-bearing cover
• The D-bearing cover is mounted to the
Motor by four 6mm bolts.
• When the bearing is damaged, always
replace the complete D-bearing cover.
Pic. F25: Woble disc system
• Motor shaft with lubrication holes—for
better lubrication of the woble disc
system.
• Make sure to clean the lubrication
channel through the 2 holes (see arrows
above).
• Overview of the D-bearing cover with
bearing and bearing track.
• Assemble of complete woble disc
system.
D-bearing cover
