INSTALL THE BRUSH

1 Make sure the Scrub Deck (8) is in the RAISED position. Make sure the Key Switch (A) is off (O).

CAUTION !

Turn the key switch off (O) and remove the key, before changing the brush.

2 See Figure 2. Rotate the Squeegee Assembly (10) away from your side of the machine to create better access to the brush, (AA).

3 Lift the Scrub Deck Skirt (AB) up and slide the brush under the scrub deck.

4 If using a pad, install the pad on the pad holder.

5 To mount the Brush (AC) (or pad holder) lift the brush and align the Lugs (AD) on the brush with the holes on the mounting plate then turn to lock in place

(from the right side of the machine, turn the outside edge of brush towards the rear of machine as shown (AE)). NOTE: During operation the brush should

rotate in direction (AF).

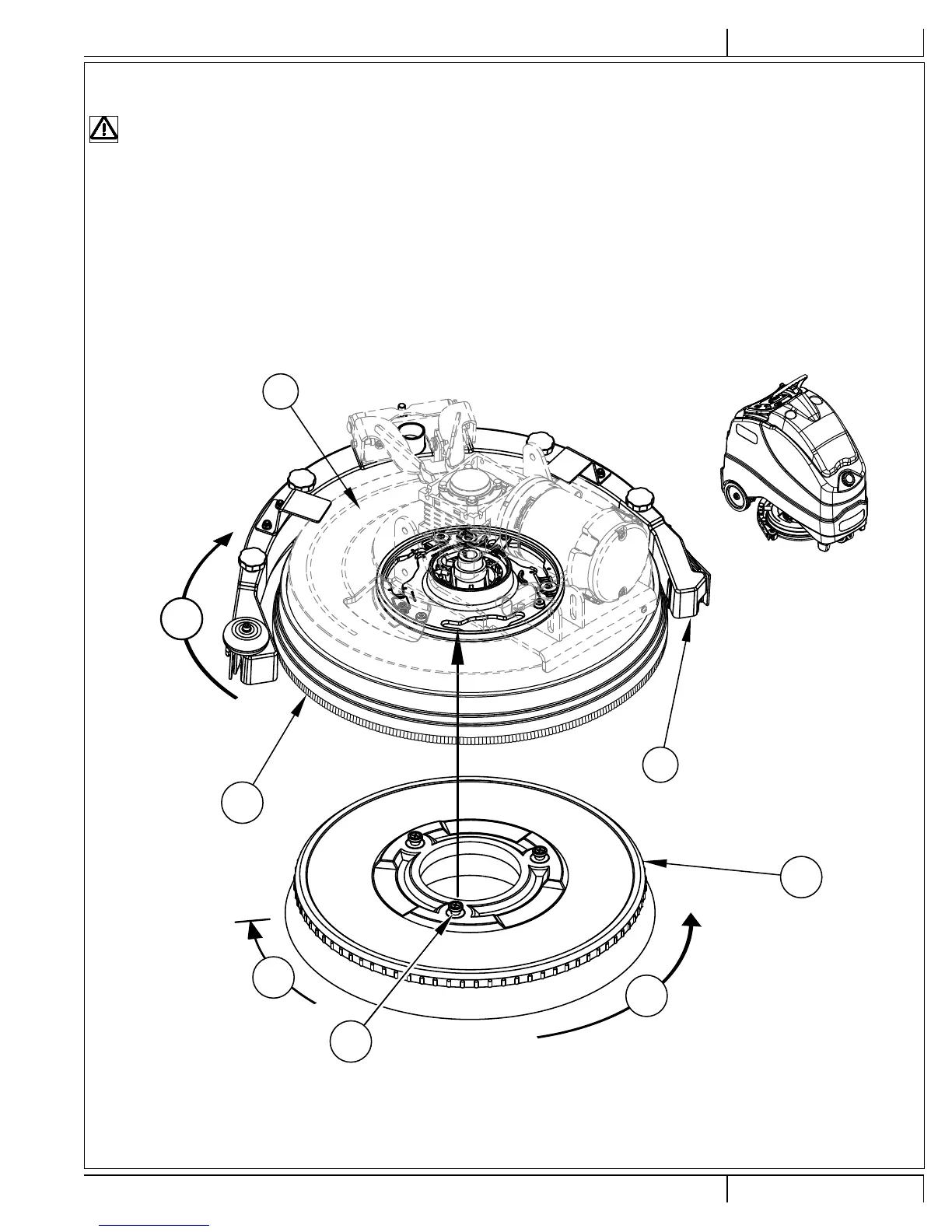

FIGURE 2
