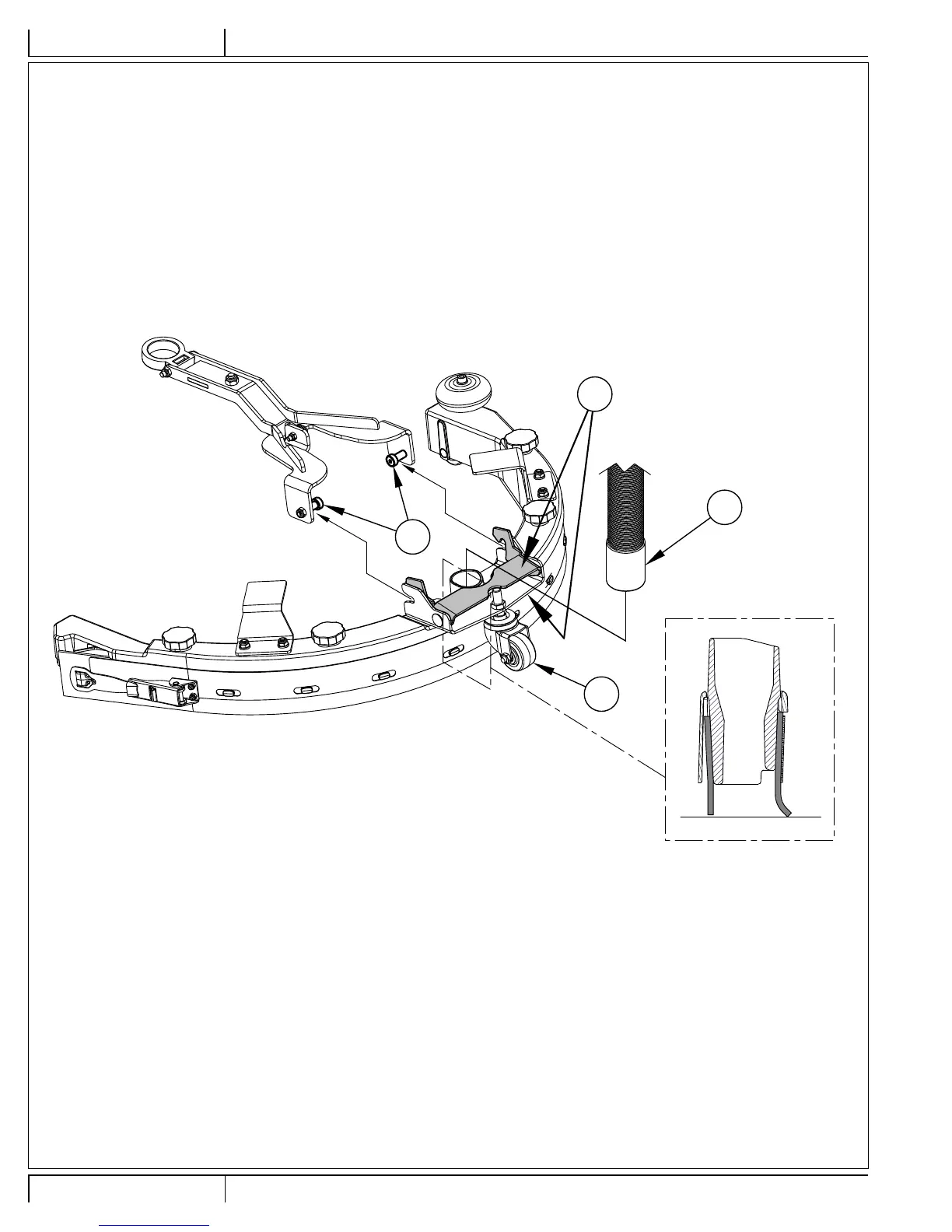

INSTALL THE SQUEEGEE
1 See Figure 4. Squeeze the back of the Squeegee Mount Bracket (AA) to open and release the bracket once it’s in place over the deck arm Pins (AB).
2 Connect the Recovery Hose (AC) to the squeegee inlet.
3 Lower the scrub deck and squeegee, move the machine ahead slightly. If necessary adjust the rear squeegee height using the Rear Caster Wheel (AD) so
that the rear squeegee blade touches the fl oor evenly across its entire width and is bent over slightly as shown in the squeegee cross section (AE).
FIGURE 4
AC
AA
AD
AB
AE
