Nilfisk-Advance SC500 User Manual

ENGLISH INSTRUCTIONS FOR USE
6 SC500 - 9099974000
11/2014
revised 07/2017
MACHINE DESCRIPTION

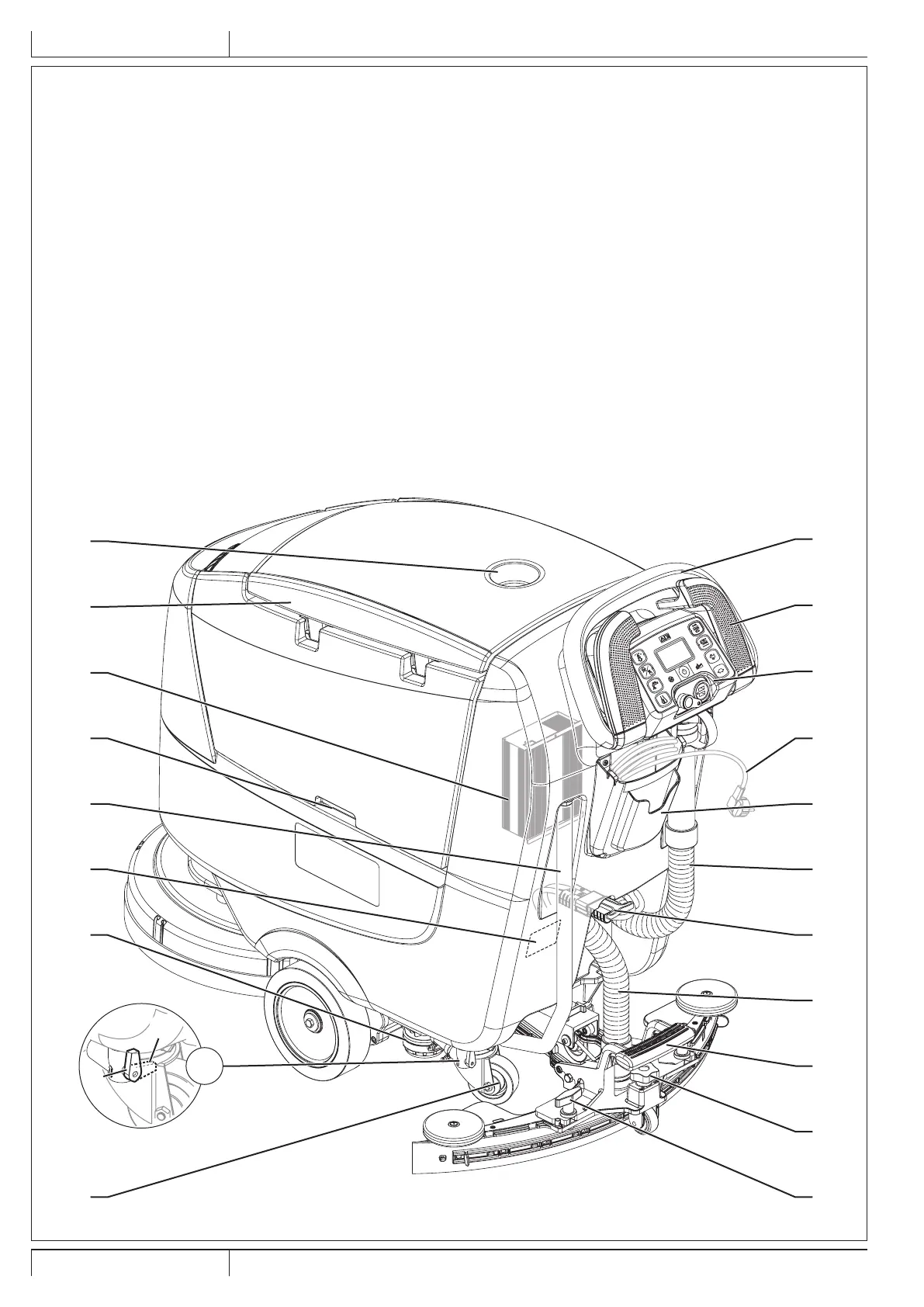

MACHINE STRUCTURE
1. Drive handlebar
2. Forward/reverse gear and activation paddle
3. Control panel
4. Serial number plate/technical data/conformity certication
5. Battery charger (*)
6. Battery charger cable (*)
7. Battery charger cable housing and document holder
8. Squeegee lifting/lowering pedal
9. Battery connector (red).
This connector also works as EMERGENCY push-button,
to stop immediately all functions.
10. Rear pivoting wheels
11. Squeegee vacuum hose
12. Recovery water drain hose
13. Solution drain and level check hose
14. Squeegee mounting handwheels
15. Squeegee adjusting knob
16. Tank lifting handle
17. Solution lter
18. Solution valve:
A) Open valve
B) Closed valve
19. Recovery tank cover
20. Can holder
(*) Optional for BASIC version
16
5
13
4
17
10
14
15
8
11
9
12
7
6
3
2
1
19
20
B
A
18
P100837
