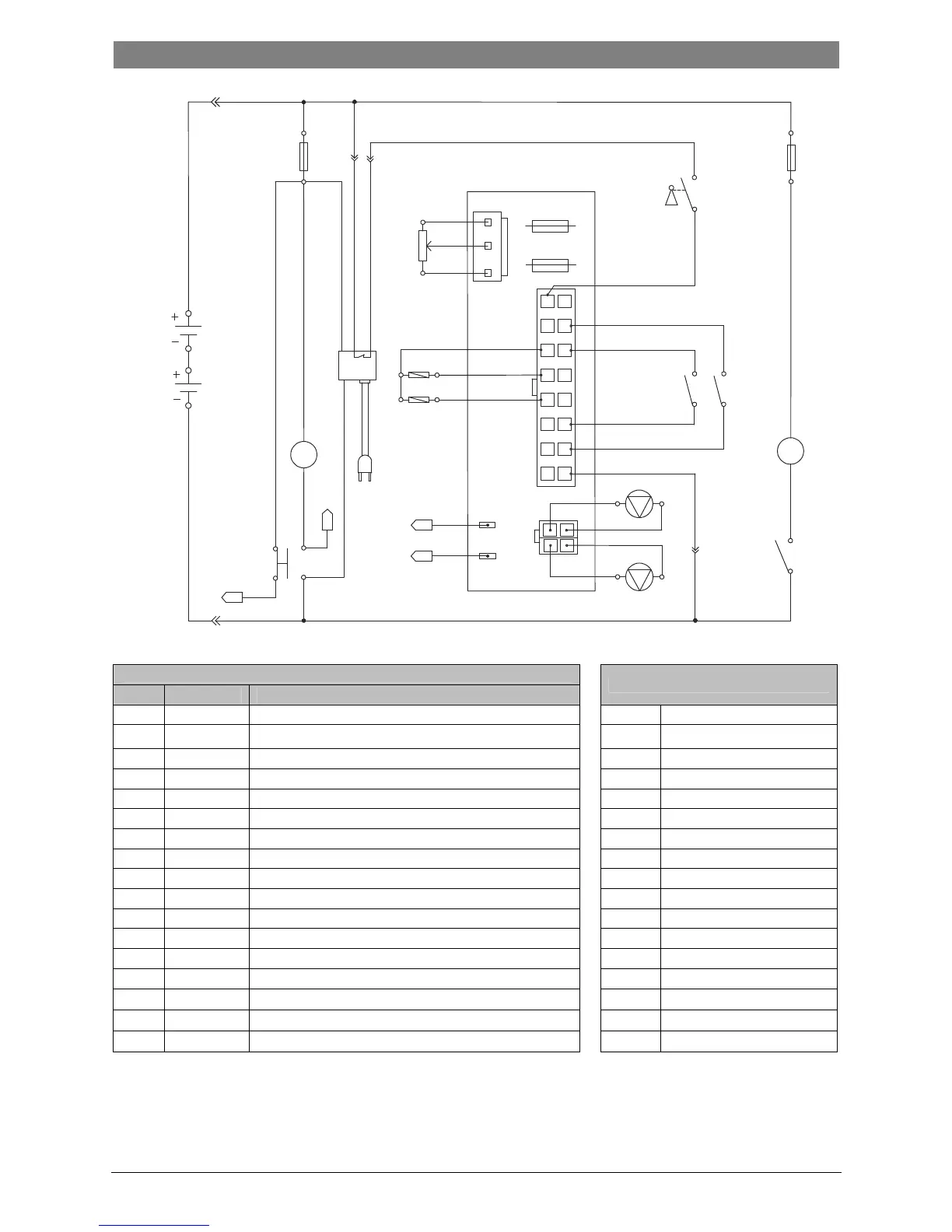

WIRING DIAGRAM (MACHINE WITHOUT TRACTION)
COMPONENTS
WIRE ROD
Key CODE Description
BAT N/A 24V BATTERIES
RD1 RED/6AWG
CH VS10204 BATTERY CHARGER
RD2 RED/10AWG
EB1 VS13201 CONTROL PANEL BOARD
RD4 RED/20AWG
ES1 9095127000
ELECTROMAGNETIC SWITCH 24V (BRUSH MOTOR)
BK1 BLACK/6AWG
ES2 VS10201 RELAY 24V (VACUUM MOTOR)
BK2 BLACK/10AWG
F1 VS13208 LOW POWER CIRCUIT FUSE
BK3 BLACK/12AWG
F2 ZD48320 CIRCUIT BREAKER (BRUSH MOTOR)
BK5 BLACK/20AWG
F3 VS13209 BRUSH RELEASE FUSE
BK6 BLACK/16AWG
F5 ZD48320 CIRCUIT BREAKER (VACUUM MOTOR)
RD-BK
RED-BLACK/20AWG
K1 9100001354
KEY SWITCH
BN1 BROWN/12AWG
M1 VS10702 BRUSH MOTOR
BN3 BROWN/20AWG
M2 VF90520 VACUUM MOTOR
BN-BK
BROWN-BLACK/20AWG
M4 VF90282 SOLENOID VALVE
BU BLUE/20AWG
M5 N/A DETERGENT PUMP (**)
BU-BK
BLUE-BLACK/20AWG
SW1 VS10202 SAFETY SWITCH (BRUSH)
YE YELLOW/20AWG
SW2 VS10202 SAFETY SWITCH (BRUSH)
WH WHITE/20AWG
VR2 N/A DETERGENT PUMP POTENTIOMETER (**)
(**) = For machines with Chemical Mixing System (Optional)
BAT
CH
K1
M1
M2
EB1
ES1
ES2
F2
F5
RD1
RD2
RD2
BN1
BK3
BN3
RD2
BK3
BK2
BK5
BK2
BK1
NC
F1
F3
SW1
RD4
RD-BK
BK2
RD2
J1
SW2
IN1
8
9
1
16
ES1
ES2
BN-BK
YE
BU-BK
BN3
BU
BN3
RD-BK
BK6
BK6
2
6
7
3
4
5
10
11
14
15
12
13
IN1
BU
BK6
IN2
J5
J4
IN2
BK6
BK5
M4
WH
J2
BU
EV
RD4
VR2
J6
WH
WH
WH
BN3
