23
SQUEEGEE BLADE CHECK AND
REPLACEMENT
1. Clean the steel or the aluminum squeegee, as shown in the
previous paragraph.
2. Check that the edges (E, Figure. 22) of the front blade (C) and
the edges (F) of the rear blade (D) lay down on the same level,
along their length; if necessary adjust their height according to
the following procedure:
• Remove the tie rod (G), disengage the fasteners (M) and adjust
the rear blade (D), then engage the fasteners (M) and install the
tie rod (G).
• Loosen the knobs (I) and adjust the front blade (C), then
tighten the knobs.
3. Check the front blade (C) and rear blade (D) for wear, cuts and
tears; if necessary replace them according to the following
procedure. Check that the front corner (J) of the rear blade (D)
is not worn; if necessary, overturn the blade to replace the worn
corner with an integral one. If the other corners are worn too,
replace the blade according to the following procedure:
• Remove the tie rod (G), disengage the fasteners (M) and
remove the retaining strip (K), then replace/overturn the rear
blade (D). Assemble the blade in the reverse order of
disassembly.
• Unscrew the knobs (I) and remove the retaining strip (L), then
replace the front blade (C). Assemble the blade in the reverse
order of disassembly. After the blade replacement (or
overturning), adjust the height as shown in the previous step.

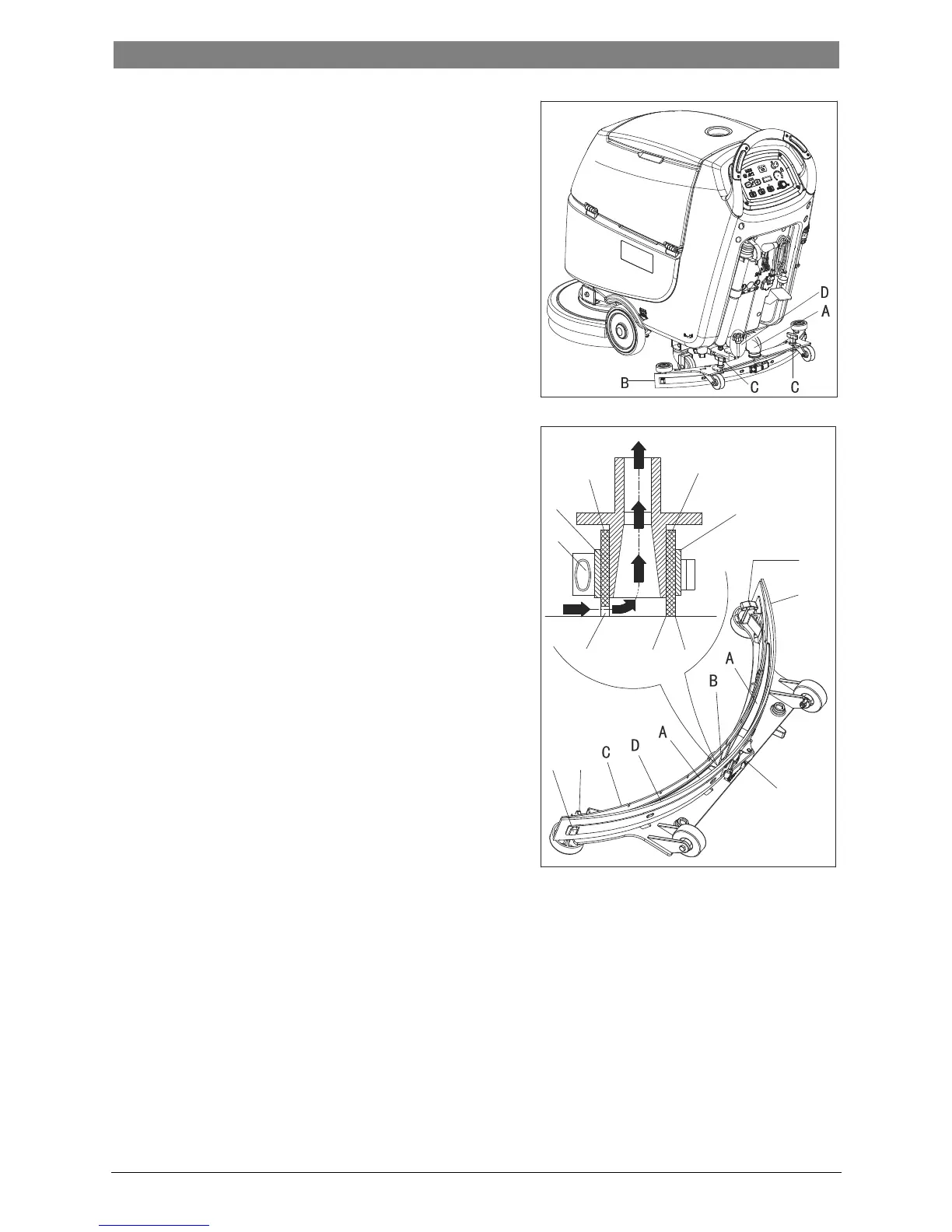

4. Connect the vacuum hose (A, Figure. 21) to the squeegee.
5. Install the squeegee (B) and screw down the knobs (C).
6. If necessary, adjust the squeegee balance adjusting knob (D).
Figure 21
Figure 22
D
B
C
C
A
A
A
B
D
C
E J F
K
D
C
L
I
M I
G
M
I
