Nilfisk-Advance Shadow 17 User Manual

FORM NO. 56041342 / SHADOW
™
17/20 - 15
Item Ref. No. Qty Description
L
N
G
M~
S
120Vac / 230Vac
BLKBLK
WHT
GRN
WHT
230V ONLY
revised 2/00
BASE SYSTEM
Item Ref. No. Qty Description
1 56003318 8 Scr, Hex Hd Loc 1/4-20 x 1.25
2 56009001 4 Wsh, Bowed .51 x .90 x .008
3 56009002 10 Wsh, Flt .26 x .90 x .06
4 56003039 2 Scr, Hex Loc 1/4-20 x .50
5 56009209 3 Scr, Pan Phil 10-24 x 1.00
6 56201011 1 Arm, Handle Latch
7 56201089 1 Axle
8 56201017 1 Base Housing 17"
* 56201012 1 Base Housing 20"
9 56201018 2 Wheel 5.00 x 1.50
10 56201019 1 Cover, Motor
11 56201040 1 Motor/Gearbox 1.25HP, 10:1 (120V)
* 56201037 1 Bearing, Front
* 56201038 1 Switch, Stationary
* 56201039 1 Switch, Rotor
* 56201042 1 Capacitor, Start
* 56201043 1 Gear Head Assembly
* 56201044 1 Pinion, 13 Teeth
* 56201045 1 Coupling
56201051 1 Motor/Gearbox 1.5HP, 6.25:1 (230V)
12 56201055 1 Shroud, Motor (120V)
13 56486116 1 Grommet (120V)
14 56016480 1 Decal, Shadow 17
* 56016479 1 Decal, Shadow 20
** 56201075 1 Weight Kit, 17"
** 56201062 1 Weight Kit, 20"
56505910 1 Pad Holder Assy 17 (standard)
56505920 1 Pad Holder Assy 20 (standard)
** 56505270 1 Level-Set Pad Holder 17
** 56505280 1 Level-Set Pad Holder 20
** 56505915 1 ProLite™ Brush 17
** 56505925 1 ProLite™ Brush 20
** 56505914 1 Prolene Brush 17
** 56505924 1 Prolene Brush 20
** 56505911 1 MagnaGrit™ 46 Brush 17
** 56505921 1 MagnaGrit™ 46 Brush 20
** 56505912 1 DynaGrit™ 80 Brush 17
** 56505922 1 DynaGrit™ 80 Brush 20
** 56505918 1 MidLite Grit™ 180 Brush 17
** 56505928 1 MidLite Grit™ 180 Brush 20
** 56505917 1 MidGrit™ 240 Brush 17
** 56505927 1 MidGrit™ 240 Brush 20
** 56505913 1 AgLite™ 500 Brush 17
** 56505923 1 AgLite™ 500 Brush 20
** 56505916 1 Union Mix Brush 17
** 56505926 1 Union Mix Brush 20
** 56505539 1 Soft-Touch™ Shampoo Brush 17
** 56505540 1 Soft-Touch™ Shampoo Brush 20
** 56506006 A/R Clutch Plate for Above Brushes
** 56393567 A/R “Big Mouth” Pad Retainer
* = Not Shown
** = Optional
NOTE: Pad Holders and Brushes come complete with Industry Standard NP-92 Clutch Plate.

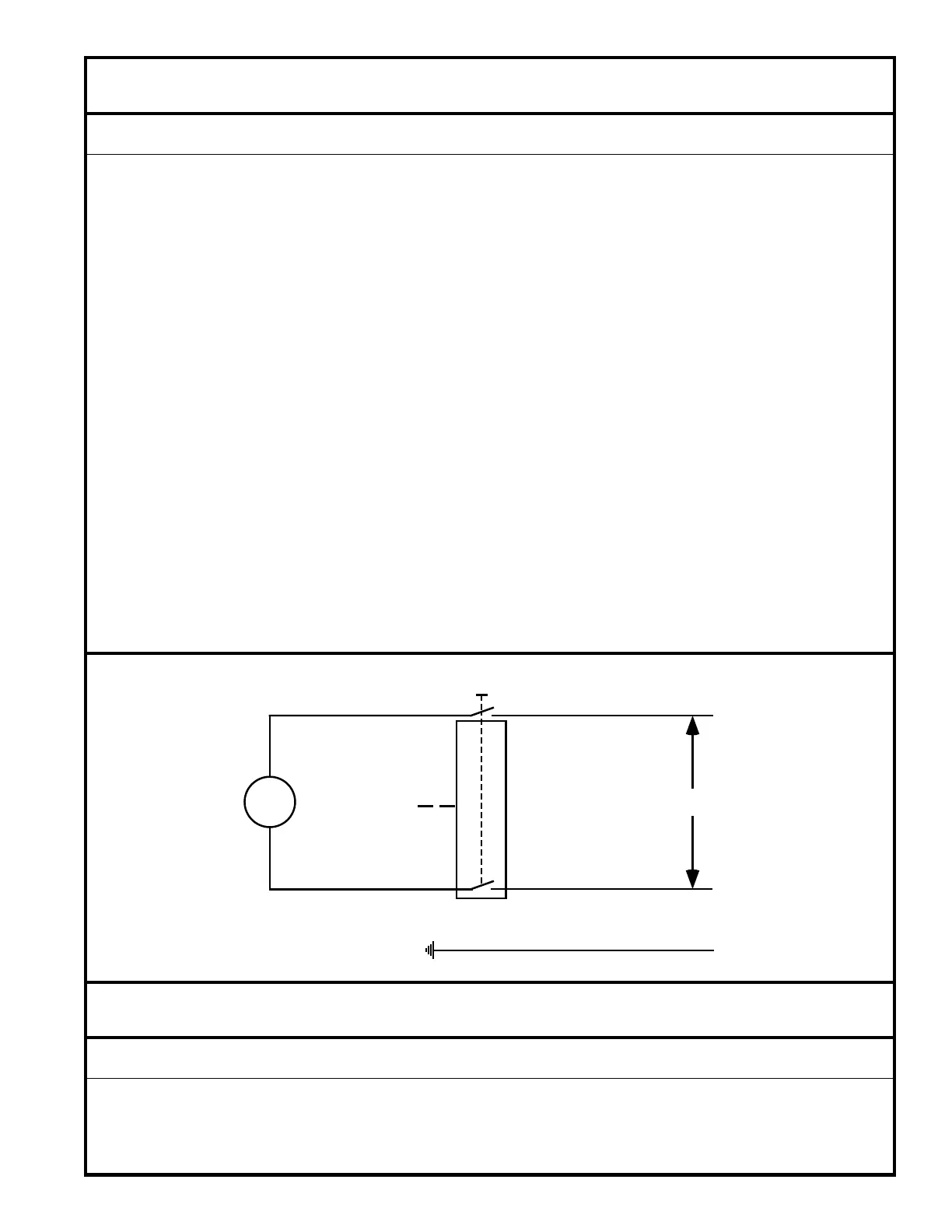

WIRING DIAGRAM
Item Ref. No. Qty Description
S 56201034 1 Switch, N.O. SPST Snap (120V)
56201053 1 Switch, N.O. DPDT (230V)
M 56201040 1 Motor/Gearbox 1.25HP, 10:1 (120V)
56201051 1 Motor/Gearbox 1.5HP, 6.25:1 (230V)
