Trouble shooting

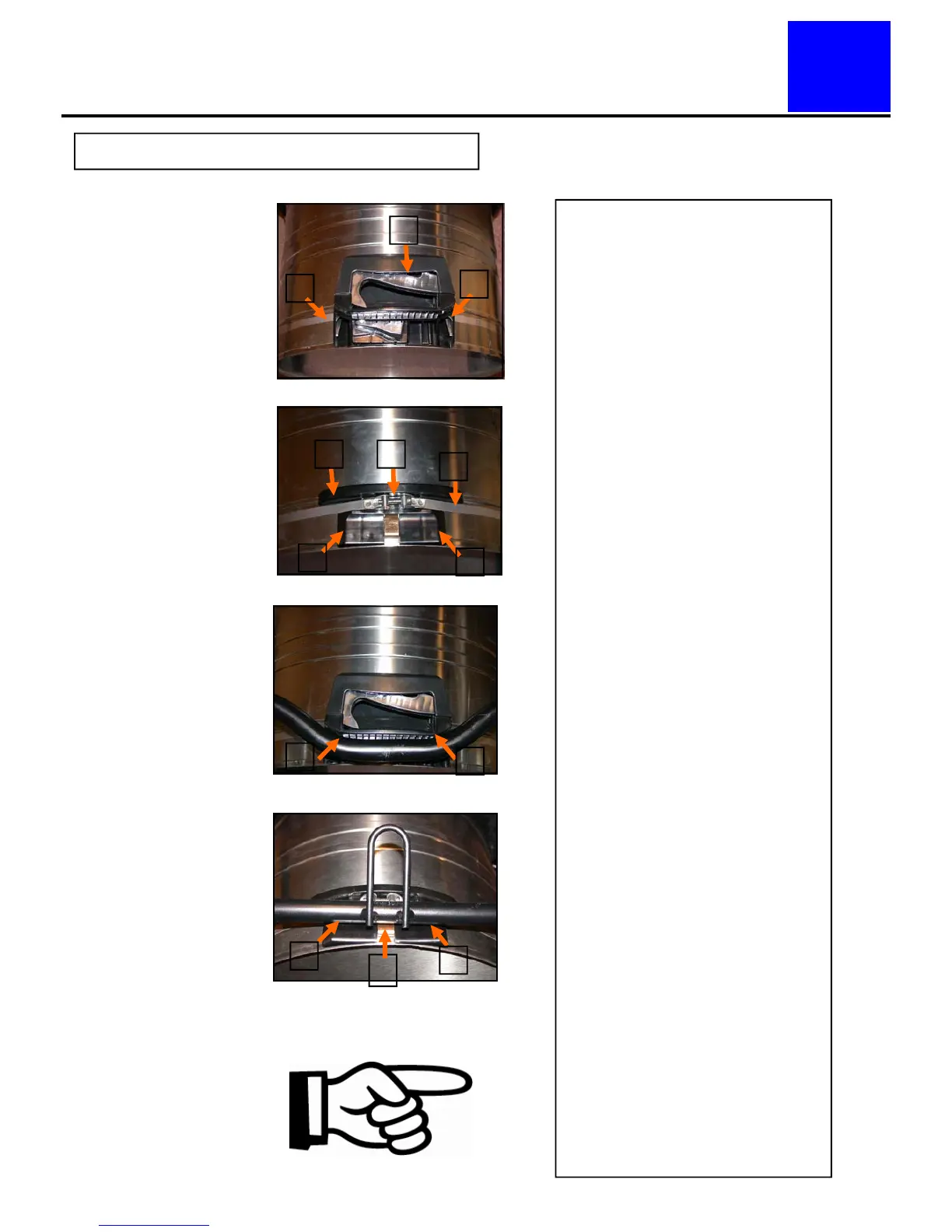

Removing/fitting grip with tensioning band
1. Take the cleaner head
with the adapter ring off
the container, and lift the
container out of the base
frame.
2. Mark (1) the position of
the grip (4) and the facing
stop (5) on the container.
3. Undo the screw (2) on
the tensioning band (3)
with a screwdriver, and remove
the grip (4) and tensioning
band (3).
4. Fit in the reverse order,
placing the grip (4) and
stop (5) between the markings
and lightly tightening
the screw (2) on the tensioning
band (3).
5. Set the container in the
base frame, and lock it in
place.
6. Align the grip (4) and
stop (5) on the container in
the base frame (7), and
firmly tighten the screw (2)
on the tensioning band (3)
Note:
The contact faces of the
contact spring (6) must be
clean and free of corrosion.
