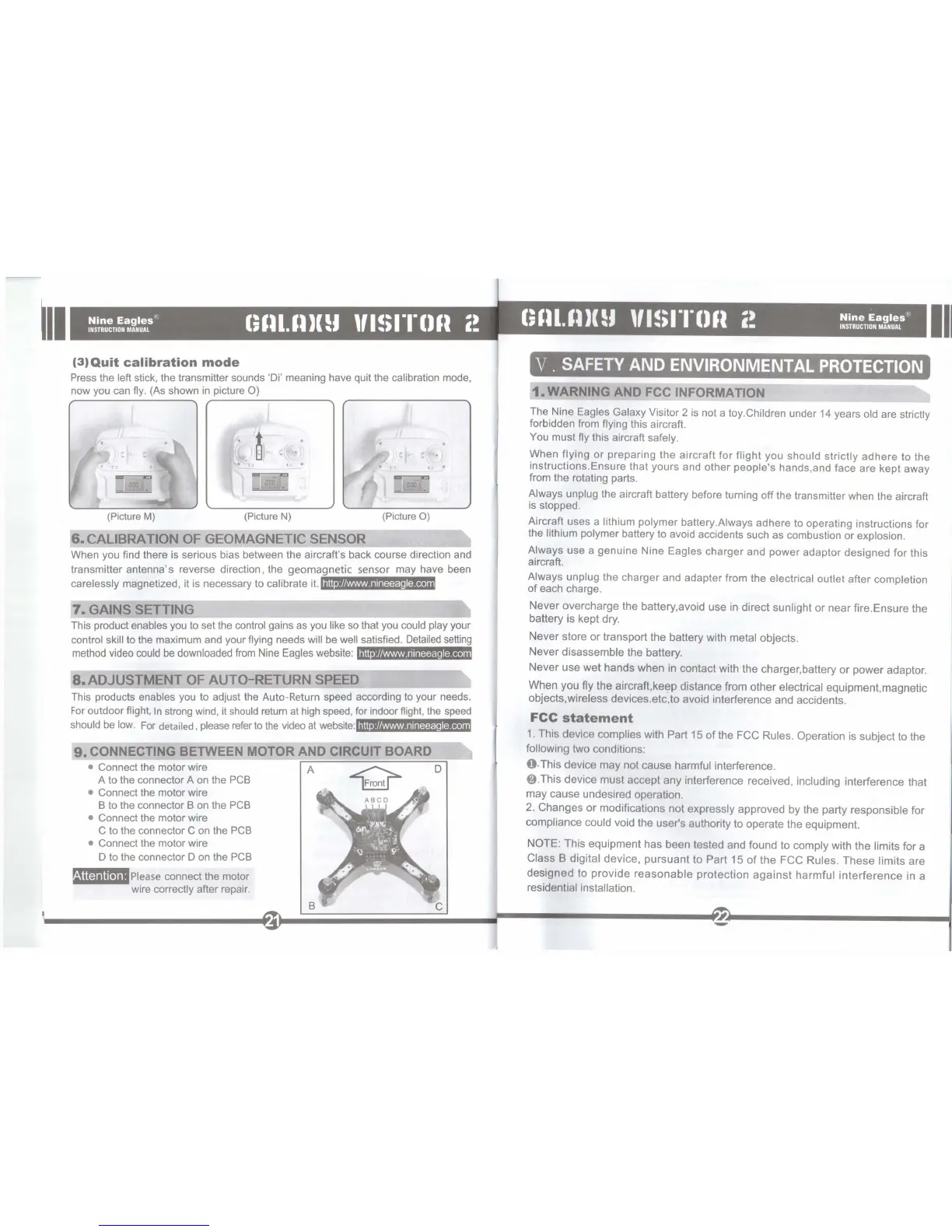

III
(3)
Quit
calibration
mode
Press the left stick, the transmitter sounds 'Oi' meaning have quit the calibration mode,
now you can fly. (As shown
in
0)
r---------------~
~
(Picture
M)
(Picture
N)
(Picture
0)
6.
CALIBRATION OF GEOMAGNETIC SENSOR
When you find there is serious bias between the aircraft's back course direction and
transmitter antenna's reverse direction, the
geomagnetic
sensor may have been
carelessly magnetized, it is necessary to calibrate it. -
http://www.nineeagle.
com
7.
GAINS SETTING
This product enables you to set the control gains
as
you like so that you could play your
control
skill to the maximum and your flying needs will be well satisfied.
Detailed
setting
method video could
be
downloaded
from
Nine Eagles website:
http
://www.nineeagle.
com
8.
ADJUSTMENT OF AUTO-RETURN SPEED
This products enables you to adjust the Auto-Return speed according to your needs.
For
outdoor flight,
In
strong wind, it
should
return
at
high
speed, for indoor flight,
the
speed
should
be
low.
For
detailed, please
refer
to
the
video
at
website:
http
://www.nineeagle.com
9.
CONNECTING BETWEEN MOTOR AND CIRCUIT BOARD
• Connect the motor wire
A to the connector A on the
PCB
•
Connect the motor wire
B to the connector B on the
PCB
•
Connect the motor wire
C to the connector C on the PCB
•
Connect the motor wire
o to the connector 0 on the PCB
MIAil!t",gPlease
connect the motor
wire correctly after repair.
i
A
o
v .
SAFETY
AND
ENVIRONMENTAL
PROTECTION
1.
WARNING AND FCC INFORMATION
The Nine Eagles Galaxy Visitor 2
is
not a
tOy
.Children under
14
years old are strictly
forbidden from flying this aircraft.
You must fly this aircraft safely.
When
flying
or
preparing
the
aircraft
for
flight
you should
strictly
adhere
to the
instructions. Ensure that yours and
other
people's hands,and face are kept away
from the rotating parts.
Always unplug the aircraft battery before turning
off
the transmitter when the aircraft
is stopped.
Aircraft uses a lithium polymer battery.Always adhere to operating instructions for
the lithium polymer battery to avoid accidents such as combustion or explosion.
Always use a genuine Nine Eagles
charger
and
power
adaptor
designed
for
this
aircraft.
Always unplug the charger and adapter from the electrical outlet after completion
of
each charge.
Never
overcharge
the battery,avoid use in
direct
sunlight
or
near
fire.
Ensure
the
battery is kept dry.
Never
store
or
transport the battery with metal objects.
Never
disassemble
the battery.
Never
use
wet
hands when in contact with the charger,battery
or
power
adaptor
.
When you fly the aircraft,keep distance from
other
electrical equipment,magnetic
objects,wireless devices.etc,to avoid interference and accidents.
FCC
statement
1.
This device complies with Part 15
of
the FCC Rules. Operation is subject to the
following two conditions:
O·
This device may not cause harmful interference.
8.This
device
must
accept
any
interference received, including interference that
may
cause
undesired operation.
2.
Changes
or
modifications
not
expressly
approved
by the party responsible
for
compliance could void the user's authority to operate the equipment.
NOTE:
This
equipment
has
been tested and found to
comply
with
the
limits
for
a
Class B
digital
device,
pursuant
to
Part
15
of
the
FCC
Rules.
These
limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in a
residential installation.
