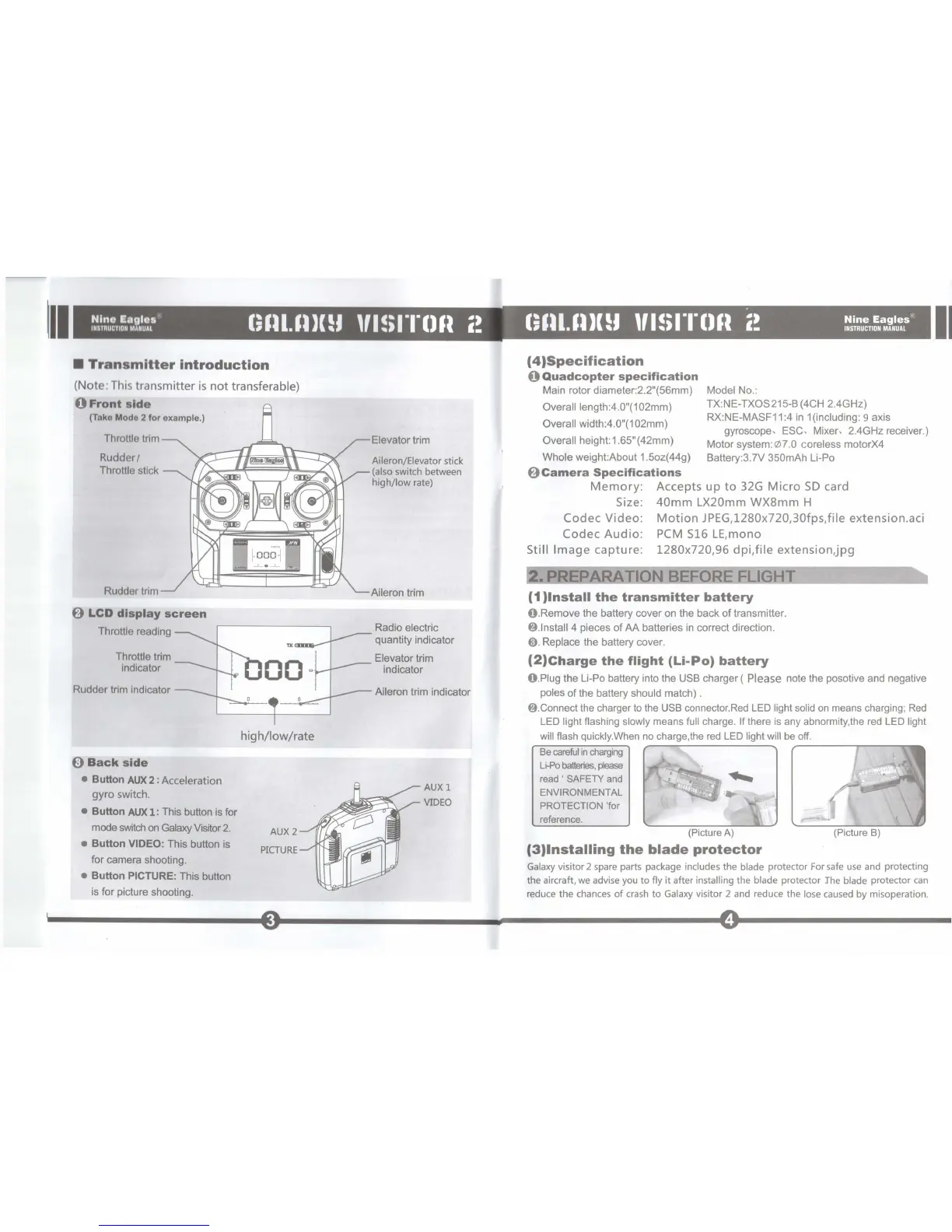

II
•
Transmitter
introduction
(Note: This
transmitter
is
not
transferable)
o
Front
side
(Take Mode 2
for
example.)
Throttle trim
Rudder!
Throttle stick
Rudder trim
f}
LCD
display
screen
Throttle reading
Throttle trim
indicator
Rudder trim indicator
€)
Back
side
• Button
AUX
2 :
Acceleration
gyro
switch.
• Button
AUX
1: This button is for
mode switch
on
Galaxy Visitor
2.
• Button VIDEO: This button is
for camera shooting.
• Button PICTURE: This button
is for picture shooting.
TX
000
high/low/rate
AUX 2
Elevator trim
Aileron/Elevator stick
(also
switch between
high/low
rate)
Aileron trim
Radio
electric
quantity indicator
Elevator trim
indicator
Aileron trim indicator
AUX 1
VIDEO
(4
)Specification
o
Quadcopter
specification
Main rotor diameter:2.2"(56mm)
Overalilength:4
.0"(102mm)
Overall width:4.0"(1 02mm)
Overall
height
1.65" (42mm)
Whole
weightAbout
1.50z(44g)
f}
Camera
Specifications
Model No
.:
TX:NE-TXOS 215-B (4CH 2.4GHz)
RX:NE-MASF11:4
in
1 (including: 9 axis
gyroscope, ESC, Mixer, 2.4GHz receiver.)
Motor system:
0 7.0 coreless motorX4
Battery:3.7V
350mAh Li-Po
Memory
:
Accepts
up
to
32G
Micro
SD
card
Size:
40mm
LX20mm
WX8mm
H
Codec
Video
:
Motion
JPEG,1280x720,30fps,file
extension
.aci
Codec
Audio
: PCM S16 LE,mono
Still
capture
:
1280x720,96
dpi,file
extension,jpg
..........,
:-HT
-=-
_~
___
~..:J
=='
(1
)Install
the
transmitter
battery
O.Remove
the battery cover on the back
of
transmitter.
8.lnstall
4 pieces
of
AA
batteries
in
correct direction.
@)
. Replace the battery cover.
(2)Charge
the
flight
(Li-Po)
battery
O .Plug the Li-Po battery into the USB charger ( Please note the posotive and negative
poles
of
the battery should match) .
8.
Connect the charger
to
the USB connector.
Red
LED light solid
on
means charging;
Red
LED light flashing slowly means full charge. If there is any abnormitY,the red LED light
will
flash quicklyWhen no charge,the
red
LED light will be off.
Be
careful
in
charging
1 r "
rr---~r----T"""'i
Li-Po
batteries
,
please
read' SAFETY
and
ENVIRONMENTAL
PROTECTION
'for
reference.
(Picture A)
(3)lnstalling
the
blade
protector
(Picture
B)
Galaxy
visitor 2
spare
parts
package
includes the blade protector
For
safe
use
and
protecting
the aircraft,
we
advise
you
to fly it after installing the blade protector
The
blade protector
can
reduce
the
chances
of
crash
to
Galaxy
visitor 2
and
reduce the
lose
caused
by misoperation.
