9
3.3. Installation Instructions
3.3.1 Pre-requirements
Equipment necessary for the installation of your heat pump:
① Power supply cable suitable for the unit’s power requirements and compliant with your local
regulations.
② A By-Pass kit, sufficient PVC tubing suitable for your installation, as well as PVC , PVC
adhesive and sandpaper.
③ A set of wall plugs and expansion screws suitable to attach the unit to your support or base.
④ We recommend that you connect the unit to your installation by means of well supported
flexible PVC pipes to reduce the transmission of vibrations.
⑤ Suitable fastening studs may be used to raise the unit.
3.3.2 Heat Pump Installation
① The heat pump must be fixed using bolts (M10) to a concrete foundation or suitable brackets.
The concrete foundation must be solid; the brackets must be strong enough and treated against
corrosion.
② The heat pump needs a water pump (Supplied by the user). Max. lift 30ft;

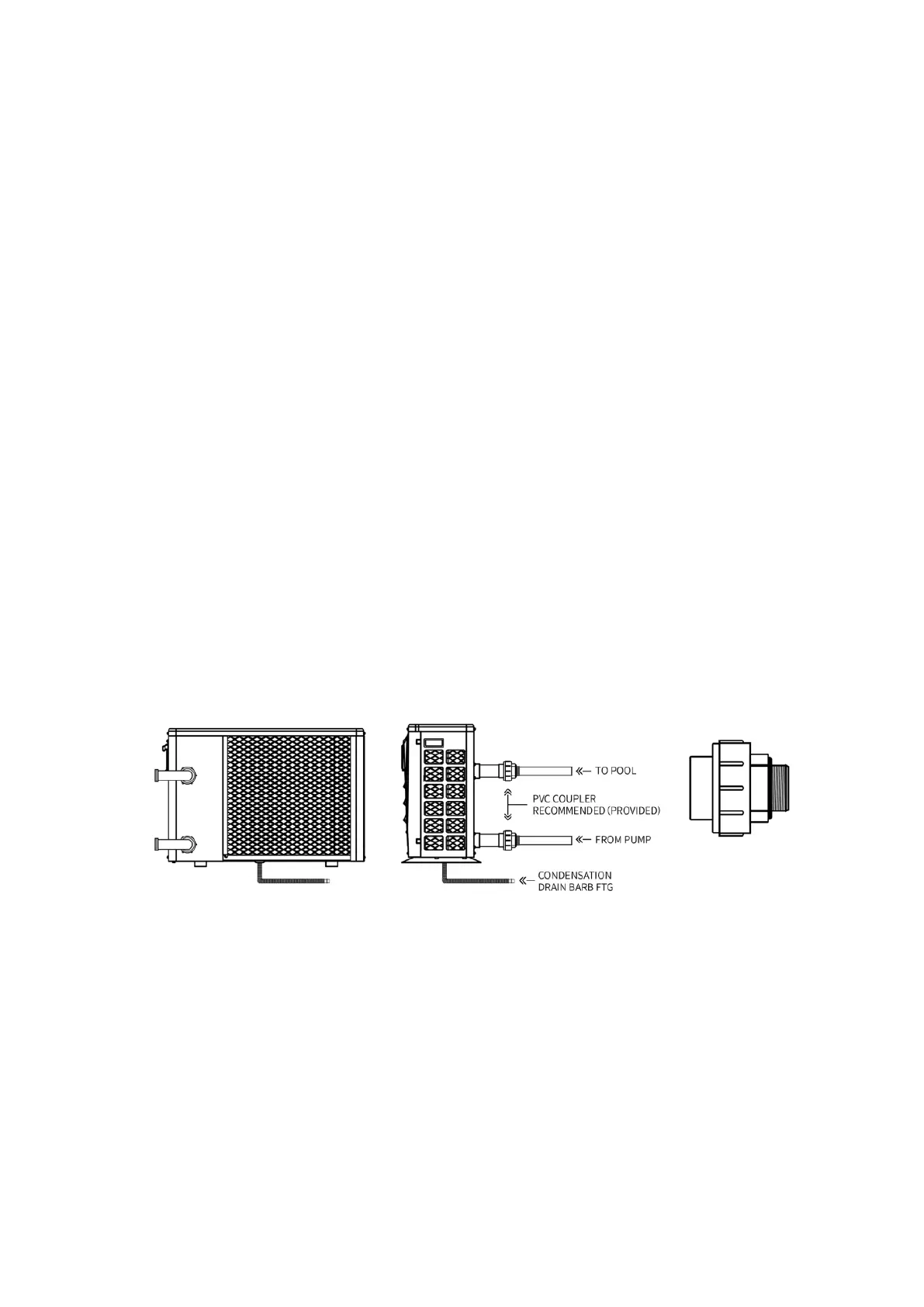

③ When the heat pump is running, there will be condensate water discharged from the bottom
that must be properly managed and directed away from the heat pump. Please insert the
drainage tube (accessory) into the hole and clip it in properly, then connect a pipe to drain the
condensate water away. Install the heat pump, at least 3” off the ground with solid,
water-resistant pads, then connect the drainage pipe to the opening located under the heat
pump.
3.3.3 Location and Size
Please comply with the following rules concerning the choice of heat pump location.
① The unit’s location must be easily accessible for convenient operation and maintenance.
② It must be installed on the ground, fixed ideally on a level concrete floor. Ensure that the
floor is sufficiently stable and can support the weight of the unit.
③ A water drainage device must be provided close to the unit in order to protect the area
where it is installed.
④ If necessary, the unit may be raised by using suitable mounting pads designed to support its
weight.
⑤ Check that the unit is in a properly ventilated area, that the air outlet is not facing the
windows of neighboring buildings and that the exhaust air cannot return to the heat pump. In
To Next Page
