8 / 14
Assembly of the rest of the components (except IV-11tubes)
Solder the rest of the components to the board, except IV-11 tubes. The polarity of the

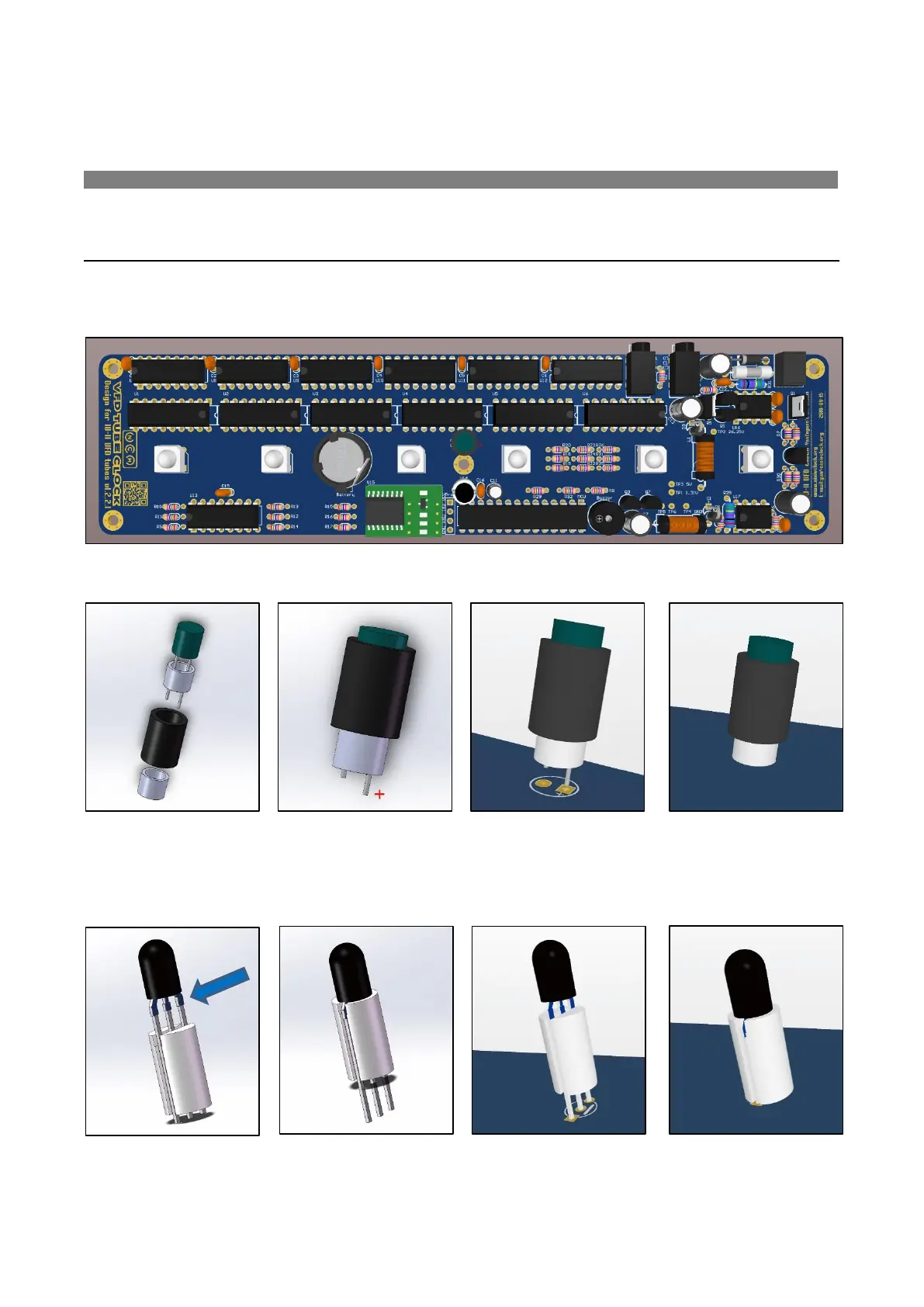

components must match the print on the board. The result should now look like this:
Ambient light sensor and IR receiver need special attention during installation:
⚫ Ambient light sensor
The sensor needs to first go through a plastic spacer (Φ5mm x 3mm), then go through the
rubber sleeve and plastic spacer. Next, solder it on the board and match the
placement and polarity following the pictures above.
⚫ IR receiver
The receiver needs to first go through a plastic spacer (Φ5mm x 11mm), then solder it on
