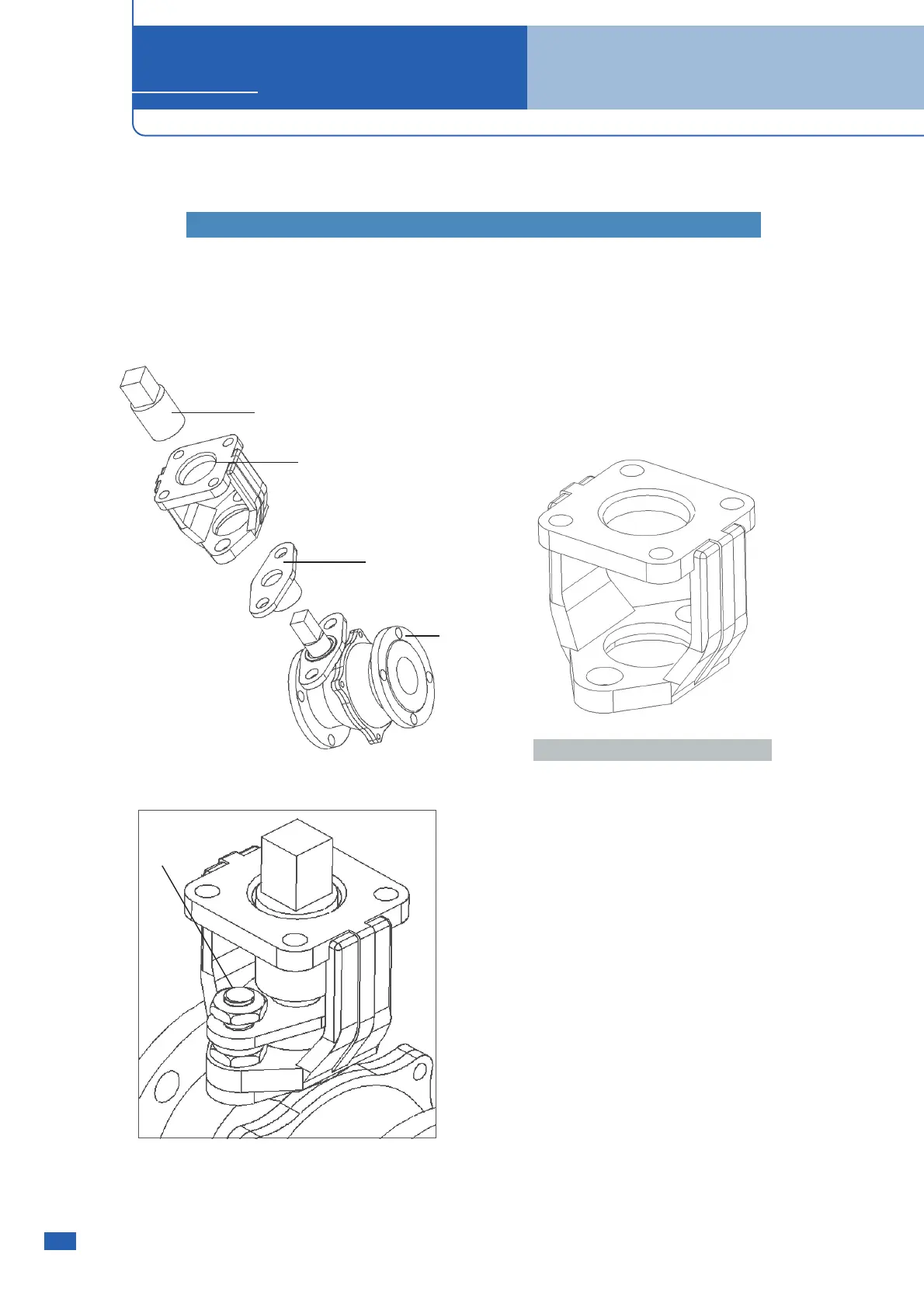

NOAH ACTUATION SA Series - 11. Actuator and Valve Assembly; Ball Valve Assembly Steps

▼
Stem
▼
Bracket
▼
Grand
▼
Ball Valve
11
SA
SERIES MANUAL
※ If the Valve is supplied by the user, the delivery is available after NOAH ACTUATION mounts
the actuator to the valve and calibrates the limit switch settings. NOAH ACTUATION can also
provide a complete valve mounting kit if required.
11-2-1
Should a mounting kit be required, proper valve dimen-
sional information must be provided to ensure a proper fit.
11-2-2
In general, when a Mounting kit is designed
For the Ball Valve, a packing gland is installed
to prevent any valve stem leakage and an
adjustable bolt and nut assembly is installed to
tighten the valve stem packing. This will com-
press the stem packing and is adjusted as
required. Caution, over tightening of the pack-
ing gland will increase the torque required to
turn the valve and may cause the actuator
to stall.
Example of a fabricated bracket
11-2 Ball Valve Assembly
Bolt
▼
