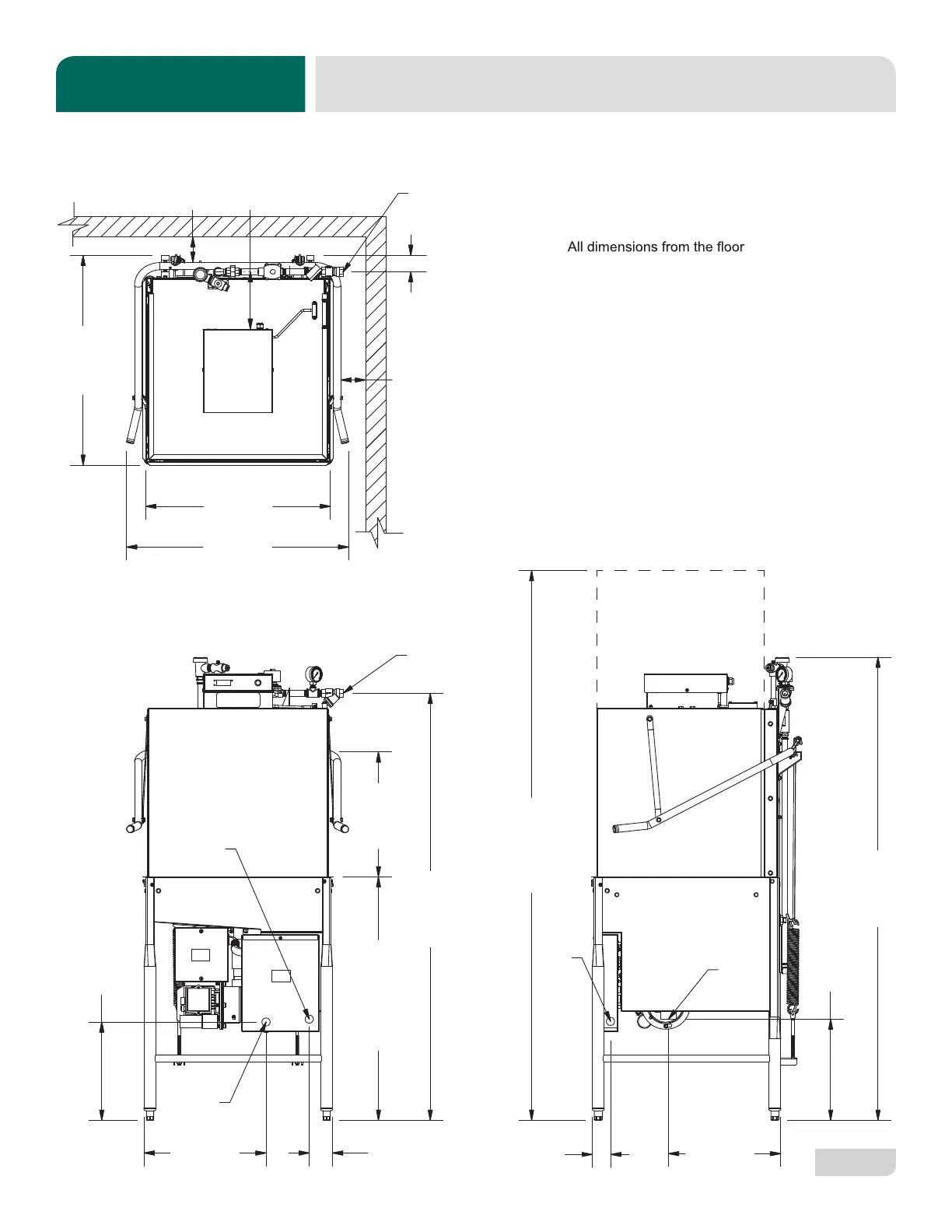

Noble HT-180EC - SPECIFICATIONS; DIMENSIONS AND INSTALLATION SPACE

07610-004-92-22-A
2
LEGEND
A - Water Inlet (1/2” NPT)
B - Electrical Connection Point
C - Drain (1 1/2” NPT)
can be increased 1 1/8" using the
machine's adjustable feet.
8
[204 mm]
25 1/4
[641 mm]
30 5/8
[779 mm]
29
[737 mm]
59
[1499 mm]
34
[864 mm]
TABLE HEIGHT
2 1/4
[58 mm]
13 1/4
[337 mm]
3 1/4
[81 mm]
16 7/8
[428 mm]
A
B
C
15 1/2
[394 mm]
2 1/8
[55 mm]
64
[1625 mm]
76
[1930 mm]
DOOR OPEN
14
[355 mm]
C
B
17 1/4
[438 mm]
CLEARANCE
A
4
[102 mm]
MIN
4
[102 mm]
MIN
SPECIFICATIONS
DIMENSIONS
