Noblelift PSE12BD - 2. DESCRIPTION OF THE STACKER; a. Overview of the main components

4

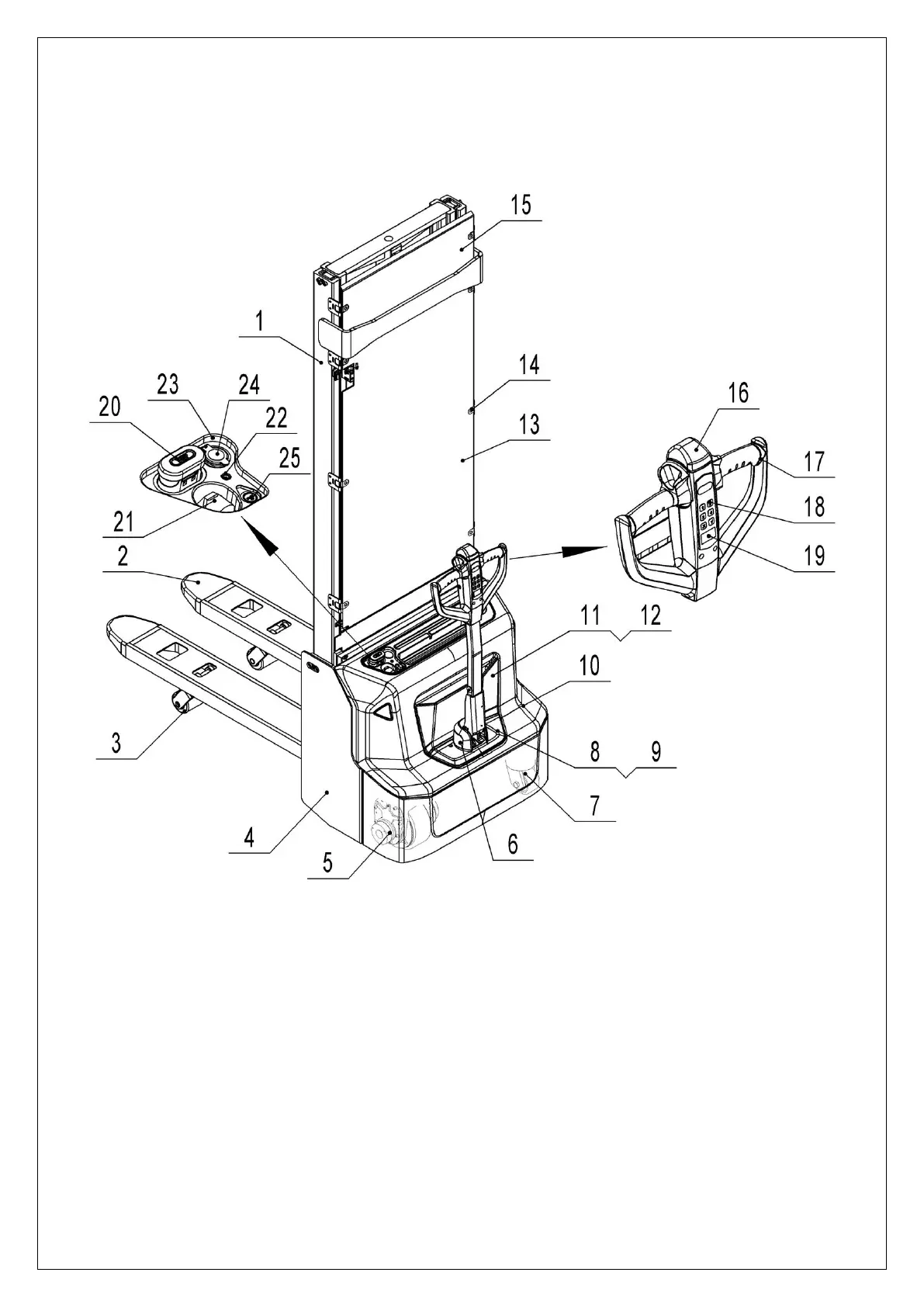

Fig. 1: Overview main components
2. DESCRIPTION OF THE STACKER
a. Overview of the main components
1. Mast
2. Fork carriage
3. Load roller assembly
4. Chassis
5. Driving wheel assembly
6. Protective cover (tiller)
7. Steering roller assembly
8. Cover
9. Cover
10. Main cover
11. Cover
12. Cover
13. Protective board
14. Buckle
15. Protective board
16. Belly button
17. Tiller
18. Pin-code panel
19. LCD
20. Emergency button
21. Spring cord
22. Charging LED
23. Panel
24. USB port (PSE12ND)
25. Button switch (PSE12ND)
