Noblelift PSE12BD - c. Description of the safety devices and warning labels

8
5.8
Max. gradeability, laden/ unladen
%
5 / 10
5.10
Service brake
Electromagnetic
Electric
6.1
Drive motor rating S2 60min
kW
0.65
6.2
Lift motor rating at S3 7.5%
kW
2.2
6.3
Battery acc. to DIN 43531/35/36 A, B, C,
no
no
6.4
Battery voltage, nominal capacity K5
V/Ah
2 x 12 / 85
1)
24 / 60
6.5
Battery weight
kg
2 x 27
2)
19
6.6
Energy consumption acc: to VDI cycle
Kwh/h
0.66
Other
8.1
Type of drive control
DC
8.4
Sound level at driver’s ear acc. to EN
12053
dB(A)
<70
1) Option：2x12V/106Ah
2) 2x12V/106Ah : 2 x 34kg
3) when operate the fork and pallet at the same time: Load Capacity / rated load (mast lift) < Load
Capacity / rated load (support arm lift)
4) Load section lowered / Load section raised
Type
Lowered mast height
h1(mm)
Free Lift height
h2(mm)
Lift height
h3(mm)
Extended mast height
h4(mm)
One stage
mast
1970
1514
1514
1970
2370
1914
1914
2370
Two stage
mast
1970
-
2814
3377
2120
-
3114
3677
2320
-
3514
4077
c. Description of the safety devices and warning labels (Europe
and other, except USA)
A Crane hook label
B Warning decal: Do not step under or on the forks
C Residual lift capacity sticker
D Never reach through
E Identification plate (ID-plate)
F Sticker to read and follow these instructions
G Sign of filling point
H “No passengers” decal
The truck is equipped with an emergency switch (20) which
stops all lifting-, lowering-, driving- functions and engages
the failsafe electromagnetic brake when it is pressed. By
pull this button out; the truck can be operated after the
controller checked the functions. Before operating, type the
password on pin-code panel and press the √ button. To
prevent against unauthorized access, press emergency
switch (20) or press the X button of pin-code panel.
The truck is equipped with a safety (belly) button (16)

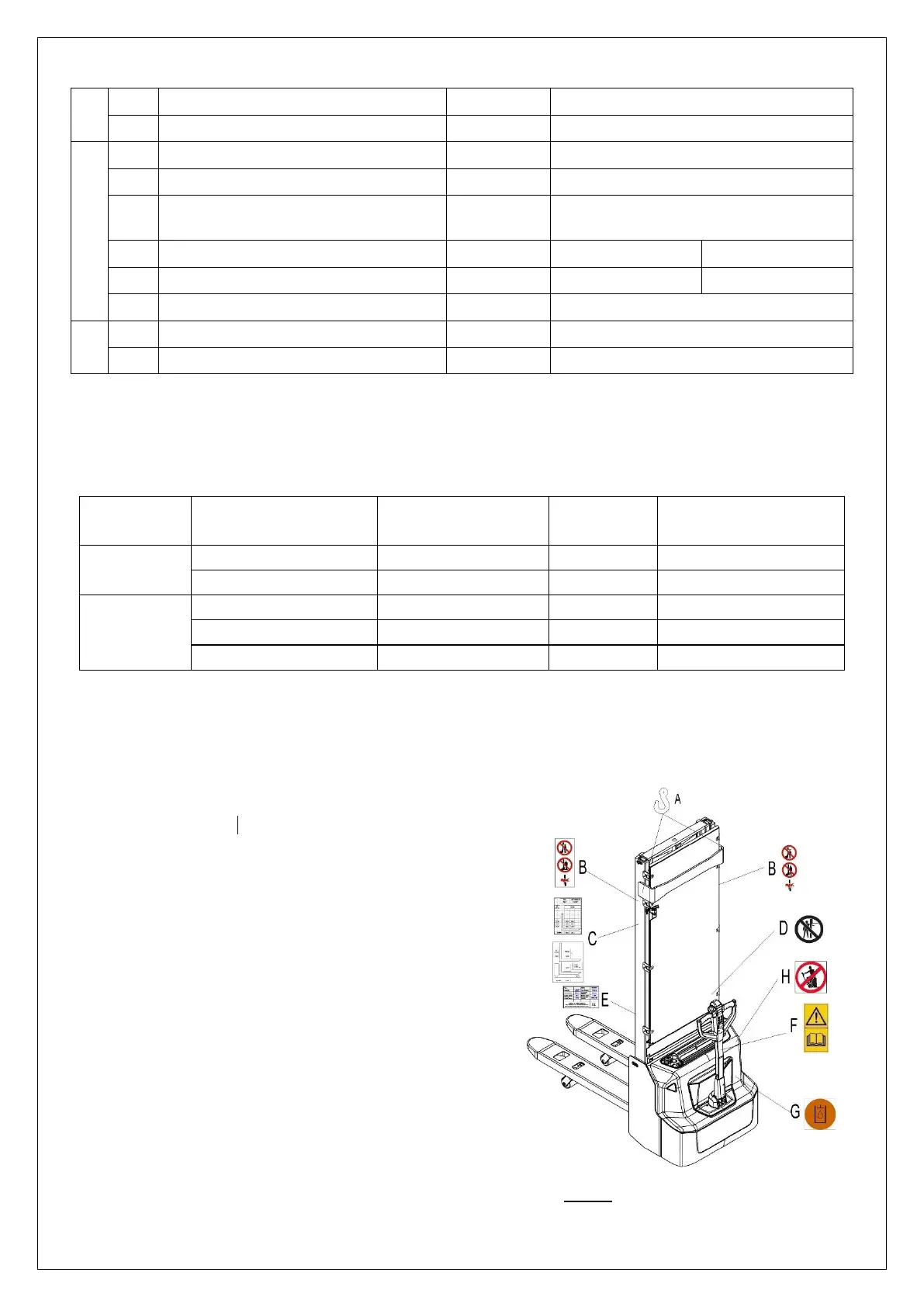

Fig. 3: Safety and warning labels
