6.) Standby LED Illuminates when the charger is in Standby Mode, the charger
is not charging or providing any power to the battery.
7.) Repair Mode LED When selected, a red LED will illuminate and flash.
8.) «Press and Hold» Mode LED Mode button must be pressed and held for 3
seconds to enter the mode.
9.) Mode LED Indicates the Charge Mode the charger is currently in. Push the
MODE button to cycle through charge Modes.
5
2
2
6
8
3
2
4
7

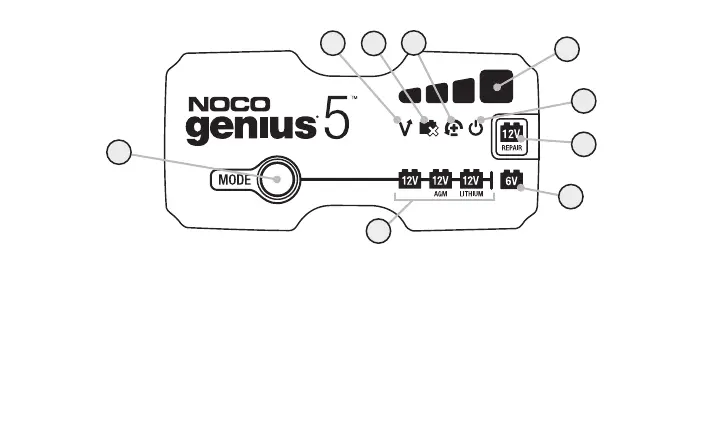

1.) Mode Button Push to cycle through charging Modes.
2.) Overvoltage Error LED Illuminates solid Red; Battery Voltage is above
Protect voltage.
3.) Bad Battery Error LED Illuminates solid Red when connected battery will
not hold a charge.
4.) Reverse Polarity Error LED Illuminates solid Red when reverse polarity
is detected.
5.) Charge LED indicates the connected battery(s) state-of-charge.
1
9
