Nokia 101 Service Manual

Nokia 101 (RM-769)
Nokia 100 (RH-130/RH-131)
L1L2 Service Manual
10
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rsion 1 .0

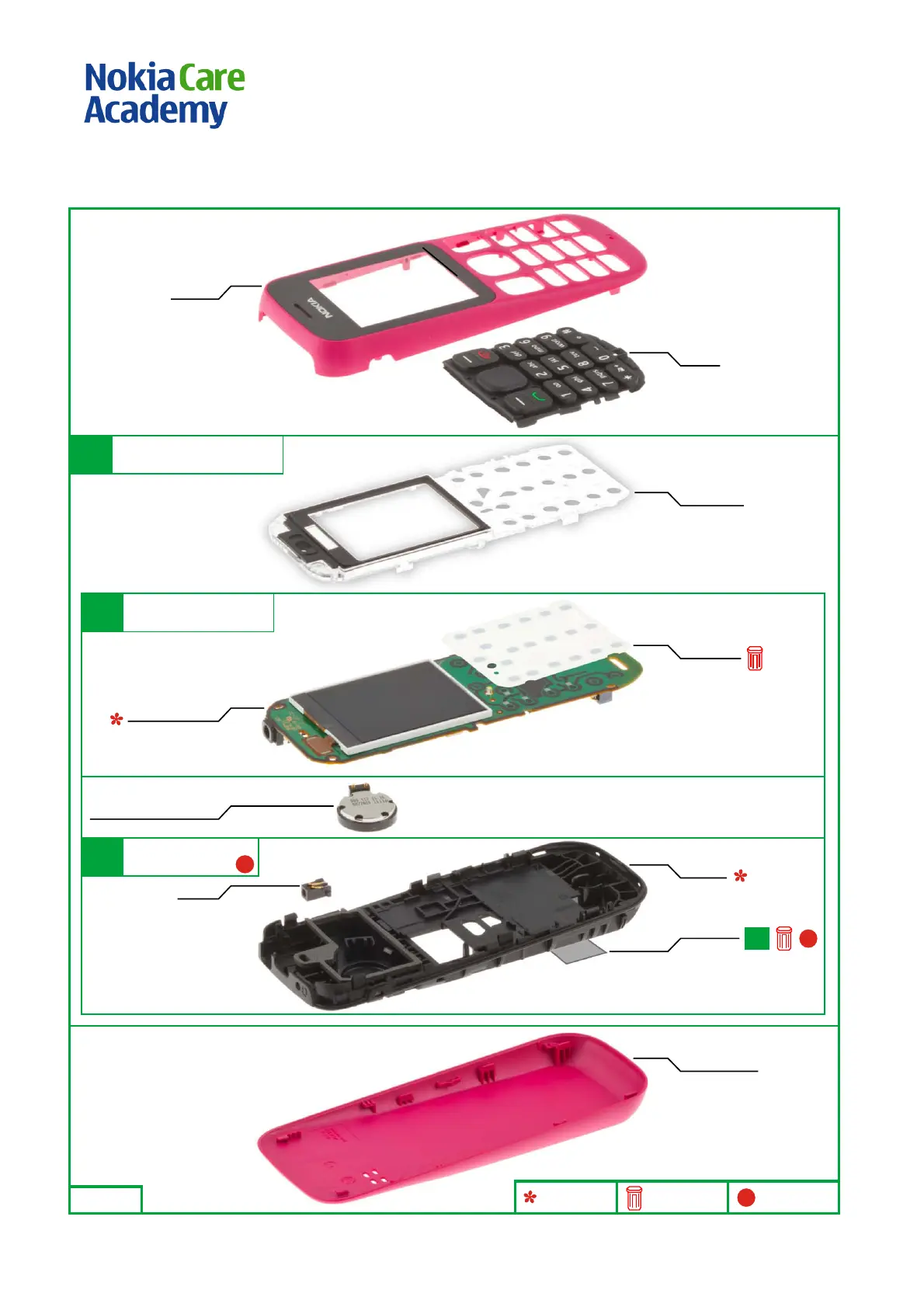

7. EXPLODED VIEW NOKIA 100 RH-130 / RH-131
Ver. 1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
L3
L3
L3
A1
ATO SWAP PACKAGE
(I0003, A2, I0007, A3)
A2
A2
LIGHT SWAP PACKAGE
(I0004 - I0006)
A3
D-COVER ASSEMBLY
(I0008 - I0009)
A-COVER
I0001
LIGHT SWAP PWB
I0005
EARPIECE/SPEAKER/VIBRA
I0007
DC JACK
I0008
KEYMAT
I0002
LIGHT GUIDE
I0003
DOMESHEET
I0004
D-COVER
I0009
BATTERY COVER
I0010
TYPE LABEL
I0006
