Nokia 101 Service Manual

Nokia 101 (RM-769)
Nokia 100 (RH-130/RH-131)
L1L2 Service Manual
13
Co nf id e nt ial | Co p yrig ht © 2011 Nokia | A ll rights reserved
V e rsion 1 .0

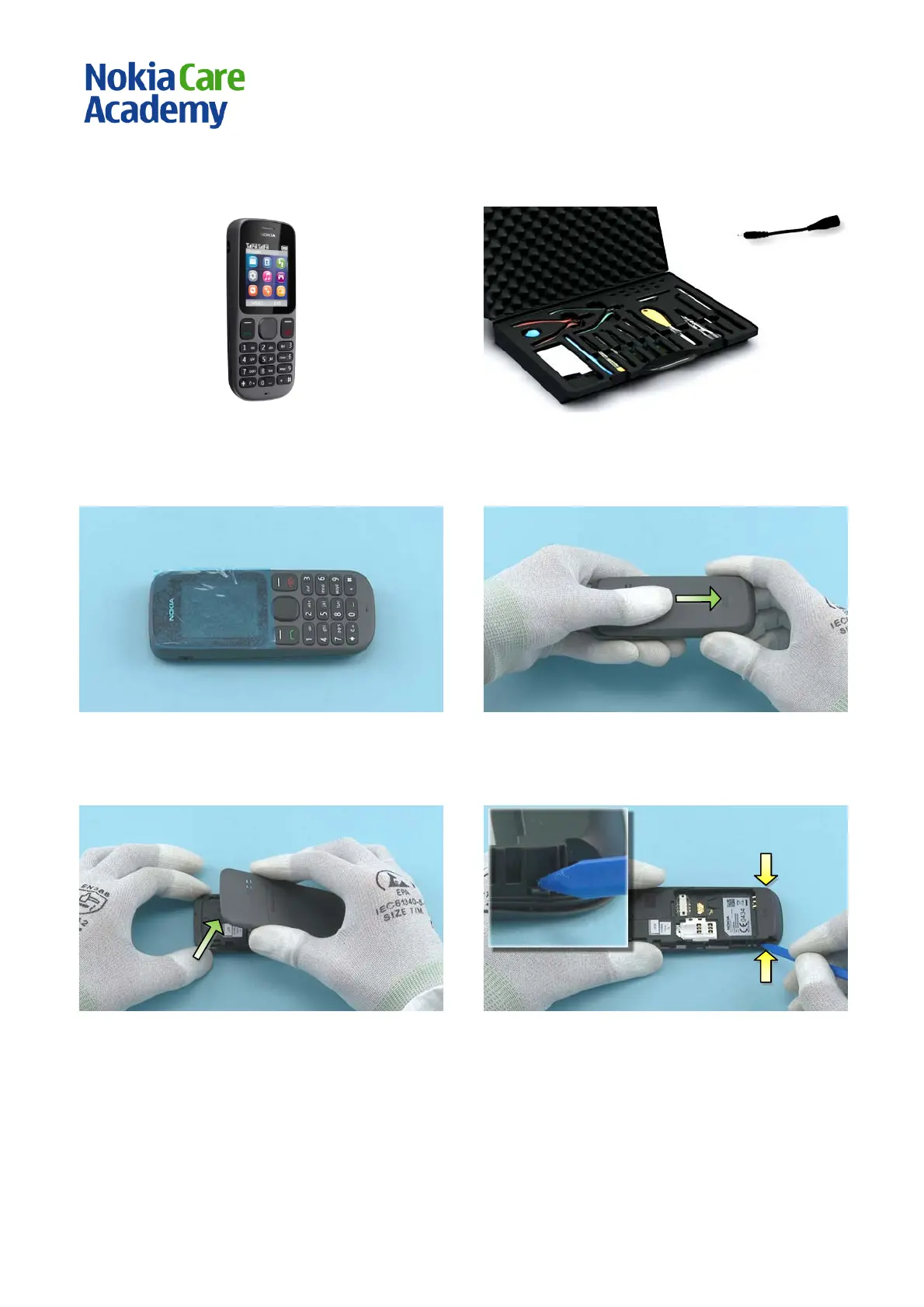

10. DISASSEMBLY INSTRUCTIONS
1) Nokia 101 disassembly. Note that the device used
for the disassembly picture story in this document is
the dual SI M version, Nokia 101.
2) You must use the Nokia Standard Toolkit version
2. You will also need a DC plug.
3) Protect the A-C OVER with protec tive film.
4) Slide the BATTERY COVER open.
5) Flip the BATTERY COVER open from the top side
and remove it.
6) Use the sharp end of the SS-93 to release the two
hooks on the bottom side.

Nokia 101 Specifications

General

Display type	TFT
Display diagonal	1.8 \
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	- MB
Flash card support	Yes
Maximum memory card size	16 GB
Rear camera resolution (numeric)	0 MP
Headphone connectivity	3.5 mm
Data network	GSM
SIM card capability	Dual SIM
2G bands (primary SIM)	900, 1800 MHz
2G bands (secondary SIM)	900, 1900 MHz
Multimedia Messaging Service (MMS)	-
Ringer type	Polyphonic
Audio formats supported	MP3
Polyphonic rings quantity	32
Form factor	Bar
Personalization	Icons, Menu, Themes
Phonebook capacity	500 entries
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes
Operating system installed	-, 30
Product color	Black
Battery type	BL-5CB
Talk time (2G)	6.7 h
Battery capacity	800 mAh
Standby time (2G)	600 h
Continuous audio playback time	26 h
Subscription type	No subscription

Weight and Dimensions

Depth	14.9 mm
Width	45.5 mm
Height	110 mm
Volume	73 cm³
Weight	71 g
